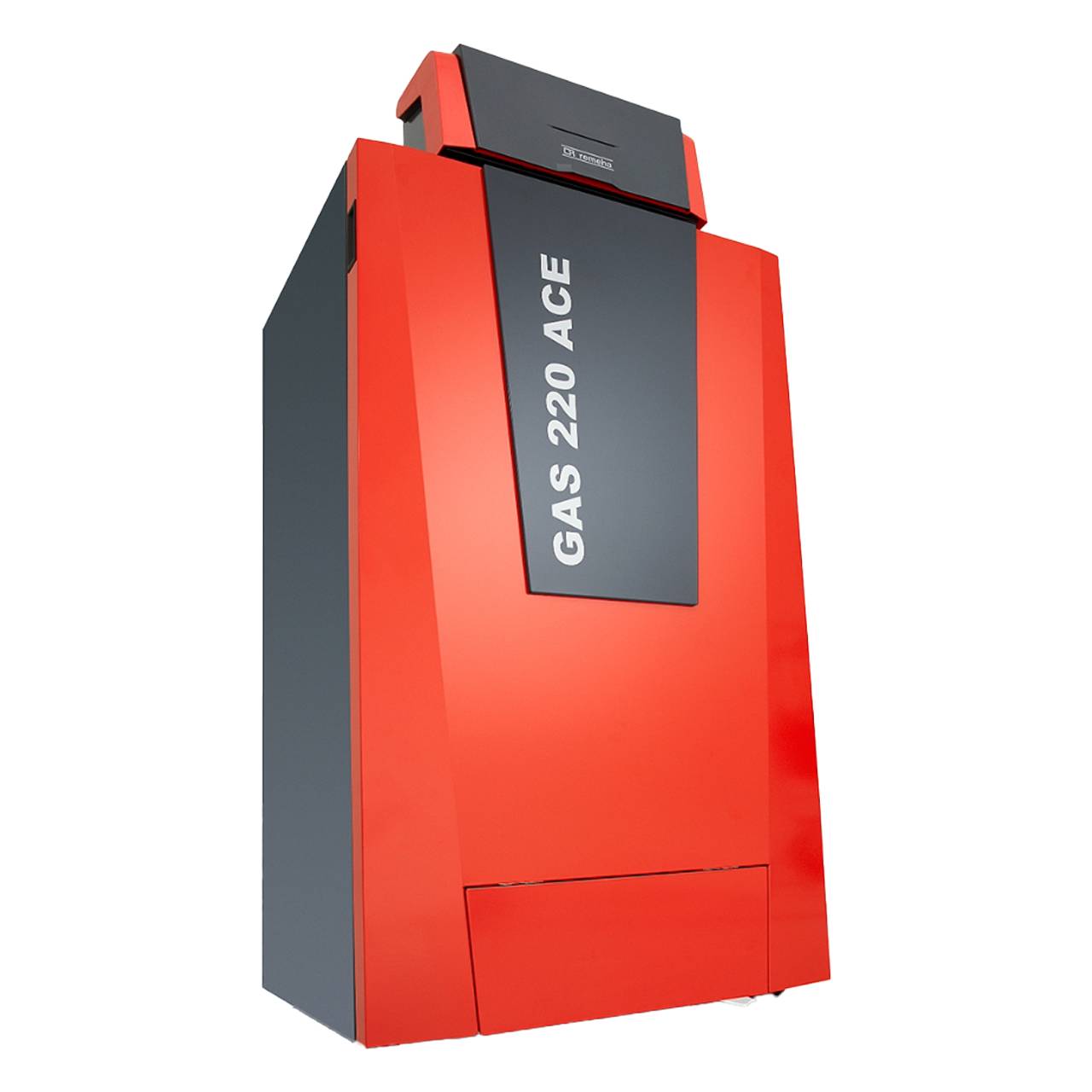

Gas 220 Ace - Gas Boiler

Verified by manufacturer 1 day ago

Gas 220 Ace 160

BAXI HEATING UK LIMITED Variant:

Free-standing, gas fired, high-efficiency condensing boiler range.

Jump to:
0330 678 0140 Website

Application

Suitable for commercial applications.

Description

The Gas 220 Ace is a premium floor-standing boiler that exceeds expectations in performance capability and design simplicity. Thanks to an innovative design, based on an aluminium monobloc platform, this boiler is effortlessly lightweight, manoeuvrable and adaptable to space-saving configurations.

Features and benefits:

  • Wide range of outputs - available in 160, 200, 250 and 300 kW models.
  • Modular design for any space - all connections and pipework enter the top so Gas 220 Ace models can be positioned side to side or back to back.
  • Stable and reliable design - the monobloc heat exchanger is built from a single piece of aluminium which makes it inherently stable and reliable.
  • Lightweight and manoeuvrable - supplied with integral wheels so it can be delivered through a standard door and lifts, plus easy to manoeuvre within plant rooms.
  • Total control as standard - a specially designed microprocessor is at the heart of the control system with time and temperature controls supplied as standard, set and controlled by the end user.
  • High efficiency up to 97.7%.

General information

Color

Red

Black

Finish

Smooth

Material

Aluminium

Shape

Rectangle

Length

657 mm

Width

800 mm

Height

1662 mm

Warranty description

Seven year

Uniclass

Pr_60_60_08_34 Gas-fired condensing boilersPrimary

CAWS

T90/312 Boilers, gas-fired condensing

Specification data - Gas-fired condensing boilers

Classification data

Standards

-

Boilers with heat input greater than 70 kW but not exceeding 1000 kW

To BS EN 15502-1 and BS EN 15502-2-1.

Output

152.1 kW (80/60℃); 161.6 kW (50/30℃).

Seasonal efficiency (gross calorific value (minimum))

95.9%.

NOx emissions (maximum)

35 mg/kW·h.

Guidance for specification option:

  • Dry, 0% O₂ - Class 6.
  • NOx Annual Emissions BREEAM (EN 15502) – NG: 22 mg/kW·h.

Manufacturer guidance

NOx Annual Emissions EN 15502 – NG.

Mounting

Floor mounted.

Operating pressure

5 bar (maximum); 0.8 bar (minimum).

Operating temperature

20–90℃.

Heat exchanger

Aluminium.

Fuel

Natural gas.

Guidance for specification option:

  • Standard fuel.
  • Fuel consumption (maximum): 16.5 m³/h.
  • Gas connection size: 1" male BSP.
  • Gas pressure: 17–25 mbar.

LPG.

Guidance for specification option:

  • Optional fuel adjustment.
  • Fuel consumption (maximum): 6.3 m³/h.
  • Gas connection size: 1" male BSP.
  • Gas pressure: 37–50 mbar.

Electrical supply type

Single phase.

Guidance for specification option:

230 V, 50 Hz.

Accessories

-

Manufacturer guidance

Consult manufacturer for details and insert requirements or omit.

Power consumption

5.3–275 W.

Input

0–10 V d.c.

Manufacturer guidance

Modulating input.

Fuse rating

6.3 amps.

Ingress protection (IP) rating

IP X1B.

Overall sound power level

67 dB.

Manufacturer guidance

Sound power levels (Lwa) indoors.

Dimensions

800 x 1662 x 657 mm.

Manufacturer guidance

Overall dimensions (width x heigh x depth).

Weight

235 kg.

Manufacturer guidance

Weight (dry) including packaging.

Sustainability data

Contains Red List materials

No

Country of product manufacture

Netherlands

Manufacturing plant location

Material

Aluminium

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

The boiler is largely recyclable:

  • Aluminium, steel, and copper components can be recovered.
  • Electronic parts require specialist recycling.
  • Remeha supports responsible disposal through certified waste handlers.

Expected Life

20 year
