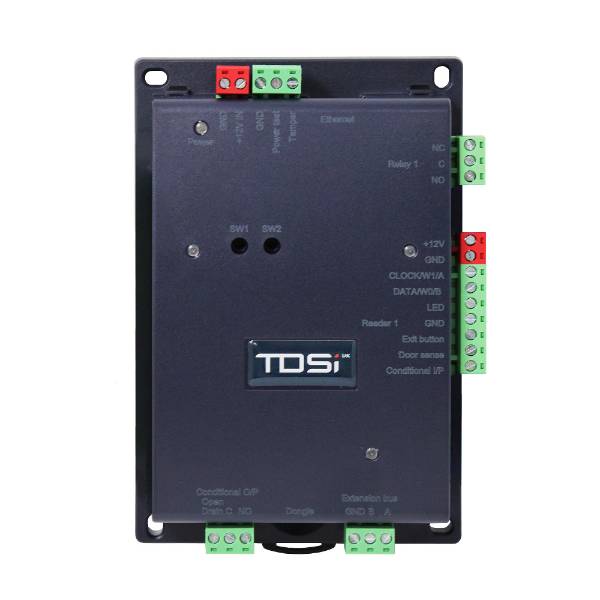

GARDiS Web Embedded Controller
Compare variants

GARDiS Web Embedded Controller

GARDiS 1

TDSi Variant:

Web embedded access controller.

Jump to:
+44 (0)1202 723535 www.tdsi.co.uk

Application

Door Controller for GARDiS Access Control System complete with Access Control Software built-in allowing for quick and easy setup and administration for single site systems.

Description

GARDiS is the a user-friendly, cyber-secure, web-embedded access controller, developed by TDSi. Easy to install and no additional software is required.


The intuitive design of the GARDiS controller means it requires minimal training to install. Fully expandable and capable of integration with Simons Voss and Assa Abloy wireless locks, the GARDiS controller also supports all standard reader output formats.


Features and benefits:

  • Easy installation.
  • One, two or four door models.
  • Embedded web server.
  • Fits up to ten wireless locks.
  • Up to ten slave units.
  • Optional eight input/output modules.
  • Up to 5000 users.
  • Universal reader decoder.
  • Multi-protocols RS485 Wiegand and Clock&Data.
  • Anti-pass back, anti-time back, transit delaying.

General information

Color

Black

Finish

Black

Material

Polycarbonate

Shape

Square

Length

170 mm

Width

116 mm

Height

40 mm

WarrantyDescription

Three year

Covered; Material defects in design, materials & workmanship excluding wear and tear.

Uniclass

Pr_75_30_30_03 Access control unitsPrimary

CAWS

W90/130 Electronic access control system

W90/130 Electronic access control system

Specification data - Access control units Enhanced data

Enclosure

-

Material and finish

Polycarbonate.

Colour

Black.

Type of operation

Networked.

Number of doors per controller

One.

5002-6001.

Number of users (minimum)

5000.

Interfaces

-

Door lock relays

Manufacturer's standard.

Control relay: 1 A / 12 V – 1 A / 24 V.

One used per installed door.

Two outputs.

Readers

Manufacturer's standard.

Up to two TDSi readers per reader channel in a read-in/ read-out configuration.

One reader per door equipped with industry-standard clock & data.

One reader per door equipped with Wiegand multiformat,.

One reader per door equipped with RS-485 output.

Control features

-

Anti-passback

Timed and true.

Accessories

Consult manufacturer for details.

None.

GARDiS 4+.

Eight inputs/ eight outputs module.

Wireless IP locks.

Environmental information

Country of material origin

France

Country of product manufacture

France

Recyclability

ABS case widely recyclable, circuit board can be removed and recycled as WEEE.

Recycled content

0 %
