GameChanger - Sports Floor

Verified by manufacturer 5 months ago

Reflex Sports Ltd

Interactive LED sports flooring system.

Jump to:
BOS
+44 (0)1932 563138 Website

Application

  • Sports flooring.
  • Fitness areas.
  • Multi-use halls.
  • Event Flooring.
  • Arena Flooring.
  • Spin Studios.
  • School halls.
  • Aerobics Studios.
  • Wellness Rooms.
  • Sensory rooms.
  • Nurseries.

Description

Reflex GameChanger is an interactive LED flooring system. Unlike traditional sports flooring, the court markings can be chosen individually as illuminated lines. Reflex can provide both traditional white lines or a multi-coloured interactive version. The lux of the lighting can be varied to suit your requirements and the markings programmed to create many activities and games. Reflex can also integrate the lighting with music to create a bespoke experience. This system is not limited to traditional sports, so it can be used in fitness areas and multi-use halls, to give facilities many possible uses.


Features and benefits:

  • Fully sprung interactive flooring system.
  • Sport England and DfE compliant.
  • Individual courts can be highlighted.
  • Enables inclusivity of your facility.
  • Programmable bespoke system.
  • Surface suitable for many activities.
  • Wide range of bespoke colours.

General information

Color

Grey

Beige

Black

Blue

Brown

Show more

Material

Wood

Timber

Plywood

Polyurethane

Resin

Length

Bespoke

Width

Bespoke

Warranty description

25 year

Uniclass

Ss_30_20_10_15 Battened wood-based rigid sheet floating floor systemsPrimary

CAWS

K11/15 Battened plywood floating floor

K11/115 Battened plywood floating floor

Specification data - Battened wood-based rigid sheet floating floor systems

System performance

Certified to EN 14904 - A4.
Shock absorption: 58%.
Vertical deformation: 2.6 mm.
Ball rebound: 96%.
Slip resistance: 85.
Resistance to rolling load: ≥1500 N.

Subfloor preparation layer

Subfloor to be sound, free from cracks and no worse than SR2 tolerance.

Vapour control layer

Subfloor less than 75% RH: Union kraft paper lapped and taped; Subfloor greater than 75% RH: Reflex DPM.

Resilient layer

Reflex Cradle and Batten Undercarriage System: Granulate rubber cradles and base packers with 2 mm and 5 mm shims. Reflex treated softwood battens 45 x 47 x 1800 mm.

Guidance for specification option:

  • Granulate rubber cradles and base packers with 20 mm base polyurethane binder packed level with 2 mm and 5 mm shims for Sports Performance Cradles laid at 600 mm centres along each Reflex batten.
  • Reflex treated softwood battens laid at 400 mm centres.
  • Additional battens to be placed under any areas of heavy loading.

Thermal insulation between battens

Not required.

Kingspan Thermaflor TF70 or similar approved.

Flooring

Boarding: 18 mm OSB 4 T&G.
Floor finish: Floating GameChanger panels.
Lighting: Inlaid LED lighting fitted into the recessed GameChanger panels, as per specialist plan. Lines filled with clear polyurethane.
Finish: 2 mm Reflex Pulastic specialist LED resin, colour coat and Reflex Pulastic clear coat.

Fasteners

Screw and glue fix 18 mm OSB 4 T&G to battens.

Joint treatment

Glue fix GameChanger T&G with Reflex PUR adhesive.

Samples required

Guidance for specification option:

Samples available. Insert requirements or omit.

System accessories

None.

Access bushings.

Skirting.

Thresholds.

Linemarking.

System completion

Guidance for specification option:

The LED controllers are programmable and will be configured to meet the client's requirements.

Sustainability data

Contains Red List materials

No

Country of material origin

Netherlands

Country of product manufacture

Netherlands

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

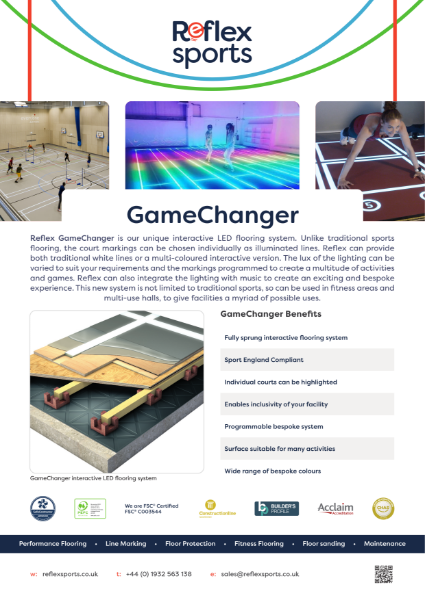

Reflex GameChanger
