Application

Sport, fitness and leisure facilities, public institutions, airports, trade fairs and exhibitions, personnel access points for companies and offices.

Description

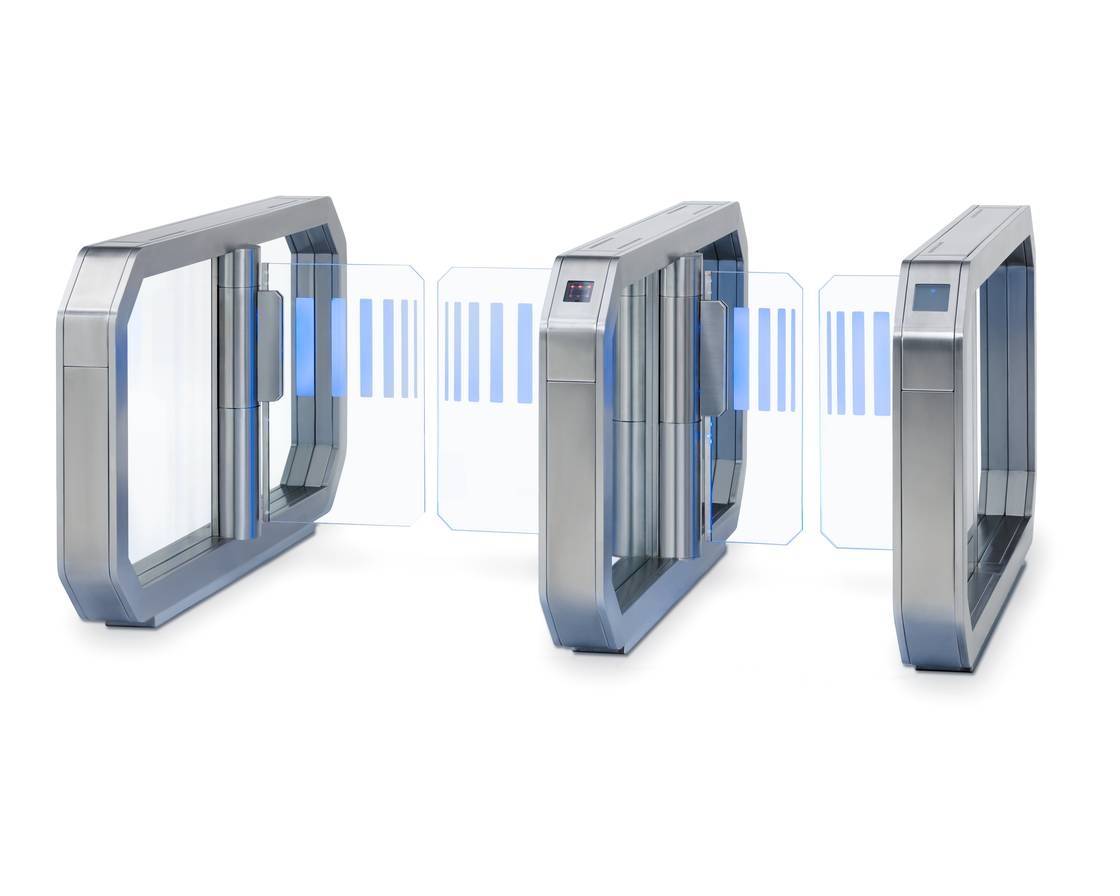

Fast-opening pedestrian gate with swivel arms; constructed from toughened safety glass, combined with a smart sensor system, ensuring immediate and reliable identity checking. Access to public areas is reliably controlled, and restricted areas are effectively protected.

Features and benefits:

  • Side glazing and swivel arms constructed from premium toughened safety glass.
  • Slimline stainless steel housing.
  • Drive unit with integrated panic function.

Application:

Sport, fitness and leisure facilities, public institutions, airports, trade fairs and exhibitions, personnel access points for companies and offices.

General information
Finish

Polished and brushed

Powder-coated, RAL

Insert colour requirement.

Features

Side glazing and swivel arms made of premium toughened safety glass, slimline stainless steel housing, drive unit with integrated panic function

Material

Stainless steel, single plated safety glass, polished or coloured plastic powder coating

Size

700 x 1800 x 550 mm

Uniclass 2015
Stainless steel half-height turnstiles (Pr_30_59_34_88)Primary
Specification data - Stainless steel half-height turnstiles
Product Reference

Galaxy Gate

Type

Swivel arm

Rotation

Two-way direction

Control unit

Card reader, operating panel, button

Finish

Polished and brushed

Powder-coated, RAL

Insert colour requirement.

Swivel arm height

860 mm

1250 mm

1500 mm

Operating temperature

5–50°C

Passage width

Insert requirement, available up to 1200 mm (dependent on arm height).

Tandem unit

Not required

Required

Passage rate

Up to 30 people per minute

Drive

Electromotor drive unit – low-maintenance, backlash-free, long-lasting, adjustable motor speeds, freely rotatable when not supplied with power

Accessories

None

Ceiling radar

Control program for external PC

Emergency open switch

External emergency open button

Galaxy box

Indication of clearance

Info screen

Light grid

Monitoring sensor

Operating status indicator

Radio remote control

Reader units

Side glazing lighting

Touchscreen

Web control panel

Standard product features

Material:

Stainless steel frame and covers, with 8 mm-thick toughened safety glass swivel arm.

IP rating:

IP20.

Electricity supply:

100–240 V, 50–60 Hz, 0.85 A.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
- 1 2.1
Download now from NBS National BIM Library
