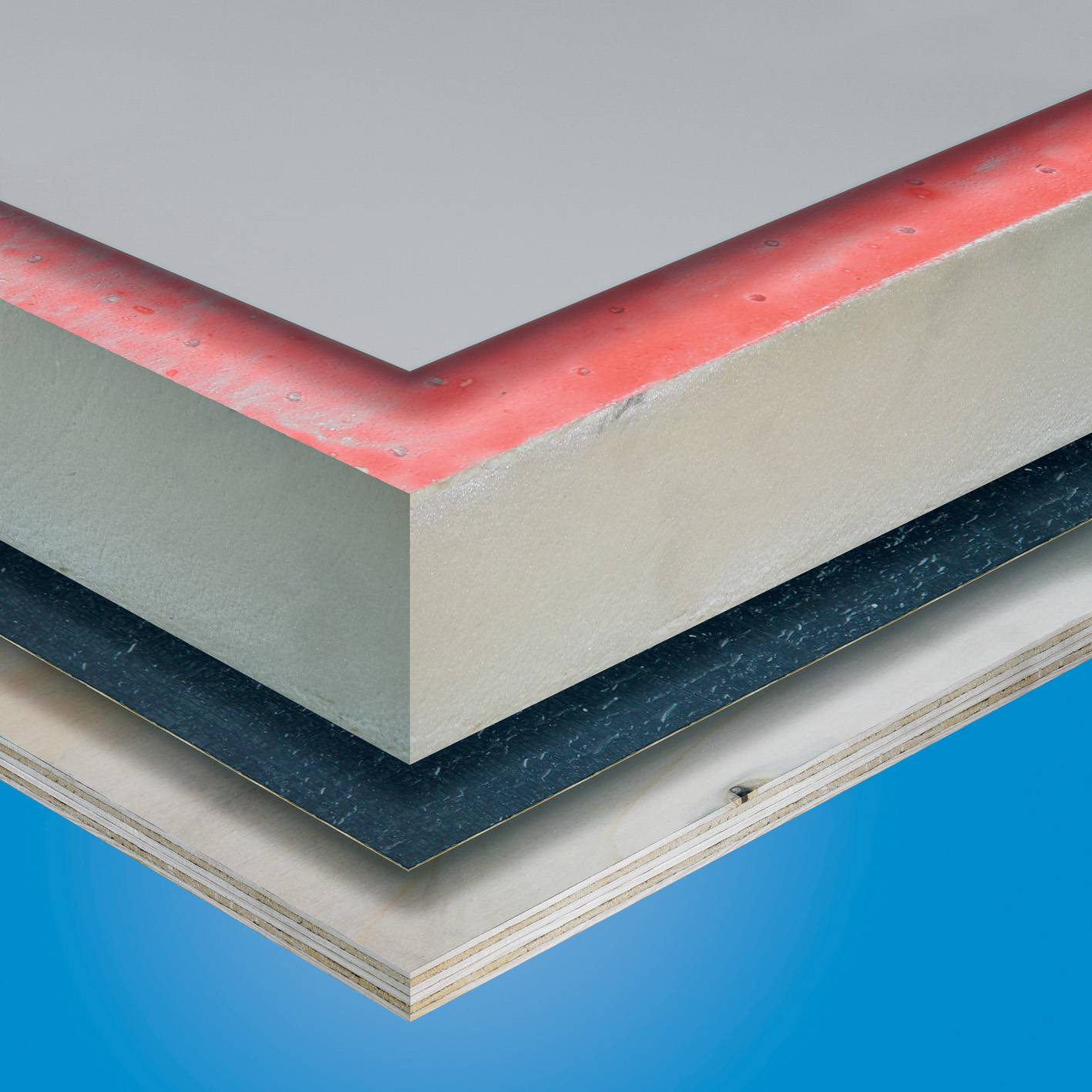

G410-EL Adhered Roof System - Sarnavap 500E

Third party certifications:
  • BBA Agrément Certificate

    Certificate type

Sika Sarnafil

PVC-P single-ply membrane for adhered and ballasted warm roofs.

Jump to:
+44 (0)1707 394444 www.sarnafil.co.uk
Description

PVC-P single-ply membrane for adhered and ballasted warm roofs.

Sarnafil G membranes are manufactured using a state-of-the-art extrusion coating process that eliminates shrinkage and plastic memory, and produces a dynamically stable membrane. In the coating process, a glass fibre carrier is coated on both sides with liquid Plastisol, prior to the application of a lacquer coating on the upper surface and laser marking of the membrane surface for identification. The unique lacquer coating eliminates the need for biocides, provides the membrane with an easy-to-clean surface and prolongs the life of the membrane by reducing plasticiser loss.

The process enables between 2 and 5% of recycled material to be used in the production of new membranes.

Performance:

Certified by BBA, in their opinion, to have a 'life expectancy in excess of 40 years' for exposed applications, with periodic maintenance as stated below.

A planned maintenance cycle, including inspections by the certificate holder at minimum intervals of five years, should be introduced if an extended service life is required. The certificate holder can advise on methods of extending the service life. This could include the use of thicker membranes, specific maintenance requirements or localized replacement and repair.

Should the maintenance cycle not be followed, Sarnafil G/S membranes have been given, in the opinion of the BBA, a life expectancy of 'in excess of 35 years'.

Installation:

In adhered applications, Sarnafil G410-EL is adhered directly to the substrate or a suitable thermal insulation board with Sarnacol 2170. Laps are then hot air-welded to form seams which are stronger than the membrane itself.

In warm-ballasted applications, the G410-EL membrane is loose laid, with all overlapping joints hot air welded prior to the application of a protection/ filter fleece and the chosen ballast system.

Installation is carried out by Sarnafil trained contractors.

General information
Features

All Sarnafil systems are subject to a project specific specification (including design against wind uplift) to be completed by Sika Sarnafil. Please contact your local Sarnafil Technical Adviser

WarrantyDescription

Sarnafil single point, insurance backed, guarantees provide cover for all Sarnafil products supplied by Sika and branded Sarnafil products supplied by Sarnafil Partner suppliers

Uniclass 2015
Polymeric membranes (Pr_25_57_51_66)Primary
Specification data - Polymeric membranes
Product Reference

Sarnafil G410-EL

Thickness

1.2 mm

As standard.

1.5 mm

1.8 mm

2.0 mm

Colour

Copper brown (nearest RAL 8004)

Copper patina (Sika colour 6525)

Lead grey (Sika colour 9500)

Light grey (nearest RAL 7047)

Traffic white (nearest RAL 9016)

Traffic white, solar reflective (RAL 9016 SR)

Window grey (nearest RAL 7040)

Accessories

None

Double L rainwater outlets

G/S rainwater outlets

Primer 110

Sarnafil Constant Force post

Sarnafil heat weldable lightning conductor clips

Sarnametal

Sarnaplast 2235

Standard product features

Width:

2.0 m.

Length of roll:

20 m (15 m for 1.8 and 2.0 mm-thick membrane).

Weight:

  • 1.2 mm-thick: 1.50 kg/m².
  • 1.5 mm-thick: 1.90 kg/m².
  • 1.8 mm-thick: 2.30 kg/m².
  • 2.0 mm-thick: 2.50 kg/m².

Product Options

Thickness:

1.2 mm standard thickness. Ballasted applications require a membrane at least 1.5 mm thick.

Colour:

Available in standard colours. Other Colours may be available, subject to a lead time and minimum order quantities.

Accessories:

  • Double L rainwater outlets: Insulated outlets.
  • G/S rainwater outlets: Injection moulded PVC outlets and scuppers.
  • Primer 110: Surface primer creating a key for Sarnaplast 2235.
  • Sarnafil Constant Force post: Cable-based fall arrest and restraint system.
  • Sarnafil Double L: High drainage capacity insulated rainwater outlet.
  • Sarnafil heat-weldable lightning conductor clips.
  • Sarnametal: Galvanized metal sheet with Sarnafil G410-12EL factory-laminated to it, for use in prefabricated flashings and drip details.
  • Sarnaplast 2235: Elastic one-part silicone sealant for sealing edges and perimeter upstand flashing terminations.

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 6 1.3
Vectorworks
- 1.0
AECOsim
- 1.0
ARCHICAD
- 2
Revit
Revit 2016 7 2.0
Download now from NBS National BIM Library
