G-Brick SIP
QA Certificate
Certificate type
Structural insulated sandwich panels.

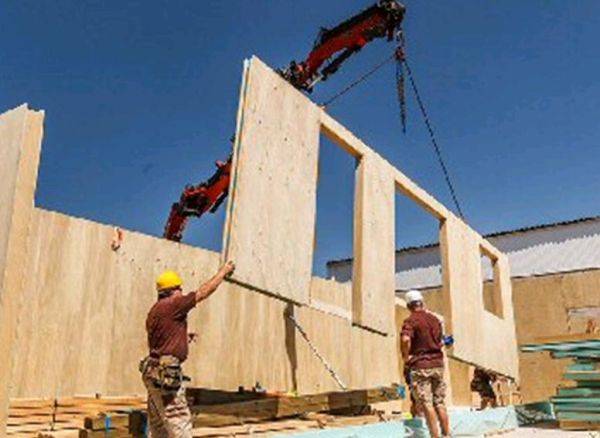

Flooring, closures, internal partitioning or roofing. Suitable for new-build projects and refurbishments, where it will be used as a complete building system or in combination with timber or metal framing.
Structural insulated sandwich panels, composed of plywood and high performance extruded polystyrene (XPS) core.
Features and benefits:
- Mechanical properties.
- High thermal efficiency and air-tightness.
- Recommended for projects with high energy efficiency or passive buildings.
- Sustainable and industrialized.
- Joining mechanism included along the perimeter.
- FSC®- and PEFC-certified.
Application:
Flooring, closures, internal partitioning or roofing. Suitable for new-build projects and refurbishments, where it will be used as a complete building system or in combination with timber or metal framing.
Material | Extruded polystyrene |
Uniclass 2015 | |
CAWS | B14/110 Prefabricated panelled G20/347 Structural insulated roof panels G20/348 Structural insulated wall panels |
Product Reference | G-Brick SIP |
Size (h x w) | 2500 x 1220 mm3100 x 1220 mm |
Thickness | 60 mmDensity: 12.9 kg/m²; weight (per 2500 x 1200 panel): 38.7 kg; thermal transmittance: 0.48 W/m²K. 100 mmDensity: 14.3 kg/m²; weight (per 2500 x 1200 panel): 42.9 kg; thermal transmittance: 0.32 W/m²K. |
Standard product features | Material: Extruded polystyrene. Technical characteristics:
|
Product Options | Insulation thickness: Add 24 mm to thickness; all with a 12 mm plywood panel either side. |
- FSC: C116880
- PEFC: PEFC/14-35-00004
