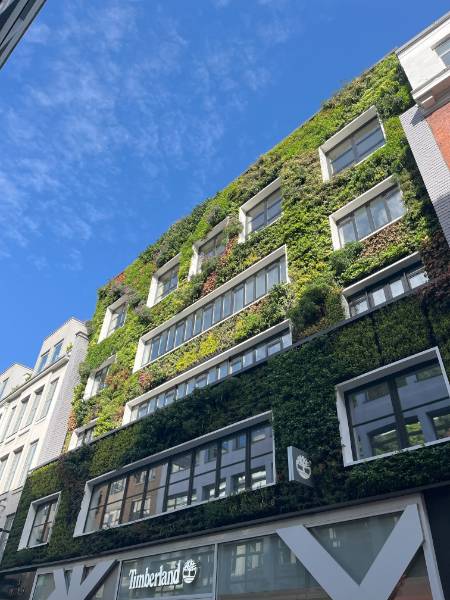

Fytotextile - Top Hat Build-Up - Modular Living Green Wall System - Cladding System

Verified by manufacturer 2 months ago

Terapia Urbana Third party certifications:
  • Product Environment Footprint (PEF)

    Certificate type

  • Certificate of constancy of performance

    Certificate type

  • Certifire Certificate

    Certifire Certificate

    Certificate type

Modular Living Green Wall System for internal and external applications.

Jump to:
BOS
+3407523654230 Website

Application

For indoor and outdoor green wall installation.

Description

A Modular Living Green Wall System composed of three flexible, organic and synthetic fabric layers of reduced thickness. All sides are interconnectable and can have a maximum capacity of 36 (6 x 6) or 49 (7 x 7) plants. Each module includes a top flange for assembly and checking the drip irrigation system.


Each module connects with each other using a metallic framework that is attached to an existing resistant wall, creating a ventilated façade.


Waterproof layer:

The waterproof membrane prevents water from penetrating substructures while also protecting them.


Irrigation layer:

The inner layer allows for optimal water distribution for the plants and retains beneficial moisture (2–3 L/m).


Breathable layer:

The exterior layer has good air flow at low speed winds which provides optimal aeration for the roots.


Features and benefits:

  • Easy application.
  • Bespoke metallic framework designed for each installation.
  • Includes an automation and irrigation system designed according to the size and requirement of the application.
  • Complies with fire classification B-s2, d0.
  • Suitable for Internal and external use.
  • Flexible and customisable.
  • All modules include a top flange for assembly and checking the drip irrigation system.
  • Able to integrate thermal insulation for building facade improvement.
  • Available in a maximum capacity of 36 pocket (6 x 6) or 49 pocket (7 x 7) modules.

General information

Color

Black

Finish

Other

Material

Steel

Fabric

Aluminium

Soil

Other

Shape

Rectangle

Square

Circle

Other

Width

455 mm

520 mm

680 mm

725 mm

1000 mm

Show more

Height

430 mm

535 mm

695 mm

730 mm

1000 mm

Show more

Warranty description

Ten year

Uniclass

Ss_45_40_95_54 Modular unit vertical planting systemsPrimary

CAWS

Q38/120 Modular green wall system

Q32/275 Prefabricated plant containers

Q31/292 Prefabricated plant containers

Specification data - Modular unit vertical planting systems

Secondary support structure

Horizontal carril profile (FYTVOL) fixes the module to the galvanized steel framework.

Waterproof layer

Integrated waterproofing back layer (FYT-RCF).

Irrigation

Drip line irrigation system with a required pressure of 1.52 bars.

Guidance for specification option:

  • A drip line irrigation system with a required pressure of 1.52 bars would typically operate effectively within that pressure range.
  • It's essential to ensure that the system components, such as emitters and pipework, are compatible with this pressure to achieve optimal performance and water distribution.

Modular panels

-

Type

Multilayer fabric system, made of a modular matrix of pockets attached to galvanized steel profiles.

Guidance for specification option:

  • Standard module: Module SA - 36 pockets (6 x 6 modules); 1000 x 1000 mm.
  • Standard modules in various sizes and bespoke modules options.
  • Consult manufacturer for details.

Growing medium

Organic growing medium.

Planting

-

Manufacturer guidance

  • The living wall modules can accommodate either 36 or 49 plants per square meter.
  • Planting is done using 1-liter pots, which are placed within the modules.
  • Natural plants are specifically selected according to the climate conditions, sun exposure and landscape design requirements for each project.

Gutters

150 x 100 mm gutters (aluminium, steel or plastic) to connect to drainage outlets.

System accessories

Not required.

Remote control monitoring.

Recirculated water system.

Type

Fytotextile-FR®.

Guidance for specification option:

Module with Class B-s2, d0.

Manufacturer guidance

Fytotextile® module type.

Fire performance

B-s2-d0.

System thickness

20 mm (module thickness); 130 mm (system thickness).

Weight

2.1 kg (module weight without planting).
28–35 kg/m² (saturated and fully planted module weight).

Electrical requirements

220 V/ 16 A.

Tear strength

7 kg/ pocket.

Sustainability data

Contains Red List materials

No

Country of material origin

Spain

Country of product manufacture

Spain

Material

Steel

Fabric

Aluminium

Soil

Other

Recyclability

Partially recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

2 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

2

IFC
-

2

Third party certifications

Product Environment Footprint (PEF)

Product Environment Footprint (PEF)

Environmental Footprint Certificate

Certificate of constancy of performance

Certificate of constancy of performance

Fytotextile system declaration

Certifire Certificate

Certifire Certificate
