FY65 Thermally Broken Aluminium Window

Third party certifications:
  • Secured By Design

    Certificate type

Technal

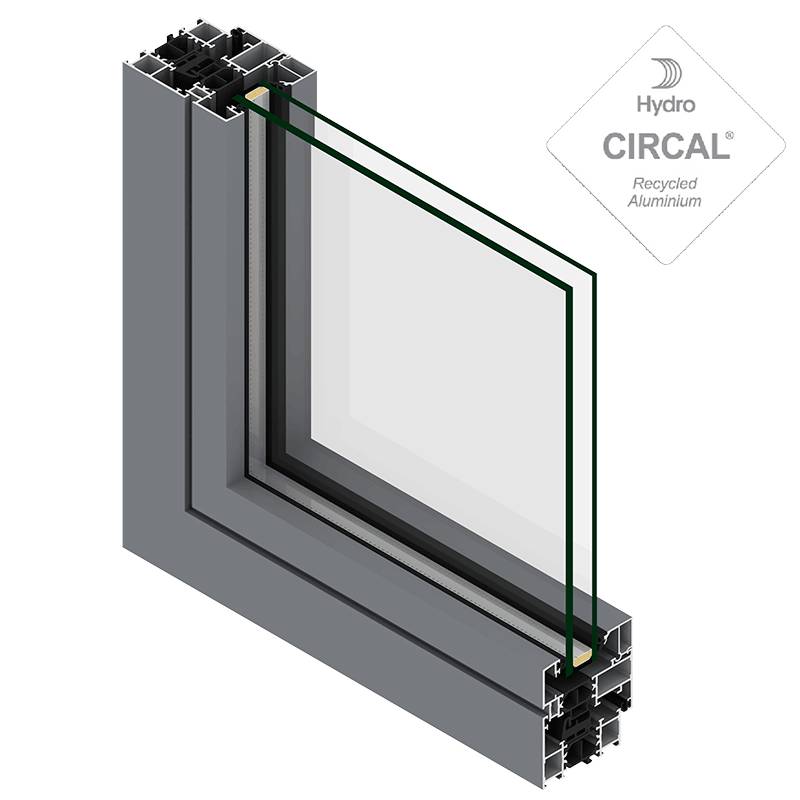

High performance, thermally broken aluminium window system.

Jump to:
+44 (0)1684 853 500 www.technal.co.uk
Description

Aluminium window system with enhanced thermal performance, can be constructed to form fixed lights or various opening configurations, including: top hung open out, side hung open out, tilt/ turn open in, parallel or bottom hung open in.

Can also provide high levels of acoustic performance, supported by independent test data.

Features and benefits:

  • Dual colour available; differing finishes internally and externally possible.
  • Drained and ventilated glazing; nitrile rubber gaskets.
  • Double weather stripped profiles with two multi-chambered polyamide thermal breaks, mechanically jointed.
  • Trickle ventilators available.
  • High levels of weather performance and thermal insulation.
  • Concealed fittings.

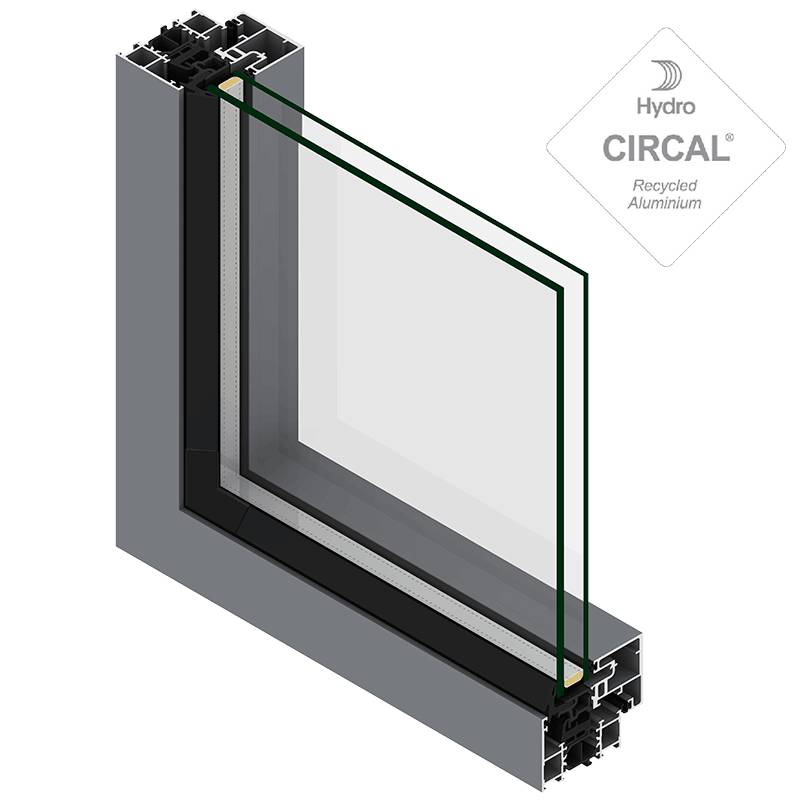

  • Available in two styles the visible or minimal (a frame with slim sightlines, providing greater aesthetics).
  • Includes concealed drainage.
  • Secure multipoint locking.
  • Weather resistant.
  • Enhanced security; Secured by Design (SBD) accredited and tested to PAS 24.

General information
Size

As drawing ___

As schedule ___

Finish

Anodized bronze

To BS 3987.

Anodized silver

To BS 3987.

Powder-coated

To EN 12206-1: 2004, insert colour and gloss level.

Uniclass 2015 Aluminium window units (Pr_30_59_98_02)
Specification data
Product Reference

FY65 Thermally Broken Aluminium Window

Opening Configuration

Bottom hung open in

Fixed light

Horizontal pivot

Parallel

Side hung casement

Tilt turn

Tilt turn minimal

Top hung casement

Vertical pivot

Size

As drawing ___

As schedule ___

Finish

Anodized bronze

To BS 3987.

Anodized silver

To BS 3987.

Powder-coated

To EN 12206-1: 2004, insert colour and gloss level.

Glazing/ panel thickness

Double glazed unit

Triple glazed unit

Up to 52 mm.

Glazing bead

Internal

External

Hardware

Casement butt hinges

Casement friction hinges

Chain actuator

Horizontal concealed pivot hinges

Horizontal visible pivot hinges

Manual winding gear

Parallel scissor hinges

Restrictor

Restrictor, 100 mm

Restrictor, 200 mm

Restrictor, 300 mm

Tilt turn concealed

Vertical concealed pivot hinges

Vertical visible pivot hinges

Handle

Locking

Non-Locking

Colour

Ebony

Manufacturer’s standard

Silver anodized.

White

Trickle vents

With

Without

Standard product features

Material:

Profiles are extruded from alloy 6005T6, 6063T6 or 6060T5 to BS EN 12020, BS EN 573-3, BS EN 515 and BS EN 755 - 1 to 9.

Product Options

Type:

- Casement:

Classification Air A4, Water 1050, Wind VC4. Maximum size – Top Hung 1500 x 2200 mm; 140 kg, Side Hung 1200 x 1800 mm; 100 kg.

- Tilt turn:

Classification Air A4, Water 1200, Wind VC4. Maximum size – 1250 x 2250mm; 130 kg.

- Parallel:

Maximum size 1500 x 2200 mm; 100 kg.

- Bottom hung:

Open in maximum size – 1600 x 800mm; 60 kg.

- Horizontal pivot visible hinge:

Classification Air A3, Water 8A, Wind VC4. Maximum size 1700 x 2000 mm; 85 kg.

- Vertical pivot concealed hinge:

Classification Air A4, Water 6A, Wind VC4. Maximum size 2000 x 2000 mm; 100 kg.

Third party certifications
  • Secured by Design - certficate
