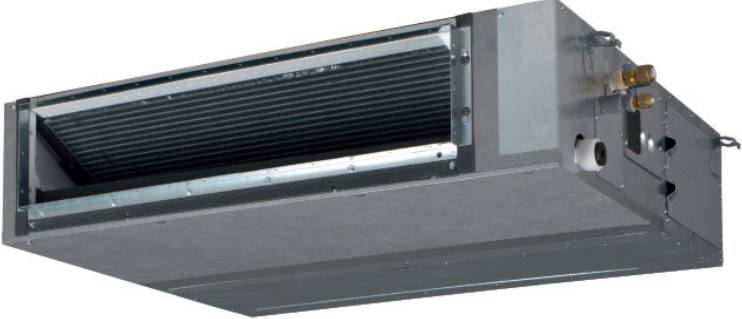

FXSQ-A (R410a duct) - VRV Indoor Unit

The FXSQ-A concealed ceiling unit features a three-step airflow control, which offers improved comfort. Energy consumption is reduced by 20%, compared with the FXSQ-P series, thanks to the use of a new DC fan. The unit is particularly suitable for shops and offices because it can be used with ducts of varying lengths.

Features and benefits:

• Automatic air flow adjustment function measures the air volume and static pressure and adjusts it towards the nominal air flow, whatever the length of the duct, making installation easier and guaranteeing comfort. The ESP can be changed via the wired remote control to optimize the supply air volume.
• Slimmest unit in class, only 245 mm.
• Low operating sound level.
• Medium external static pressure up to 150 Pa facilitates using flexible ducts of varying lengths.
• Discretely concealed in the ceiling: only the suction and discharge grilles are visible.
• 15 class unit especially developed for small or well-insulated rooms.
• Reduced energy consumption thanks to specially developed DC fan motor.
• Flexible installation, as the air suction direction can be altered from rear to bottom suction.
• Standard built-in drain pump increases flexibility and installation speed.
