FXHA-A (Suspended) - VRV Indoor Unit
Verified by manufacturer 3 months ago
FXHA32A
FXHA32A

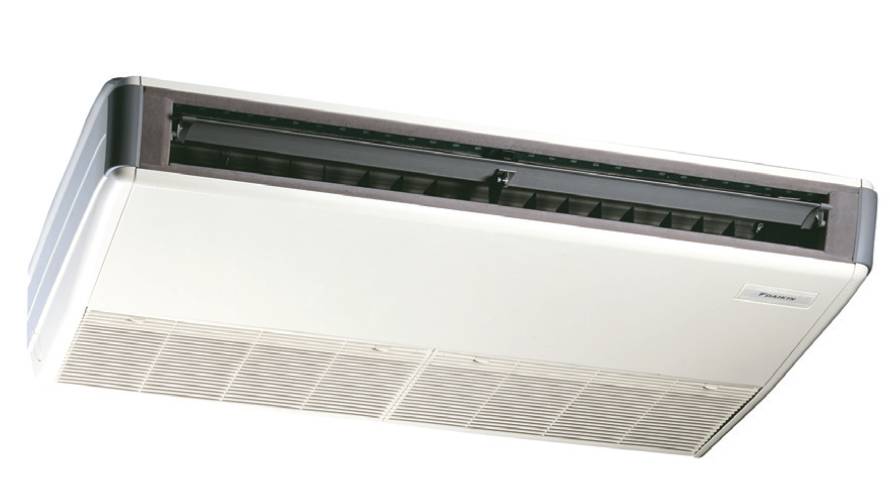

Ceiling suspended VRV indoor unit.
Application
- For commercial spaces with narrow or solid ceilings.
- Can be installed in both new and existing buildings.
Description
Ceiling suspended VRV indoor unit for commercial spaces with solid ceilings.
Designed to fit rooms of any size and shape, Daikin indoor units are also user-friendly, reliable, easy to control and quiet in operation. All indoor units comply with the Ecodesign legislation by adopting DC fans in all indoor units, improving their energy efficiency.
Features and benefits:
- The unit can easily be mounted in corners and narrow spaces, as it only needs 30 mm service space at the side.
- Low energy consumption thanks to DC fan motor and drain pump.
- The unit blends easily with any interior, as the flaps close entirely when not in operation.
- Air flow distribution for ceiling heights up to 3.8 m without capacity loss.
- Wider air discharge thanks to Coanda effect and 100° lateral air distribution.
General information
Color | White |
Shape | Rectangle |
Length | 960 mm 1270 mm 1590 mm |
Width | 690 mm |
Height | 235 mm |
Uniclass |
Specification data - Variable refrigerant flow units
Arrangement | Ceiling suspended. |
Output cooling | 3.6 kW. |
Output heating | 4 kW. |
Accessories | Not required.BRC1H52W, Wired touch screen remote controller, White.BRC1H52S, Wired touch screen remote controller, Silver.BRC1H5K, Wired touch screen remote controller, Black.EKRS22 Lead to permit BYFQ60B3 to be employed with FXZA-A.BRP069C51 WiFi adapter for VRV 5 Indoor units. |
Air flow | 0.183 m³/sec (nominal). |
Power supply | Single phase, 50 Hz, 230 V. |
Overall sound power level | 54 dBA (cooling). |
Sustainability data
Recyclability | 70% |
Literature
FXHA-A (Suspended) Data Sheet
