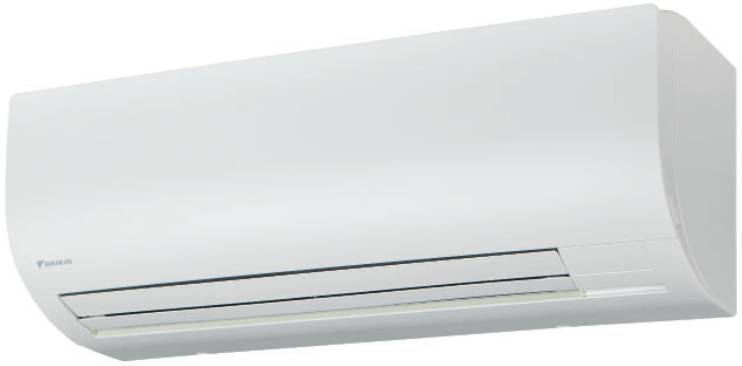

FXAQ-A (R410a wall) - Wall Mounted Unit
Verified by manufacturer 3 months ago
FXAQ15A
FXAQ15A
VRV indoor unit.
Application
- For shops, restaurants or offices and hotel bedrooms with no or narrow false ceilings.
- Can be installed in both new and existing buildings.
Description
FXAQ-A is a wall-mounted VRV indoor unit for shops and offices with solid ceilings.
Designed to fit rooms of any size and shape, Daikin indoor units are also user-friendly, reliable, easy to control and quiet in operation. All indoor units comply with the Ecodesign legislation by adopting DC fans in all indoor units, improving their energy efficiency.
Features and benefits:
- Low energy consumption thanks to DC fan motor.
- Flat front panel blends easily within any interior décor and is more easy to clean.
- 15 class unit especially developed for small or well-insulated rooms.
- Five different discharge angles can be programmed via the remote control.
- Maintenance operations can be performed easily from the front of the unit.
General information
Color | White |
Shape | Rectangle |
Length | 795 mm 1050 mm |
Width | 266 mm |
Height | 290 mm |
Uniclass |
Specification data - Variable refrigerant flow units
Arrangement | Concealed ceiling unit. |
Output cooling | 1.7 kW. |
Output heating | 1.9 kW. |
Accessories | Not required.BRC7EA628 Infrared remote control including receiver (Heat Pump).BRC1H519W User-friendly wired remote controller with premium design (White).BRC1H519S User-friendly wired remote controller with premium design (Silver).BRC1H519B User-friendly wired remote controller with premium design (Black).BRC1E53A/B/C Wired remote control with full-text interface and back-light.BRC1D52 Standard wired remote control with weekly timer.Guidance for specification option: Not recommended because of the limitation of the function. BRC2E52C Simplified remote control (with operation mode button).BRC3E52C Simplified remote control (without operation mode button).DCC601A51 Intelligent Tablet Controller.DCS601C51 Intelligent Touch Controller.DCM601A51 Intelligent Touch Manager.EKMBDXA DIII-net modbus interface.KLIC-DI KNX interface.DMS502A51 BACnet interface.DMS504B51 LowWorks interface.KRP4A53 Wiring adapter for external monitoring/control via dry contacts and setpointcontrol via 0-140Ω.KRP2A52 Wiring adapter for external central monitoring/control (controls 1 entiresystem).DTA104A61 External control adapter for outdoor unit (installation on indoor unit).DTA114A61 Adapter for multi-tenant applications (24 V a.c. PCB power supply interface).BRP7A51 Digital input adapter.Guidance for specification option: Installation box is necessary for these adapters. Only possible in combination with BRC1H*/ BRC1/2/3E*. UK.FB2 Installation box/ mounting plate for adapter PCBsGuidance for specification option: For units where there is no space in the switchbox. KRCS01-1 External wired temperature sensor.K.RSS External wireless temperature sensor.EKEWTSC Wire harness required for connection to K.RSS. |
Air flow | 0.117–0.140 m³/sec. |
Power supply | Single phase, 50 Hz, 230 V. |
Overall sound power level | 51 dBA. |
Sustainability data
Recyclability | 70% |
Literature
FXAQ-A (R410a wall) Data Sheet
