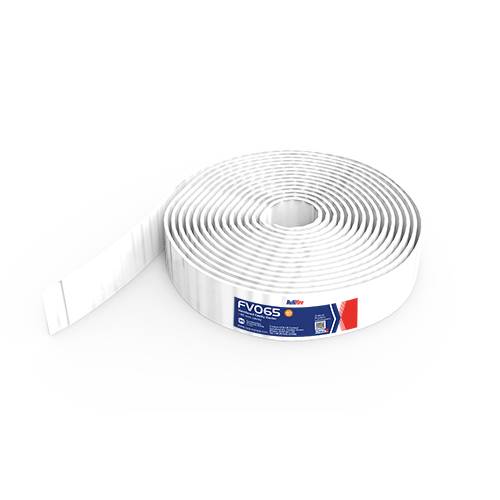

FV065 Small Ventilated Cavity Barrier Roll
Verified by manufacturer 6 months ago
Fire rated product designed to be used as a cavity barrier up to 65 mm uninsulated cavity within external walls. Encapsulated in a polythene barrier & made from a flexible intumescent material.
Application
Used as cavity fire barrier to the compartmentation lines in an uninsulated cavity behind external walls consisting of natural stone masonry, brickwork or blockwork outer substrates and a framed and sheathed backing wall such as Timber Frame.
FV065 Roll is also suitable for use around window and door openings, even where differential movement is factor and where a friction or compression fit alternatives may not be entirely desirable due to the possibility of deformation of a full fill NVFB during settlement.
Description
FV065 Roll is specially designed and made from a flexible material, allowing it to be packed and applied as intumescent material on a easy to use roll.
With a thickness of only 6 mm, the low profile design offers significant space and labour saving over traditional cavity socks, whilst also ensuring the external uninsulated cavity is left unobstructed and free to ventilate. It is also covered with a protective layer of polythene for ease of handling and to protect it from water.
FV065 intumescent material will expand to close the external wall cavity, providing effective fire resistance, for integrity and insulation for 60 minutes* depending upon the construction of the external wall cavity.
FV065 is designed to close off a total cavity of 65 mm which allows for building tolerances of up to 15 mm (above the typical maximum cavity ventilation requirements of 50 mm).
General information
Color | White |
Finish | Other Guidance for specification option: Sleeved. |
Material | Intumescent Polyethylene Manufacturer guidanceFlexible intumescent compounds, sleeved in a polyethylene wrapper and bound into a roll. |
Shape | Other Guidance for specification option: Continuous roll. |
Length | 6300 mm |
Width | 75 mm |
Height | 6 mm |
Warranty description | Other Guidance for specification option: Any product which has been applied (a) in accordance with Tremco CPG UK Ltd written instructions and (b) in any applications recommended by Tremco CPG UK Ltd, but which is proved to be defective, will be replaced free of charge. |
Uniclass | |
CAWS | P10/77 Ventilated cavity barriers P10/435 Ventilated cavity barriers |
Specification data - Intumescent sheet cavity barriers
Standard | Tested and certified in accordance with ASFP Technical Guidance Document TDG19.Guidance for specification option: Tested and certified in accordance with ASFP Technical Guidance Document TDG19 at least 60 minutes integrity and 60 minutes insulation up to 65 mm wide cavities.
|
Properties | Ventilated. |
Width | 25 mm. |
Fire performance | Fire-rated for up to 60 minutes.Guidance for specification option: Depending on the application. Consult manufacturer and insert requirements. |
Composition | Flexible intumescent compounds, sleeved in a polyethylene wrapper and bound into a roll. |
Length | 6300 mm. |
Height | 75 mm. |
Thickness | 6 mm. |
Bond | Stainless steel screws. Guidance for specification option:
|
Colour | White. |
Expansion | 30:1 ratio. Manufacturer guidanceFree expansion. |
Durability | Type X. Guidance for specification option: Intended for use in conditions exposed to weather (UV, rain and frost). |
Operating temperature | 80°C. Manufacturer guidanceMaximum continuous operating temperature. |
Service temperature | -20°C to + 70°C. |
Storage | Store in dry, ambient conditions between -20°C to + 70°C. |
Life expectancy | ≥60 years Guidance for specification option: At least 60 years (refers to the active intumescent component). Shelf life - unlimited when stored as recommended. |
Installation accessories | Drill. Manufacturer guidanceConsult manufacturer for guidance. |
Execution | Guidance for specification option: In strict accordance with the manufacturers Technical Data Sheet, Test Data and separately available detailed NBS Product Specification. The principal designer must approve the use of any cavity barrier, whether open-state or full-fill, in conjunction with the products fire classification reports, taking full account of the whole construction of the external wall systems and the components, including any requirements of the Building Regulations and Warranty provider standards. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
