Fusion Quadrant Kerb | Concrete Kerb

Verified by manufacturer 2 months ago

New variant

Tobermore

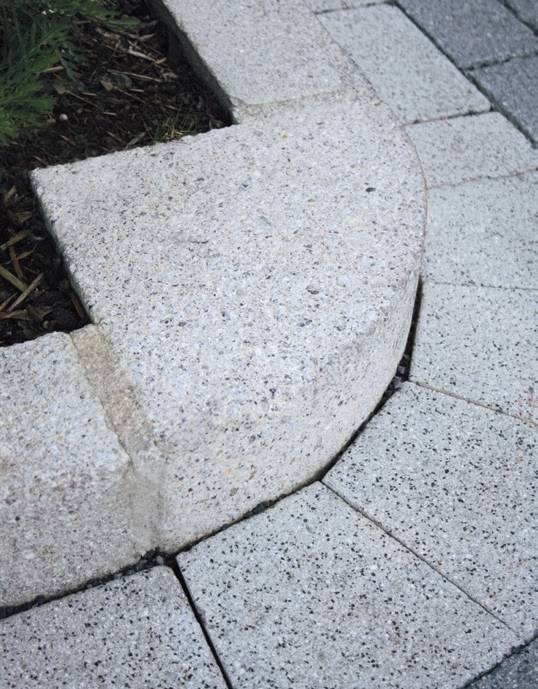

Concrete quadrant kerb.

Jump to:
BOS
+44 (0)844 800 5736 Website

Application

For residential and commercial applications, when used in conjunction with the correct sub-base design.

Description

Concrete quadrant kerb, manufactured in accordance with BS EN 1340: 2003.


Features and benefits:

  • Neat kerbing finish.
  • Subtle and curved.

General information

Color

Silver

Finish

-

Manufacturer guidance

Granite aggregate.

Material

Concrete

Shape

-

Manufacturer guidance

Quadrant.

Length

255 mm

Width

305 mm

Uniclass

Pr_25_93_45_18 Concrete kerbsPrimary

CAWS

Q10/10 Precast concrete

Q10/110 Proprietary precast concrete

Specification data - Concrete kerbs

Standard

To BS EN 1340.

Manufacturer guidance

Installed to BS 7533-6.

Physical properties

-

Colour

Silver.

Finish

Granite aggregate.

Dimensions

255 x 305 mm.

Weathering resistance

≤1.0 kg/m².

Guidance for specification option:

Mean with no individual value > 1.5 kg/m² Class 3.

Abrasion resistance

≤23 mm.

Manufacturer guidance

(Wide Wheel Abrasion Test)

Bending strength

>3.5 MPa.

Guidance for specification option:

Characteristic bending strength of 3.5 MPa with no individual result less than 2.8 MPa.

EnergyUsed

100%.

WaterUsed

100%.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Concrete

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

12.74 kg CO₂ eq/m

Self declared

Guidance for specification option:

Per linear metre.

Recyclability

100%

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

Tobermore Concrete Kerb Brochure

Tobermore Concrete Kerb Brochure

Case studies

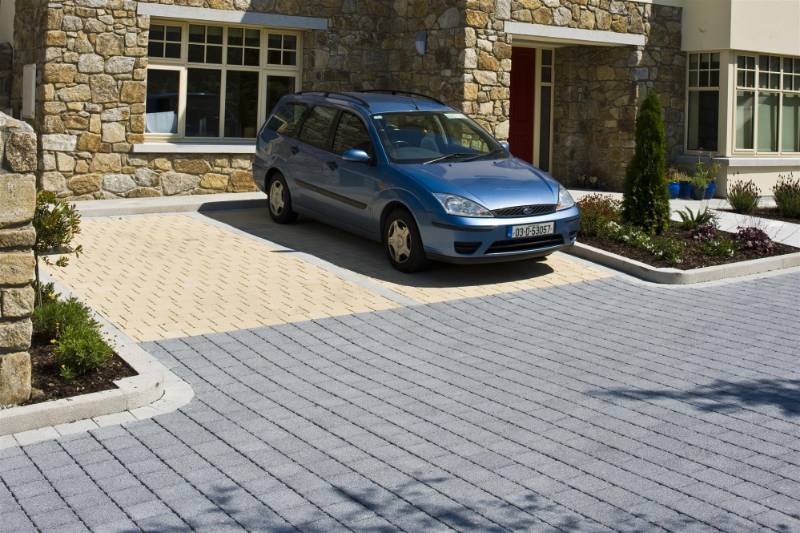

Dalkey avenue, Dublin

Dalkey avenue, Dublin

Similar products from Tobermore

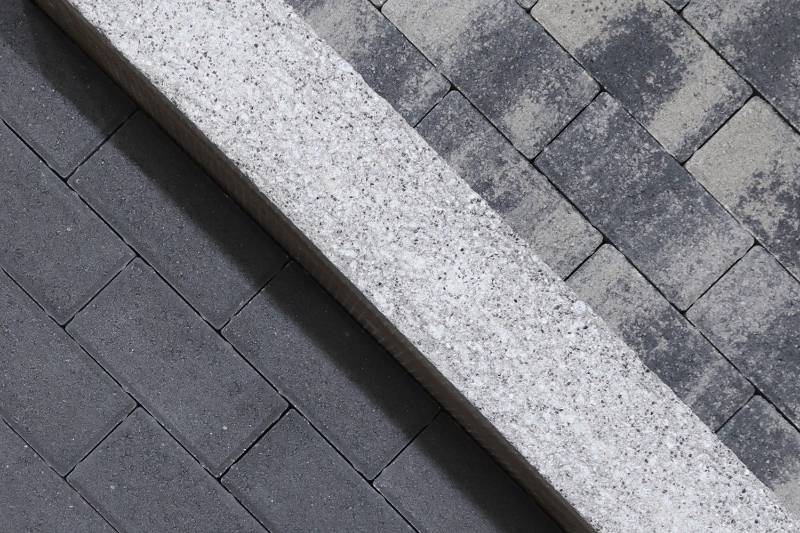

Fusion Kerb | Concrete Kerb

Fusion Kerb | Concrete Kerb

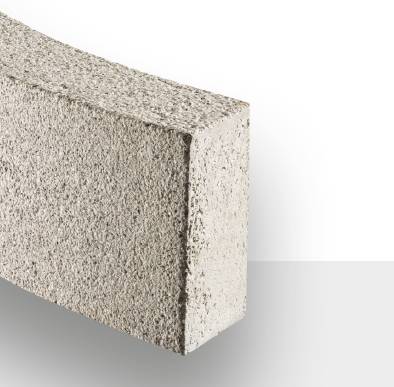

Fusion Radii Kerb | Concrete Kerb

Fusion Radii Kerb | Concrete Kerb

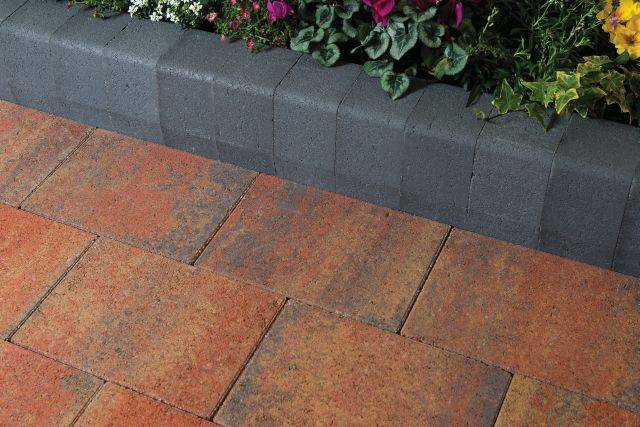

Kerb Large (KL) | Concrete Kerb

Kerb Large (KL) | Concrete Kerb

Kerb Small | Concrete Kerb

Kerb Small | Concrete Kerb

Kerbstone | Concrete Kerb

Kerbstone | Concrete Kerb

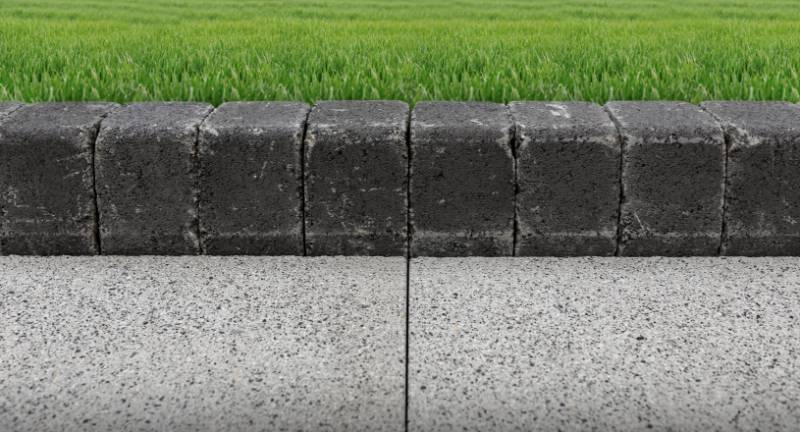

Tegula Kerb Large | Concrete Kerb

Tegula Kerb Large | Concrete Kerb

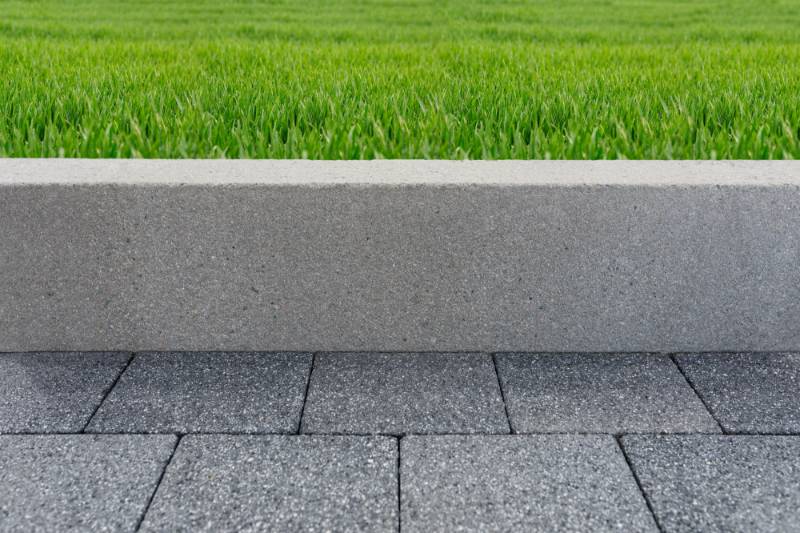

Textured Kerb | Concrete Kerb

Textured Kerb | Concrete Kerb

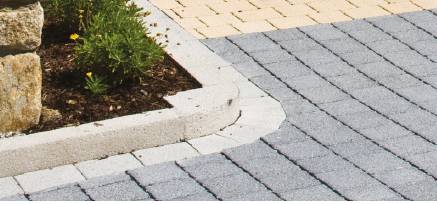

Textured Quadrant Kerb | Concrete Kerb
