Fusion Comet 48 kW 3-Phase

Verified by manufacturer 8 months ago

Electric Heating Co Ltd Third party certifications:
  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

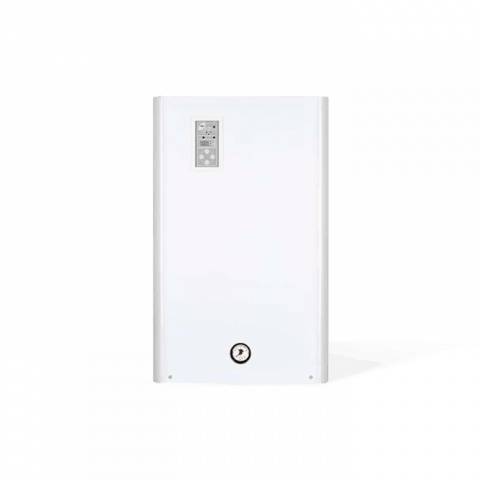

48 kW output, three-phase electric boiler.

Jump to:
+44 (0)1698 820533 Website

Application

  • Suitable for central heating only or central heating and hot water when installed with a hot water cylinder.
  • Suitable for underfloor heating.
  • Suitable for a wet central heating system in commercial properties, hotels, guest houses and large properties with three-phase electricity.
  • No expansion vessel as standard.

Description

3-Phase Comet Electric System Boilers are designed to eliminate unnecessary external plumbing and pipe work. They are a particularly suitable solution for a wet central heating system in light commercial properties, hotels, guest houses and large properties with three-phase electricity, offering an effective and efficient heating solution using conventional wet system radiators and valves.

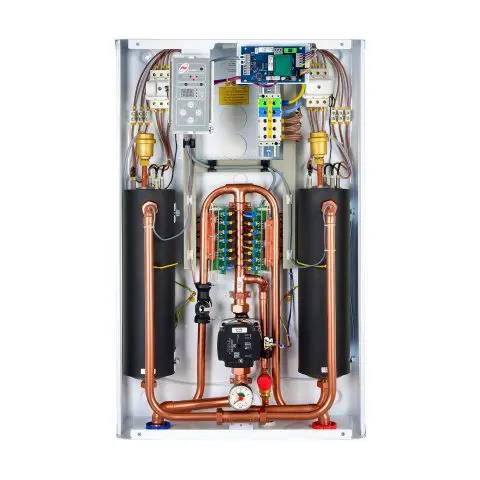

This fully modulating, powerful electric boiler has been engineered to include insulated duplex stainless steel heat exchangers, twin auto air vents, Grunfgos or Wilo pump, pressure gauge, flow and return temperature sensors and dual high temperature safety cut-outs.


Features and benefits:

  • 48 kW output.
  • 100% efficient.
  • Virtually silent in operation.
  • Six stage heating.
  • Fully modulating heat exchanger.
  • Twin stainless steel heat exchangers.
  • Volt-free control connections.
  • Easy-fit connectors and sensors.
  • In-built fault finding diagnostics.
  • High current thermal cut-out.
  • Vortex flow temperature sensor.
  • Digital pressure gauge.
  • ErP smart pump.
  • Five year warranty.


Elevate your home's comfort with our cutting-edge heating solutions! From efficient Electric Boilers, including Single-Phase, 3-phase and Electric Combi options, to the convenience of pre-plumbed and pre-wired Cylinders, we offer a diverse range of choices. Ensure a seamless integration into your central heating system with our Central Heating Boilers, tailored for the UK market. Enjoy the luxury of instant Hot Water with our advanced Water Heaters and Boilers. Explore the innovative technology of our Electric Heating products, including EHC solutions, designed for reliable and energy-efficient warmth. Whether you choose a pre-plumbed Cylinder for easy installation or a pre-wired option for simplified setup, our collection caters to your diverse heating needs, creating a cosy and welcoming home environment.

General information

Color

White

Finish

Gloss

Material

Stainless steel

Shape

Rectangle

Length

197 mm

Width

503 mm

Height

815 mm

Warranty description

Five year

Guidance for specification option:

Terms and conditions apply; consult manufacturer for details.

Uniclass

Pr_60_60_08_27 Electric boilersPrimary

CAWS

T90/322 Boilers, electric

Specification data - Electric boilers

Boiler type

System.

Output

48 kw.

Mounting

Wall-mounted.

Operating pressure

0.05 MPa (minimum); 0.3 MPa (maximum).

Operating temperature

100℃.

Manufacturer guidance

Maximum water temperature.

Heat exchanger

Fully insulated stainless steel.

Guidance for specification option:

x 2.

Electrical supply type

Three-phase.

Water pressure

40℃ (minimum); 85℃ (maximum).

Dimensions

815 x 503 x 197 mm.

Manufacturer guidance

Overall height x width x depth.

Weight

29 kg.

Pipes

28 mm.

Manufacturer guidance

Pipe connections.

Ingress protection (IP) rating

IP 21.

Voltage

400 V.

Manufacturer guidance

Rated voltage.

Current

3 x 69.3 A.

Guidance for specification option:

Fuse rated current: 80 A.

Manufacturer guidance

Rated current.

NetImpedance

0.03 Ω.

Manufacturer guidance

Maximum allowed network impedance.

Sustainability data

Contains Red List materials

No

Country of material origin

Poland

Country of product manufacture

Poland

Recyclability

Yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Third party certifications

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

UKCA ELECTRIC FUSION SYSTEM BOILER 48KW 3 PHASE
