Application

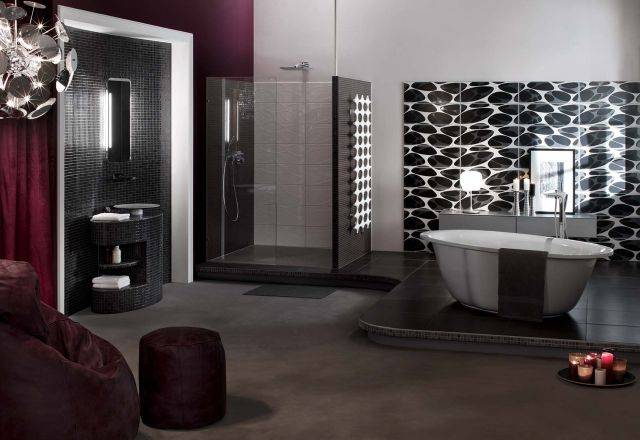

The wedi Fundo system can be installed on almost any surface as an individual tileable floor-level shower system. The system includes a sealed foam core with special coating, a specified surface slope as well as a perfectly-fitting system floor drain.

  • In domestic residential construction.
  • In publicly accessible buildings and workplaces complying with DIN 18040–1.
  • In accessible dwellings complying with DIN 18040–2 (note specifications for minimum tile size if wheelchair access is planned, consult literature for details).

Description

Fundo floor-level showers can be installed to the correct height quickly and easily using the Fundo Primo Easy Set. There is no need to spend time filling with mortar and screed. The total assembly height for the Fundo Primo Easy Set is 140 mm. Installation by adhesion using wedi 610 adhesive sealant.

Applications:

The wedi Fundo system can be installed on almost any surface as an individual tileable floor-level shower system. The system includes a sealed foam core with special coating, a specified surface slope as well as a perfectly-fitting system floor drain.

  • In domestic residential construction.
  • In publicly accessible buildings and workplaces complying with DIN 18040–1.
  • In accessible dwellings complying with DIN 18040–2 (note specifications for minimum tile size if wheelchair access is planned, consult literature for details).

General information
Specification data - Shower enclosures
Product Reference

Fundo Primo Easy Set rectangular, central drain 1200 x 900 x 100 mm

Fundo Primo Easy Set rectangular, central drain 1800 x 900 x 100 mm

Fundo Primo Easy Set rectangular, offset drain 1800 x 900 x 100 mm

Fundo Primo Easy Set square, central drain 1000 x 1000 x 100 mm

Fundo Primo Easy Set square, central drain 1200 x 1200 x 100 mm

Fundo Primo Easy Set square, central drain 1500 x 1500 x 100 mm

Fundo Primo Easy Set square, central drain 900 x 900 x 100 mm

Fundo Primo Easy Set rectangular, offset drain 1200 x 900 x 100 mm

Accessories

None

Fundo Primo

wedi 610 – adhesive sealant

wedi tools joint reinforcement tape

wedi tools sealing tape

wedi Fundo sealing set

Standard product features

Technical characteristics:

– Raw foam building board systems:

  • Type: Extruded polystyrene (XPS) rigid form core.
  • Long-term compressive strength (50 years) ≤2% compression (EN 1606): 0.08 N/mm².
  • Compressive resistance or compressive strength at 10% compression (EN 826): 0.25 N/mm².
  • Associated module of elasticity (EN 826): 10–18 N/mm².
  • Thermal conductivity (EN 13164): 0.036 W/mK.
  • Tensile strength (EN 1607): 0.45 N/mm².
  • Shearing resistance (EN 12090): 0.2 N/mm².
  • Shear modulus (EN 12090): 7 N/mm².
  • Bulk density (EN 1602): 32 kg/m³.
  • Resistance to water vapour diffusion (EN 12086): 100 µ.
  • Water absorption under long-term immersion (EN 12087): ≤1.5% by volume.
  • Capillary action: 0.
  • Linear coefficient of thermal expansion: 0.07 mm/mK.
  • Temperature limits: -50 to +75°C.
  • Fire behaviour (EN 13501): Class E.
  • Carbon dioxide propellant (Global Warming Potential, GWP) value: 1.
  • Waterproofing tested to: 1.5 bar.
