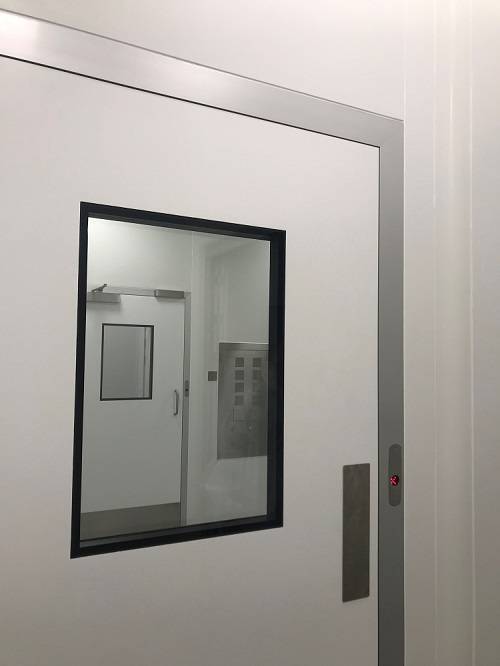

Fully Flush Cleanroom Door
Verified by manufacturer 14 days ago
Fully flush door.
Application
For internal cleanroom use.
Description
Our Puracore Fully Flush Cleanroom Door offers a fully flush solution to both faces. It seamlessly integrates with our Puracore panel system and is available in a variety of accessories and interlocking systems.
- 50mm leaf thickness with dimensions made to order, tailored to each project’s requirements•
- Handles and accessories available in a range of materials, including stainless steel, steel and nylon
- Drop seals included
- Traffic lights and interlocking systems are available
General information
Finish | Powder-coated |
Material | Aluminium |
Shape | Rectangle Square Manufacturer guidanceWide range available. |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | L20/480 Doorsets L20/55 Doorsets |
Specification data - Aluminium doorsets
Classification data | |
Configuration | Single leaf flush doors. Double leaf flush doors. |
Doorset size | Insert requirements, made to order. |
Frame | |
Material | Aluminium extruded, silver anodized. |
Perimeter seals or inserts | Silicone. Polyvinyl chloride (PVC). EPDF gasket. |
Finish | |
Coating | PVC. Powder coated. |
Door leaf | |
Thickness | 50 mm. |
Perimeter seals | Drop seal fitted as standard. |
Glazing | |
Type | Glazed 6 mm glass. double glazed: 300 x 400 mm. Glazed 6 mm glass. double glazed: 400 x 600 mm. Glazed 6 mm glass. double glazed: 500 x 800 mm. Glazed 6 mm glass. single glazed: 300 x 400 mm. Glazed 6 mm glass. single glazed: 400 x 600 mm. Glazed 6 mm glass. single glazed: 500 x 800 mm. Half glass door leaf. Guidance for specification option: Optional. |
Finish | |
Coating | PVC. Powder coated. |
Hardware | Nylon handles. Screw-in flush strike plate. Stainless steel handles. Stainless steel non-flush mount hinges. Steel handles. Surface-mounted door closer. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Aluminium |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
Fully-Flush-Cleanroom-Door
Fully Flush Cleanroom Door Product Data Sheet
