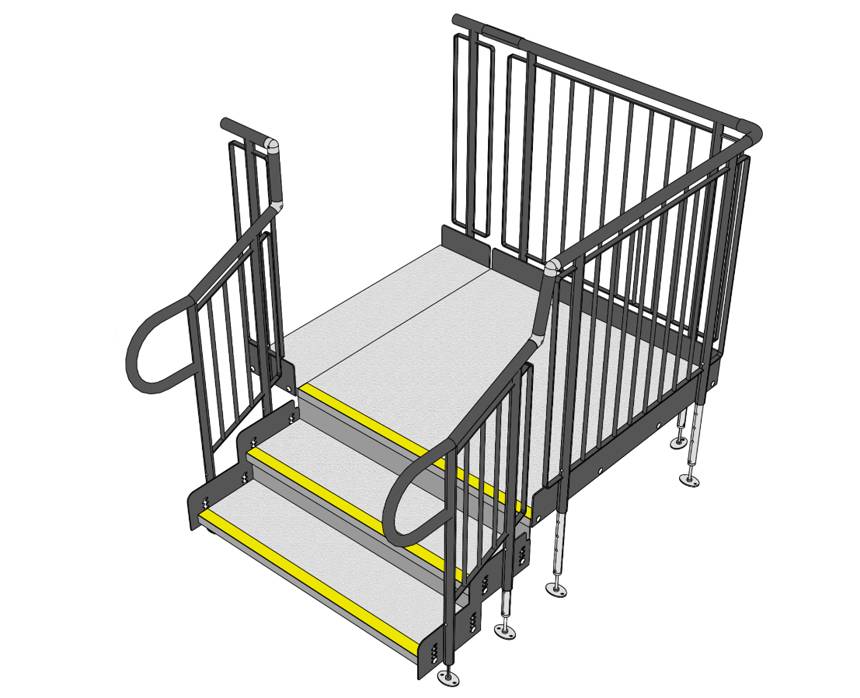

Fully Compliant Step System

Verified by manufacturer 1 month ago

Rapid Ramp Limited

A fully adjustable modular step system constructed from galvanised steel components that are bolted together.

Jump to:
+44 (0)1424 714646 Website

Application

  • Suitable for all public applications e.g. schools, museums, train stations, airports, outdoor festivals, offices, public toilets facilities.

Description

The fully compliant modular step system is meticulously constructed from galvanised steel components securely fastened together.


This step system not only fully adheres to DDA regulations but also aligns with British Standards and complies with Documents M and K of the Building Regulations. It successfully achieves the minimum compliant width of 1500 mm and maintains a gentle 1:15 gradient (equivalent to 3.7 degrees).


Designed to meet the highest standards of safety, this step system is tailored to prevent falls, collisions, and injuries in public settings such as schools, hospitals, shops, libraries, train stations, airports, public toilet facilities, offices, and heritage sites (in accordance with Part M & K).


Key Features and Advantages:

  1. Swift design and installation.
  2. Available in endless widths.
  3. Crafted from durable steel, featuring a galvanised walkway and powder-coated handrails that remain comfortably warm to the touch.
  4. Proudly manufactured in the UK, with nationwide service coverage extending to both the UK and Ireland.
  5. Components are modular and reusable, ensuring flexibility in design.
  6. Metal steps are  fire-resistant, providing heightened fire safety compared to wooden counterparts.
  7. Backed by a three-year guarantee and designed for a lifespan exceeding 25 years.
  8. Suitable for both short-term and long-term applications.
  9. Fully adjustable, allowing for easy adaptation, modification, and reuse.
  10. Custom sizes are available to meet specific requirements.
  11. Modular access steps can be effortlessly removed, leaving the area in its original condition.

General information

Color

Black

Guidance for specification option:

Standard.

Other

Guidance for specification option:

Also available powder-coated in any RAL colour.

Finish

Galvanized

Powder-coated

Material

Steel

Width

1500 mm

Bespoke

Height

-

Manufacturer guidance

The Rapid Ramp system can be used up to 3 m high.

Warranty description

Three year

Uniclass

Ss_35_10_85_35 Heavy steel stair systemsPrimary

CAWS

L30/45 Ramps/ walkways

L30/470 Ramps

Specification data - Heavy steel stair systems

Flooring and treads

Mesh platform.

Guidance for specification option:

As standard. Minimum width: 900 mm.

GRP platform.

Guidance for specification option:

Optional extra. A slip-resistant and non-corrosive surface that is suitable for areas with high footfall such as schools and public spaces. The product comes in dark grey as standard.

Handrails

Standard handrail.

Guidance for specification option:

The handrail is coated with thermosetting powder to provide a non-conductive, non-slip and scratch-resistant surface.

Infill handrail.

Guidance for specification option:

The infill handrail prevents users from climbing or falling through gaps. It is often specified for schools and public buildings.

1100 mm high vertical infill handrail.

Lower intermediate handrail.

Guidance for specification option:

For use with the standard or infill handrail. The lower intermediate handrail is designed to be used by young children and wheelchair users. The handrail should be 600 mm from the surface of the system.

Manufacturer guidance

With trombone ends as standard.

Integral accessories

Telescopic legs.

Guidance for specification option:

Legs can be adjusted to accommodate different threshold heights.

Accessories

None.

Gates unit.

Guidance for specification option:

A gate unit can be attached to the side of a platform; 1200 mm or wider.

Step unit.

Access hatch.

Guidance for specification option:

A hatch opens allowing a person access to the underground services.

Underside mesh hoarding.

Guidance for specification option:

This mesh is designed to prevent children from gaining access to the underneath of the ramp. It is often specified for schools and public buildings.

Specification includes:

• Mesh size 200 x 50 mm.

• 33.7 mm OD Single mesh clip.

Show more

Colour/ Finish

Black, powder-coated.

Guidance for specification option:

As standard.

RAL, powder-coated.

Guidance for specification option:

Insert requirements.

Width

900 mm.

1000 mm.

1200 mm.

1500 mm.

Bespoke.

Guidance for specification option:

Insert requirements.

Manufacturer guidance

Any of the widths can be secured together to create almost any width.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

156.73 kg CO₂ eq/m²

Self declared

Recyclability

96%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

21 %
