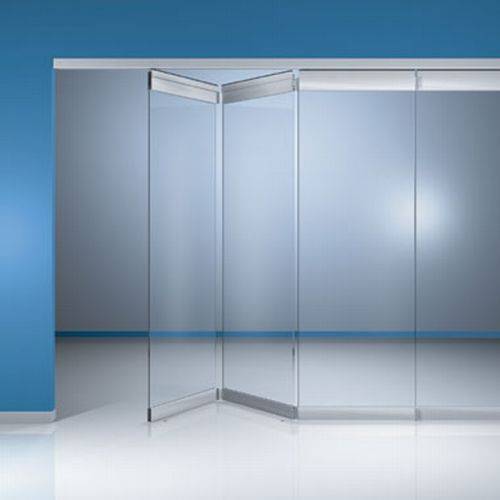

FSW-C Frameless Glass Sliding Folding Wall System

Description

Sliding folding glass wall system, comprising frameless, top hung, glass panels with top and bottom rails. Floor guides are not required.


The base panel, to which the folding panels are connected, is half-width – as is the final folding panel, to maintain system symmetry.

When closed, individual panels can be locked to the floor. Panels can also be installed as doors (FSW-C Plus) – consult DORMA for details.


System components:

  • Track rail – for bolting to substructure (optional DORMA substructure available).
  • Roller and suspension assembly – for safe and easy sliding of panels.
  • Top and bottom door rails, comprising base profiles with clip-on face and side covers.
  • Toughened or laminated safety glass panels – by others.
  • Top and bottom latching bolts.

System parameters:

  • System height (maximum): 3000 mm.
  • Panel width (maximum): 1000 mm. Base panel/ final folding panel width = half panel width + 63 mm.
  • Panel weight (maximum) 70 kg.
  • Number of panels: 3–8.

General information

Shape

Rectangle

Color

Silver

Finish

Powder coated

Polyester powder coated.

Anodized

Material

Steel

Stainless steel

Aluminium

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

L20/540 Sliding folding

Product range

Glass / Sliding Wall Systems

Specification data - Sliding door and partition sets Enhanced data

Arrangement

Folding.

Door leaves

-

Construction

Safety glass by others.

Operation

Manual.

System height

3000 mm maximum.

Assembly type

C1.

C2.

C3.

C3 Double.

Panel Type

Panel width (maximum): 1000 mm. Base panel/ final folding panel width = half panel width + 63 mm.

Base panel.

Folding panels.

Final folding panel.

Top and bottom rail material/ finish

Aluminium, anodized.

Aluminium, polyester powder coated.

Stainless steel.

Glass (by others)

Laminated safety glass.

Toughened safety glass.
