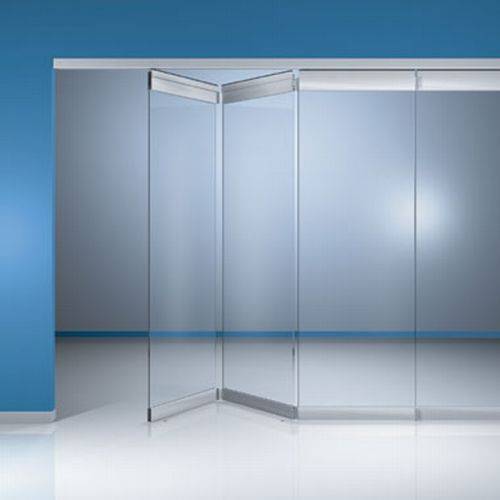

Frameless glass sliding folding wall system with top and bottom rails.
Sliding folding glass wall system, comprising frameless, top hung, glass panels with top and bottom rails. Floor guides are not required.
The base panel, to which the folding panels are connected, is half-width – as is the final folding panel, to maintain system symmetry.
When closed, individual panels can be locked to the floor. Panels can also be installed as doors (FSW-C Plus) – consult DORMA for details.
L20/540 Sliding folding
Base panel; ___ mm wide
Folding panels, ___ No; ___ mm wide
Final folding panel; ___ mm wide
Top and bottom rail material/ finish
Aluminium, anodized; colour ___
Aluminium, polyester powder coated; colour ___
Glass (by others)
Laminated safety glass
Toughened safety glass
