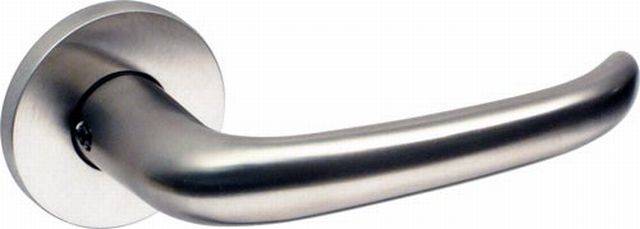

FSB stainless steel lever handles

FSB lever handles:

• Grub screw fixing on 8 mm Stabil square spindle.

• Pair of concealed fixing roses (order separately, except 7011).

• Rose diameter: 55 mm.

• Unsprung, for use with heavy duty followers.

• Bolt through fixing screws included.

• Designed for doors 42-46 mm thick.

• Finish: Satin.

Range:

FSB lever handle 1021:

Lever: 135 mm long.

FSB lever handle 1023:

Lever: 136 mm long.

FSB lever handle 1028:

Lever: 134 mm long.

FSB lever handle 1057:

Lever: 125 mm long.

FSB lever handle 1075:

Lever: 132 mm long x 19 mm diameter.

FSB lever handle 1076:

Lever: 137 mm long x 21 mm diameter.

FSB lever handle 1107:

Lever: 135 mm long.

FSB lever handle 1108:

Lever: 133 mm long.

FSB lever handle 1114:

Lever: 145 mm long.

FSB lever handle 1126:

Lever: 127 mm long.

FSB lever handle 1146:

Lever: 142 mm long x 20 mm diameter.

FSB lever handle 1147:

Lever: 132 mm long x 20 mm diameter.

FSB lever handle 1171:

Lever: 132 mm long x 21 mm diameter.

FSB lever handle 1173:

Lever: 127 mm long.

FSB lever handle 1176:

Lever: 140 mm long.

FSB lever handle 7011:

Pair of concealed fixing roses.

Pair of profile cylinder escutcheons included.

Lever: 141 mm long.

Properties:

Handles are supplied as pairs.

Material:

Grade 304 stainless steel, available in satin or polished finish.

Escutcheons:

Lock escutcheons are available to match handles with circular roses.

Accessories:

Bolt through fixing screws:

• Length: 50 and 60 mm.

• To suit doors 42–46 mm and 52–56 mm thick.

• 2 No. required per rose.

• Material: Steel.

FSB oval rose:

• Dimensions: 70 x 32 mm x 7 mm thick.

• Two required for set with lever handles.

• Designed for use with very narrow style locks and latches.

• Not to be used with window espagnolettes.

• Finish: Satin.

FSB roses with spring mechanism:

• Roses are employed in sets of two, with a left hand version (green cover) and a right hand version (red cover) being screwed together from opposite sides.

• Return of the carrier plate is ensured by compression springs, making for an indestructible arrangement.

• Angle of rotation: 25°.

• Used in conjunction with a lever handle set, this hardware does not differ visually from the standard version.

• Reference: 902.50.002 (replaces unsprung version 902.50.000), 902.50.040 (replaces Unsprung version 902.50.050).

FSB 'Stabil' half spindle:

• Dimensions: 60 x 8 mm square.

• Designed exclusively for use with FSB female handle, one side of door only.

• Material: Steel with sprung steel anchor clamp.

M4 bolt and sleeve:

• Designed for handles, rosettes and escutcheons.

• Lengths: 45 mm (for doors 41-45 mm thick), 50 mm (for doors 46-50 mm thick).
