This product is no longer available

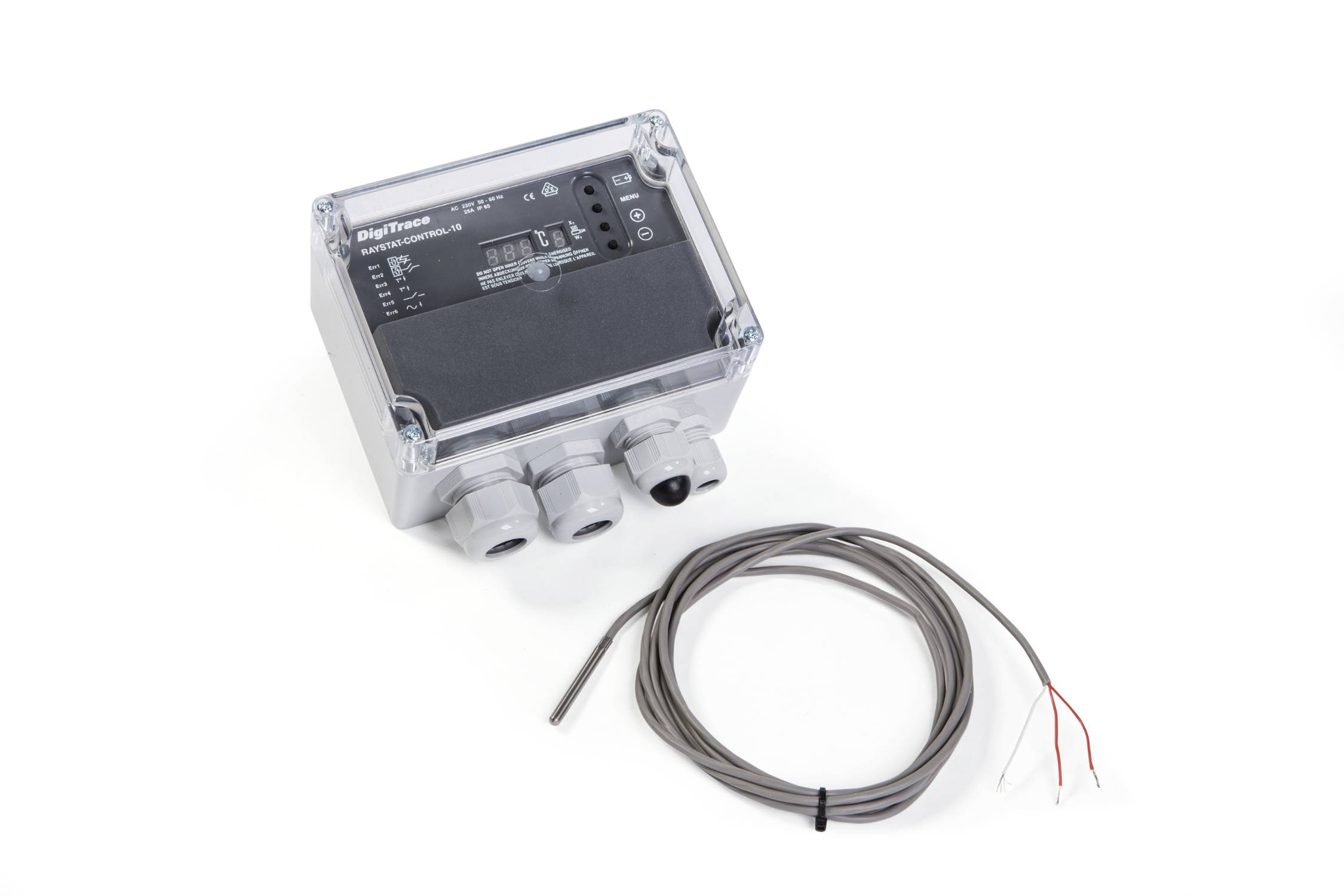

Frost Protection Raystat Control 10 Controller
Description

LPHW Services - Single Circuit, Single Application Controller: This is a line-sensing thermostat for LPHW pipe freeze protection circuits shall be controlled using a programmable, energy-efficient line sensing thermostat, complete with adjustable hysteresis, high and low temperature alarm function, digital display, ‘offsite programming’ without external power supply, 25A switching capacity, sensor and voltage failure alarms, selectable fail safe mode (either ON or OFF), alarm relay for remote BMS monitoring and system error codes for quick diagnostic of system failure.

Size of the Raystat control-10 is 120mm x 160mm x 90mm and is manufactured in Grey Polycarbonate with an ingress rating of IP65 with an approximate weight of 800g. Temperature sensor : Senssor type 3 wire Pt100 according to IEC/Class B, Sensor Head 50mm x 6mm Diameter, Sensor cable is made from Silicone 3m x 4mm Diameter (Sensor Cable can be extended up to 150mm when a cross section of 3 x 1.5mm2 is used. The cable exposure temperature is -40 Deg Cel to +150 Deg Cel (+215 Deg Cel, 1000h Max)

General information
Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2017 1 2.1
Download now from NBS National BIM Library
