Frontslide 100 A (Sliding Shutter Hardware)

Verified by manufacturer 24 days ago

25123

Hawa Sliding Solutions AG Variant:

Hardware for sliding wood, metal or aluminium shutters weighing up to 100 kg.

Jump to:
+41 44 787 17 17 Website

Application

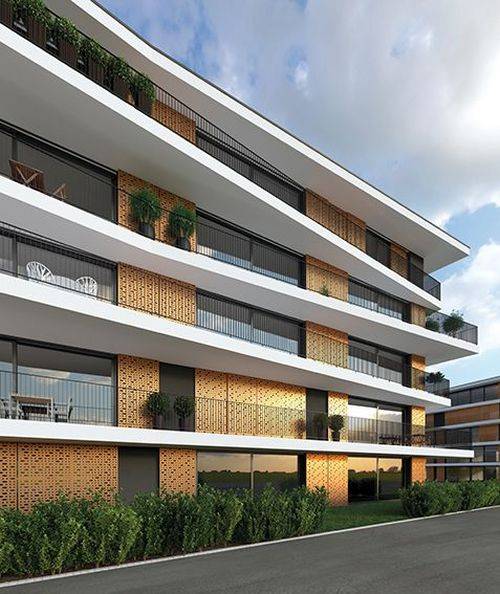

Suitable for facades and areas where screening and shade form part of the facade design, such as:

  • Schools.
  • Hotels.
  • Public buildings.
  • Office and administration premises.
  • Apartment buildings.
  • Low-energy houses.

Description

Hardware for sliding wood, metal or aluminium shutters weighing up to 100 kg.


Features and benefits:

  • Minimum panel width: 500 mm.
  • Maximum height: 3200 mm.
  • Suitable for shutter thickness of 28–50 mm.
  • Manually operated.
  • For attachment to the ceiling or window lintel – the top track screws directly to the loadbearing surface.
  • Aluminium covering screens in either natural anodized or plain finishes ready for custom painting, provide aesthetic appeal and are easily clipped on to the inside or outside of the top track.
  • In buildings with an air gap behind the facade; open window shutters can slide out of sight into the space between the building wall and the facade.
  • Manufactured from corrosion resistant materials.
  • Can be moved into any position.
  • Fast and efficient assembly from below and from the facade side.
  • Clip-on covers for inside or outside attachment.
  • High level of wind resistance (Class 6).


Components:

  • Two-wheeled trolley M10, with plastic wheels.
  • Stainless steel top fixing plate, with hanger bolt M10.
  • Track stop with adjustable retainer.

General information

Color

Grey

Silver

Finish

Anodized

Material

Aluminium

Stainless steel

Top fixing plate.

Steel

Shape

Rectangle

Warranty description

Two year

Uniclass

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

P21/10 Door track and running gear

P21/350 Door track and running gear

Specification data - Door track and running gear

Standard

To EN 13659 and EN 1670.

Third-party certification

Internal testing.

Form

Aluminium, plain anodized, pre-drilled, sliding, manual, top track, lower top track and bottom guide channel.

  • The top track can be installed either with or without covering screens.
  • Lower top track height: 47 mm.

Top track

3500 mm.

6000 mm.

Cut to size.

Insert requirements.

Lower top track

Not required.

Bottom guide channel

6000 mm.

Cut to size.

Insert requirements.

Covering screen

Not required.

Aluminium, plain anodized.

Aluminium, unanodized.

Length

Covering screen.

Not required.

3500 mm.

Plain anodized only.

6000 mm.

Cut to size.

Insert requirements.

Accessories/ Other requirements

Not required.

Catch for sliding shutter.

Stainless steel, with fixing screws.

Cover fixings.

Required for attaching the covering screens.

Connecting bolts.

Floor guide unit, long.

For use with bottom guide channel.

Show more

Shutter

Partial set for one sliding shutter.

Sustainability data

Contains Red List materials

No

Country of material origin

Switzerland

Country of product manufacture

Switzerland

Recyclability

Yes
