Frontier™ Acoustic Raft Blade
Verified by manufacturer 5 months ago
Declare
Certificate type
EPD
Certificate type
Green Tag
Certificate type
HPDC Certification
Certificate type
Acoustic ceiling and wall system
Application
Acoustic absorption for office, education, retail, hospitality, and commercial interiors, open-plan workplaces and learning environments.
Description
An innovative acoustic baffle system designed for targeted sound absorption for ever-changing open-plan workspaces, retail, education, and hospitality applications. Frontier™ allows designers to mix and match colours and styles, create endless configurations, and enjoy quick and stress-free installations. Available as fins or rafts.
Features and benefits:
- Create a more comfortable and personalised experience by tuning the acoustic effect. Simply move the fins or rafts closer together or further apart.
- Mount fins or rafts flush to the ceiling to ‘blend in’, fix them to rails or suspend them using extension rods.
- Frontier can be configured to fit the space perfectly.
- Available in nine styles
- Frontier is installed quickly and efficiently, saving time on site.
- Features an air gap in certain styles for improved acoustic performance
- Sophisticated colour palette
- Carbon neutral
- Made locally
General information
Color | Beige Black Blue Cream Gold Manufacturer guidanceWide range of colours available. |
Finish | Smooth |
Material | Polyester fibre (PET) |
Shape | Rectangle |
Length | 2400 mm |
Width | 1200 mm |
Uniclass | |
CAWS | K40/115 Unit/ modular suspended ceiling system |
Specification data - Sound attenuator infill units
Form | Baffle.Guidance for specification option: Folded. |
Rigidity | Semi rigid. |
Application | Ceiling mounting.Guidance for specification option: For office, education, retail, hospitality, and commercial interiors. |
Material | Polyester fibre (PET). |
Material density | 200 kg/m³. |
Acoustic performance | |
Purpose | Absorber. |
Sound absorption | Class C to BS EN ISO 11654.Guidance for specification option: 300 mm centres. |
Fire performance | |
Reaction to fire | B-s2, d2. |
VOC emissions | 0.092 mg/m³.Guidance for specification option: CDPH Standard Method v1.2-2017: after 14 days, office room scenario. |
Dimensions | |
Size (length x width) | 2400 x 1200 mm. |
Edges | Square. |
Surface pattern | Solid. |
Finish | Smooth. |
Colour | Acros.Guidance for specification option: Light reflectance value: 42. Bosco.Guidance for specification option: Light reflectance value: 29. Empire.Guidance for specification option: Light reflectance value: 6. Falling water.Guidance for specification option: Light reflectance value: 36. Flatiron.Guidance for specification option: Light reflectance value: 25. Galaxy.Guidance for specification option: Light reflectance value: 16. Iron bank.Guidance for specification option: Light reflectance value: 13. Lotus.Guidance for specification option: Light reflectance value: 16. Opera.Guidance for specification option: Light reflectance value: 49. Pavilion.Guidance for specification option: Light reflectance value: 78. Petronas.Guidance for specification option: Light reflectance value: 2. Pinnacle.Guidance for specification option: Light reflectance value: 8. Rosada.Guidance for specification option: Light reflectance value: 45. Savoye.Guidance for specification option: Light reflectance value: 47. Senado.Guidance for specification option: Light reflectance value: 45. Tree House.Guidance for specification option: Light reflectance value: 3. Zenith.Guidance for specification option: Light reflectance value: 22. |
Moisture Absorption (ASTM D570) | 0.4%. Guidance for specification option: By weight (ASTM C1104: 49°C at 95%RH, 4 days). |
Weight | 2400 g/m². |
Noise reduction coefficient | 0.80. Guidance for specification option: 300 mm centres. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Polyester fibre (PET) |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 1.89 kg CO₂ eq/kg |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 60 % Guidance for specification option: Contains minimum 60% recycled polyester fibre. |
Third party certifications
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
Declare
Declare - APA, ASL, Accent, Cube™, Frontier™, Grid Ceiling Tiles, Horizon™, Press Panels, Quietspace® Panel
EPD
Environmental Product Declaration - Cascade™, Cube™, Frontier™, Groove, Horizon™, Lanes™, Lattice™, 3D Ceiling Tiles, 3D Tiles, Grid Ceiling Tiles, Quietspace® Panel, and Vicinity™
Green Tag
Global Green Tag - Cascade™, Composition®, Cove™, Cube™, Frontier™, Grid Ceiling Tiles, Groove, Horizon™, Lanes™, Lattice™, Symphony®, Vicinity™, and Vertiface®
HPDC Certification
Health Product Declaration - Cube™, Cascade®, Frontier®, Horizon™, Grid Ceiling Tiles, Cove™/Loch™, Lattice™, and Vicinity™
Literature
Frontier Install Instructions
Frontier Lookbook

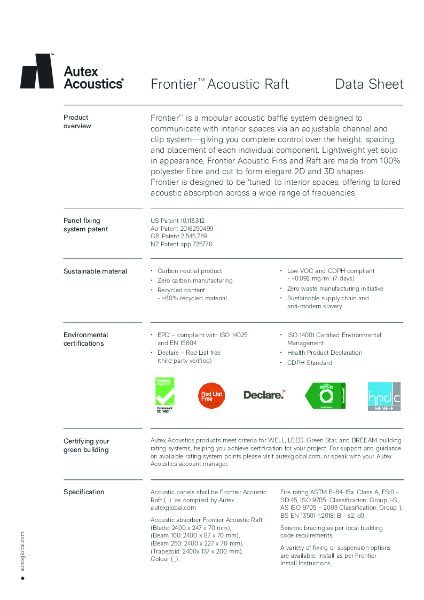

Frontier Raft Datasheet

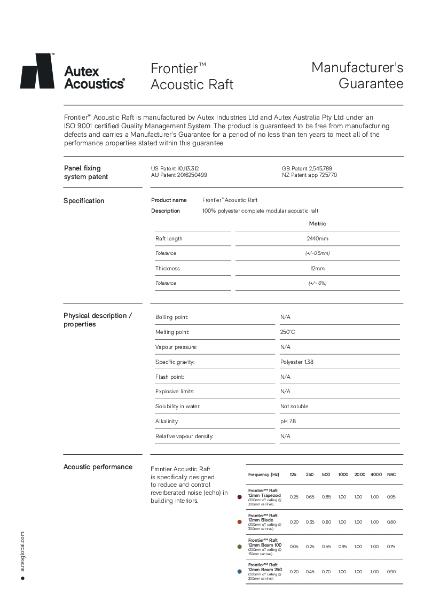

Frontier Raft Manufacturers Warranty
Colour Guide
Case studies

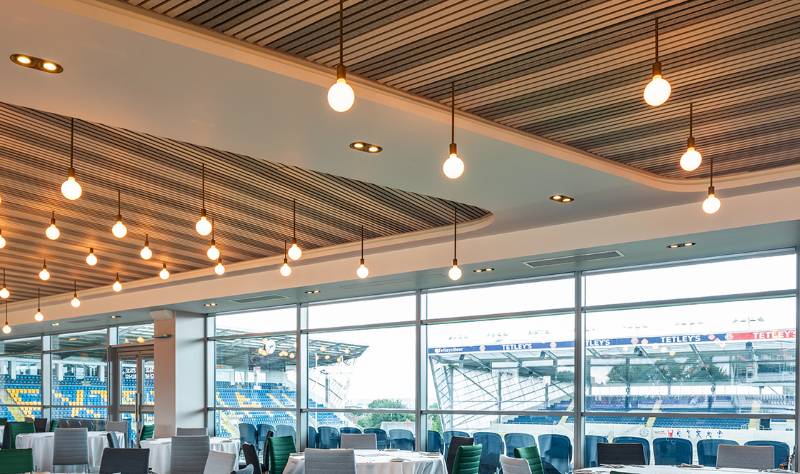

Customisation and bespoke design
Impactful yet adaptable design

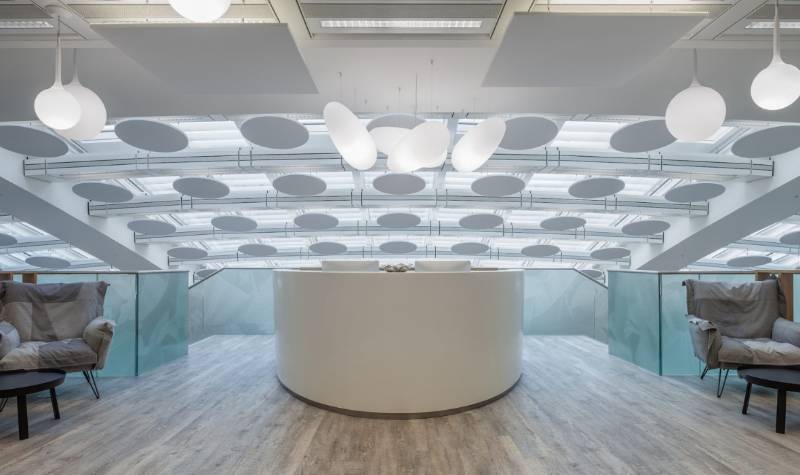

Project Spotlight: Argyll - Luxury coworking space

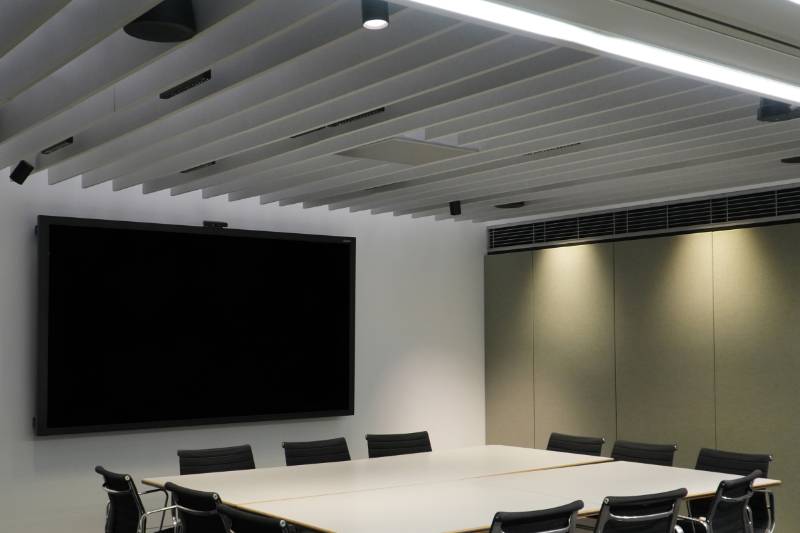

A sound solution for flexible working spaces
