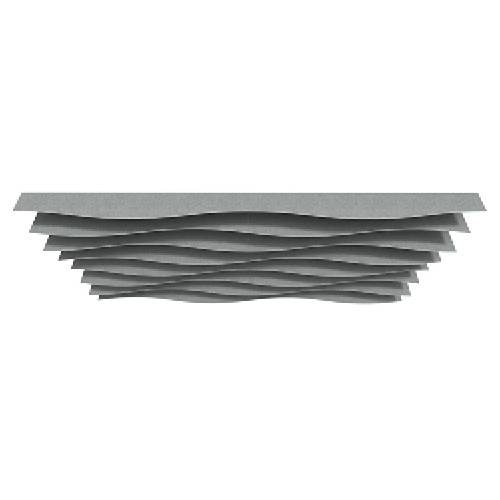

Frontier Acoustic Modular Ceiling System Talus
Verified by manufacturer 3 months ago
Declare
Certificate type
Green Tag
Certificate type
HPDC Certification
Certificate type
Acoustic ceiling and wall system
Application
Acoustic absorption for office, education, retail, hospitality, and commercial interiors, open-plan workplaces and learning environments.
Description
An innovative acoustic baffle system designed for targeted sound absorption for ever-changing open-plan workspaces, retail, education, and hospitality applications. Frontier™ allows designers to mix and match colours and styles, create endless configurations, and enjoy quick and stress-free installations. Available as fins or rafts.
Features and benefits:
- Create a more comfortable and personalised experience by tuning the acoustic effect. Simply move the fins or rafts closer together or further apart.
- Mount fins or rafts flush to the ceiling to ‘blend in’, fix them to rails or suspend them using extension rods.
- Frontier can be configured to fit the space perfectly.
- Available in nine styles
- Frontier is installed quickly and efficiently, saving time on site.
- Features an air gap in certain styles for improved acoustic performance
- Sophisticated colour palette
- Carbon neutral
- Made locally
General information
Color | Beige Black Blue Cream Gold Manufacturer guidanceRange of colours available. |
Finish | Smooth |
Material | Polyester fibre (PET) |
Shape | Rectangle |
Length | 2400 mm |
Width | 1200 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | K40/115 Unit/ modular suspended ceiling system K40/10 Unit/ modular suspended ceilings |
Specification data - Sound attenuator infill units
Form | Baffle. |
Rigidity | Semi rigid. |
Application | Ceiling mounting. |
Material | Polyester fibre (PET). |
Material density | 200 kg/m³. |
Acoustic performance | |
Purpose | Absorber. |
Sound absorption | Class B to BS EN ISO 11654.Guidance for specification option: 100/200 mm centres Class C to BS EN ISO 11654.Guidance for specification option: 300 mm centres |
Fire performance | |
Reaction to fire | To BS EN 13501-1, Class B-s2,d2.Guidance for specification option: 12 mm. |
VOC emissions | 0.01 mg/m³ |
Dimensions | |
Size (length x width) | 2400 x 2400 mm. |
Thickness (overall) | 12 mm. |
Profile | Curved. |
Edges | Square. |
Surface pattern | Solid. |
Colour | Pavilion.Savoye.Opera.Acros.Falling water.Pinnacle.Senado.Bosco.Zenith.Ironbank.Flatiron.Empire.Petronas. |
Design | Axis. Dune. Sierra. Talus. Tundra 100. Manufacturer guidanceBespoke fins are available on request, consult manufacturer and insert requirements. |
Light fastness (to BS EN ISO 105 B02) | Guidance for specification option: Suitable for indoor use only. |
Installation | Refer to Frontier Install Instructions for installation guidelines. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Polyester fibre (PET) |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 1.89 kg CO₂ eq/kg Self declared |
Recyclability | 100 Guidance for specification option: Global GreenTag GreenRate Level A, Declare certified LBC Red List Free, Low VOC and formaldehyde emissions, Contains minimum 60% recycled polyester fibre, 100% recyclable, ISO 14001 certified Environmental Management System (EMS). |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 60 % Guidance for specification option: Minimum 60% post-consumer recycled PET material. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 3 |
 IFC | IFC2X3 | 1 |
Third party certifications
Declare
Declare - APA, ASL, Accent, Cube™, Frontier™, Grid Ceiling Tiles, Horizon™, Press Panels, Quietspace® Panel
Green Tag
Environmental Product Declaration - Cascade™, Cube™, Frontier™, Groove, Horizon™, Lanes™, Lattice™, and Vicinity™
Green Tag
Global Green Tag - Cascade™, Composition®, Cove™, Cube™, Frontier™, Grid Ceiling Tiles, Groove, Horizon™, Lanes™, Lattice™, Symphony®, Vicinity™, and Vertiface®
HPDC Certification
Health Product Declaration - Cube™, Cascade®, Frontier®, Horizon™, Grid Ceiling Tiles, Cove™/Loch™, Lattice™, and Vicinity™
