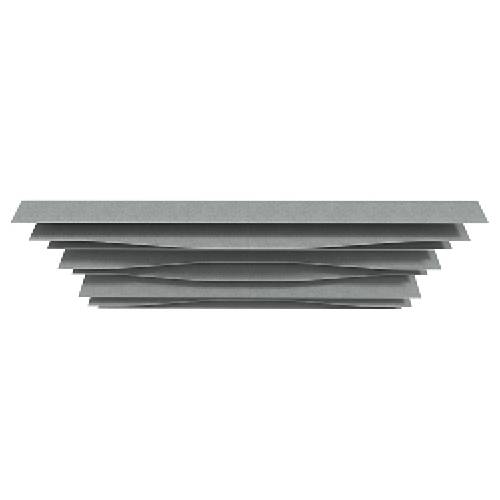

Frontier Acoustic Modular Ceiling System Dune

Verified by manufacturer 1 month ago

Autex Acoustics Ltd Third party certifications:
  • Declare

    Declare

    Certificate type

  • Green Tag

    Green Tag

    Certificate type

  • HPDC Certification

    HPDC Certification

    Certificate type

Acoustic ceiling and wall system

Jump to:
BOS
+44 (0)1422 418 899 Website

Application

Acoustic absorption for office, education, retail, hospitality, and commercial interiors, open-plan workplaces and learning environments.

Description

An innovative acoustic baffle system designed for targeted sound absorption for ever-changing open-plan workspaces, retail, education, and hospitality applications. Frontier™ allows designers to mix and match colours and styles, create endless configurations, and enjoy quick and stress-free installations. Available as fins or rafts.


Features and benefits:

  • Create a more comfortable and personalised experience by tuning the acoustic effect. Simply move the fins or rafts closer together or further apart.
  • Mount fins or rafts flush to the ceiling to ‘blend in’, fix them to rails or suspend them using extension rods.
  • Frontier can be configured to fit the space perfectly.
  • Available in nine styles
  • Frontier is installed quickly and efficiently, saving time on site.
  • Features an air gap in certain styles for improved acoustic performance
  • Sophisticated colour palette
  • Carbon neutral
  • Made locally

General information

Color

Beige

Black

Blue

Cream

Gold

Show more

Manufacturer guidance

Range of colours available.

Finish

Smooth

Material

Polyester fibre (PET)

Shape

Rectangle

Length

2400 mm

Width

1200 mm

Warranty description

Ten year

Uniclass

Pr_35_93_13_80 Sound attenuator infill unitsPrimary
Ss_30_25_22_01 Acoustic baffle suspended ceiling systems

CAWS

K40/115 Unit/ modular suspended ceiling system

K40/10 Unit/ modular suspended ceilings

Specification data - Sound attenuator infill units

Form

Baffle.

Rigidity

Semi rigid.

Application

Ceiling mounting.

Material

Polyester fibre (PET).

Material density

200 kg/m³.

Guidance for specification option:

12 mm

150 kg/m³.

Guidance for specification option:

24 mm.

Acoustic performance

-

Purpose

Absorber.

Sound absorption

Class B to BS EN ISO 11654.

Guidance for specification option:

100/200 mm centres

Class C to BS EN ISO 11654.

Guidance for specification option:

300 mm centres

Fire performance

-

Reaction to fire

To BS EN 13501-1, Class B-s2,d2.

VOC emissions

0.092 mg/m³.

Guidance for specification option:

CDPH Standard Method v1.2-2017: after 14 days, office room scenario

Dimensions

-

Size (length x width)

2112 x 2400 mm.

Thickness (overall)

12 mm.

Profile

Curved.

Edges

Square.

Surface pattern

Solid.

Colour

Pavilion.

Savoye.

Opera.

Acros.

Falling water.

Pinnacle.

Senado.

Bosco.

Zenith.

Ironbank.

Flatiron.

Empire.

Petronas.

Design

Axis.

Dune.

Sierra.

Talus.

Tundra 100.

Show more

Manufacturer guidance

Bespoke fins are available on request, consult manufacturer and insert requirements.

Light fastness (to BS EN ISO 105 B02)

-

Manufacturer guidance

Suitable for indoor use only.

Installation

Refer to Frontier Install Instructions for installation guidelines.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Polyester fibre (PET)

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

1.89 kg CO₂ eq/kg

Self declared

Recyclability

yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

60 %

Guidance for specification option:

Minimum 60% post-consumer recycled PET material.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2016

3

IFC

IFC2X3

1

Third party certifications

Declare

Declare

Declare - APA, ASL, Accent, Cube™, Frontier™, Grid Ceiling Tiles, Horizon™, Press Panels, Quietspace® Panel

Green Tag

Green Tag

Environmental Product Declaration - Cascade™, Cube™, Frontier™, Groove, Horizon™, Lanes™, Lattice™, and Vicinity™

Green Tag

Green Tag

Global Green Tag - Cascade™, Composition®,  Cove™, Cube™, Frontier™, Grid Ceiling Tiles, Groove, Horizon™, Lanes™, Lattice™, Symphony®, Vicinity™, and Vertiface®

HPDC Certification

HPDC Certification

Health Product Declaration - Cube™, Cascade®, Frontier®, Horizon™, Grid Ceiling Tiles, Cove™/Loch™, Lattice™, and Vicinity™
