Freshfield Lane Synthesis S20 Clay Brick

Verified by manufacturer 4 months ago

Michelmersh Brick Holdings PLC Third party certifications:
  • EnMS ISO 50001

    EnMS ISO 50001

    Certificate type

  • BES 6001

    BES 6001

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

Synthesis S20 215 x 102.5 x 65 mm is a clay facing brick available from Freshfield Lane.

Jump to:
+44 (0)844 931 0022 Website

Application

Suitable for contemporary brickwork.

Description

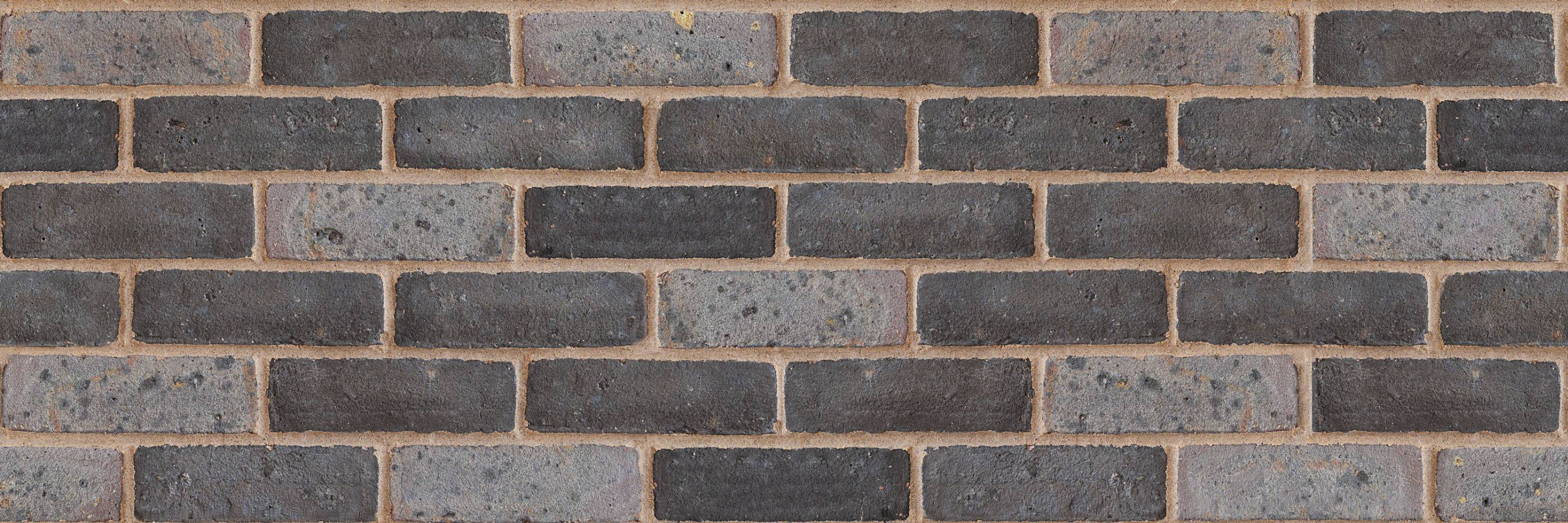

215 x 65 x 102.5 mm Facing brick available from Freshfield Lane Synthesis, widely used for contemporary brickwork, offering a mixed mosaic pattern of varied colours, complementing a vast array of architectural styles.

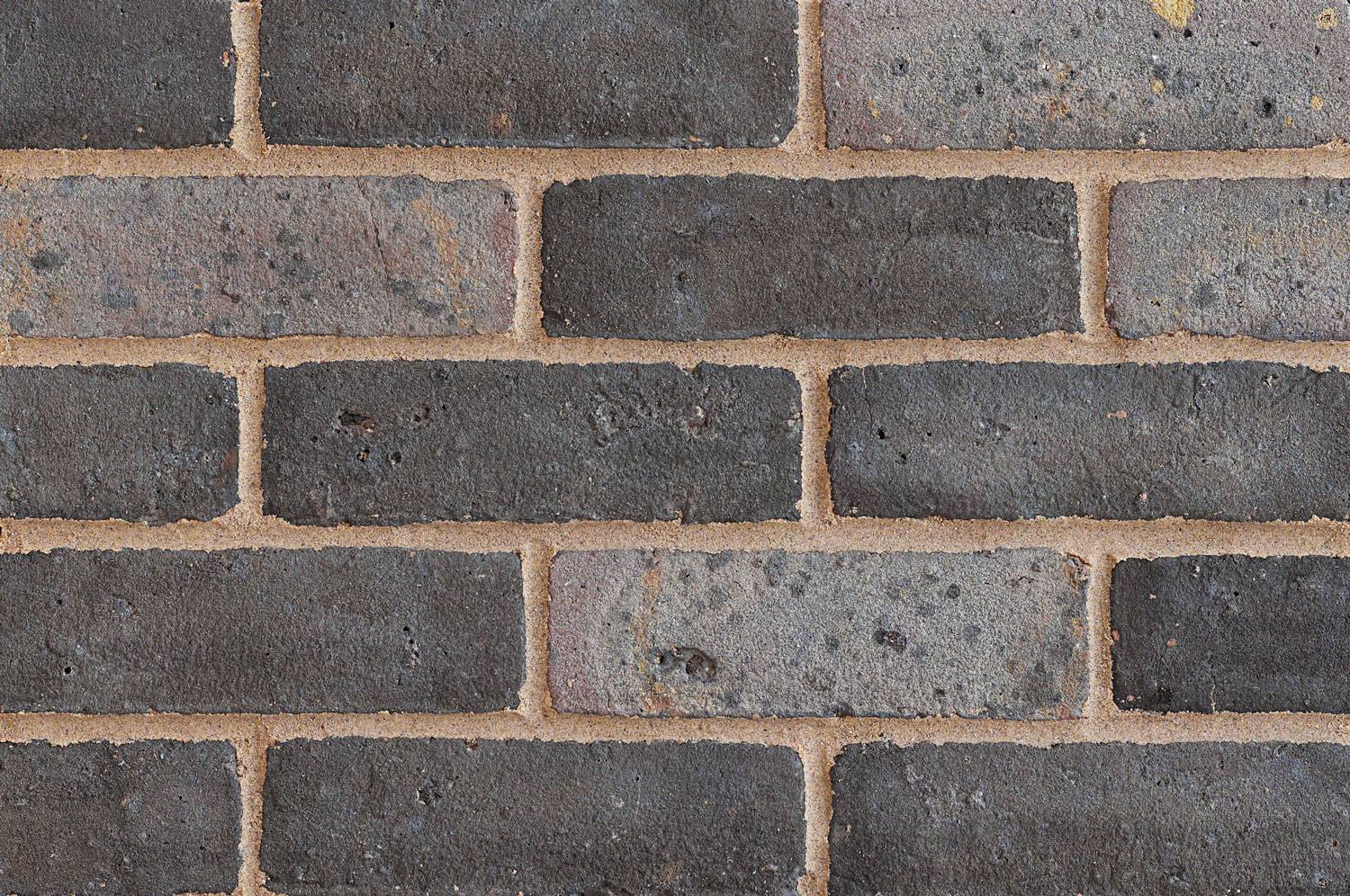

This clamp-fired stock facing brick is a mix of light grey and dark grey colours, sandfaced texture and offers exceptional technical specifications of T2, R1, F2, S2 and a compressive strength of 27 N/mm².


Features and benefits:


  • Freshfield Lane, based in Danehill, Sussex produces a varied selection of clamp-fired stock facing bricks in a range of appealing colours, either with machine made or a handmade variety of rich textural finishes.
  • Freshfield Lane manufacturers a full range of special shaped bricks and clay pavers.
  • Freshfield Lane products from MBH PLC are manufactured in accordance with the requirements of British Standards BS EN 771-1 and BS 4729 and BS EN 1344 for pavers.
  • The Freshfield Lane range offers outstanding properties of total durability, being F2 rated and fully frost resistant.

General information

Color

Black

Red

Guidance for specification option:

Red multi.

Finish

Sandfaced

Material

Clay

Shape

Rectangle

Length

215 mm

Width

102.5 mm

Height

65 mm

Uniclass

Pr_20_93_52_15 Clay bricksPrimary

CAWS

F10/110 Clay facing brickwork

C41/260 Bricks

C41/260 Bricks

Product range

Synthesis
Freshfield Lane

Specification data - Clay bricks

Standard

To BS EN 771-1.

Brick description

Facing brick.

Appearance

Stock, sand faced, red, black.

Work size (length x width x height)

215 x 102.5 x 65 mm.

Tolerances

-

Mean value

T2.

Range

R1.

Compressive strength

-

Mean compressive strength (minimum)

27 N/mm².

Durability designation

F2.

Density

-

Gross dry

1460 kg/m³.

Net dry

1690 kg/m³.

Tolerance

D1.

Water absorption

<12%.

Guidance for specification option:

Initial rate of water absorption (kg/m².min): 2.5.

Configuration

Group 1.

Guidance for specification option:

Frogged clay facing brick.

Thermal conductivity

0.45 W/m·K (50%), 0.51 W/m·K (90%).

Thermal resistance

0.23 m² K/W (50%), 0.2 m² K/W (90%).

Water vapour permeability

5/10.

Bond strength

0.15 N/mm².

Guidance for specification option:

Fixed value.

Reaction to fire

Class A1.

Active soluble salts

S2.

Third-party certification

BES 6001; ISO 9001; ISO 14001 and ISO 50001.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100%

Guidance for specification option:

Can be reused, 100% recyclable.

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

EnMS ISO 50001

EnMS ISO 50001

ISO 50001 - Energy Management

BES 6001

BES 6001

BES6001 - Responsible Sourcing

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001 - Environmental Management

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001 - Quality Management

Literature

Freshfield_Lane_Brochure_2022

Freshfield_Lane_Brochure_2022
