Application

For use in bathroom areas.

Description

A range of grab rails which provides sure and positive grip in the shower and ease of movement in and out of a bath. Hinged support rails are designed to support the hand and arm. The support arm can be locked in a vertical position when not in use.

Features and benefits:

  • Routered and insulated.
  • Concealed ABS (acrylonitrile butadiene styrene) flanges.
  • Hinges allow support rails to be locked in a vertical position when not in use, thereby saving space.

Applications:

For use in bathroom areas.

General information
Finish

Powder coated

Material

Aluminium

Uniclass 2015
Pr_40_20_76_84 Support railsPrimary
CAWS

N13/436 Handrails and grab bars

Specification data - Support rails
Product Reference

DF 5781

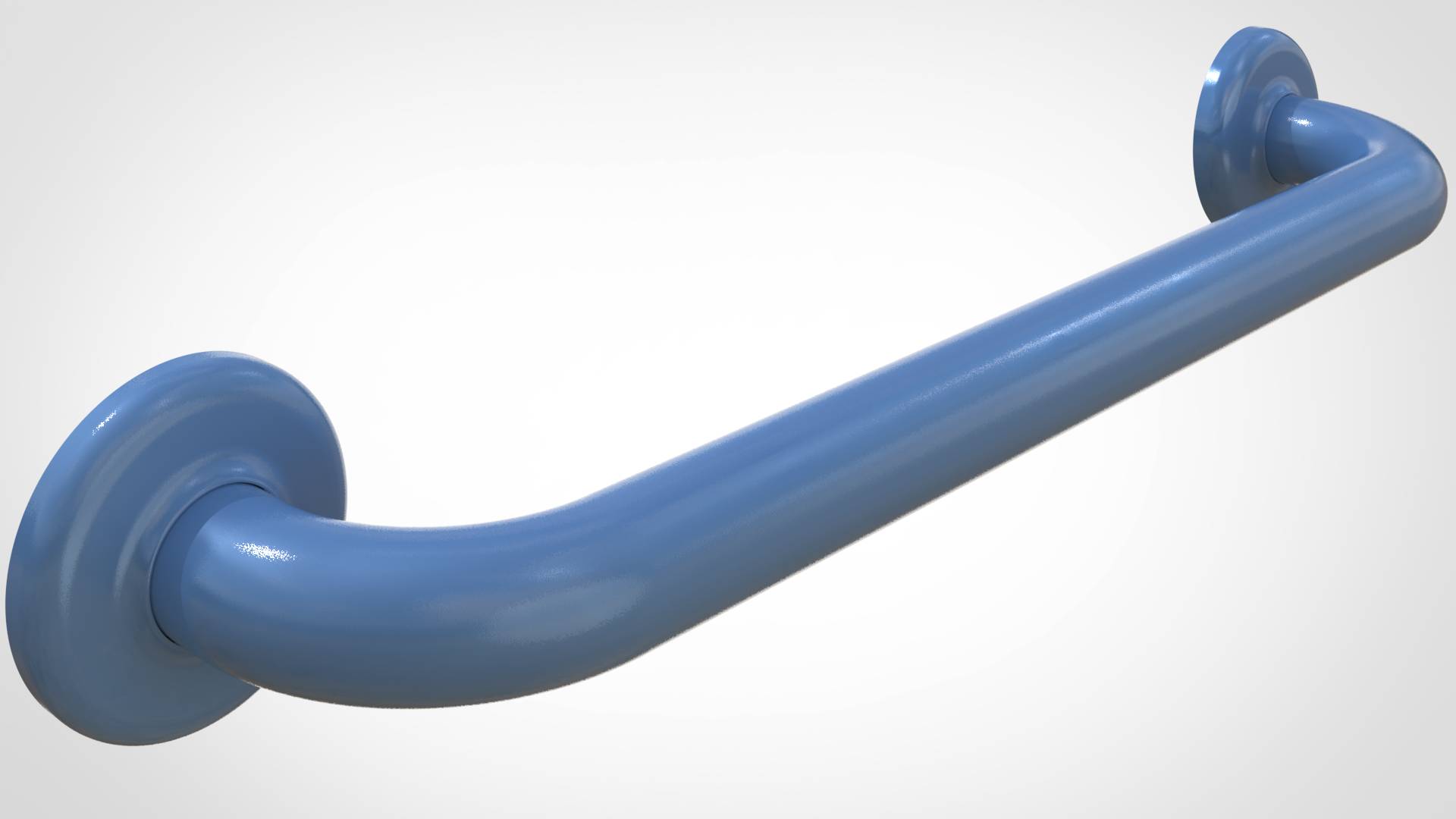

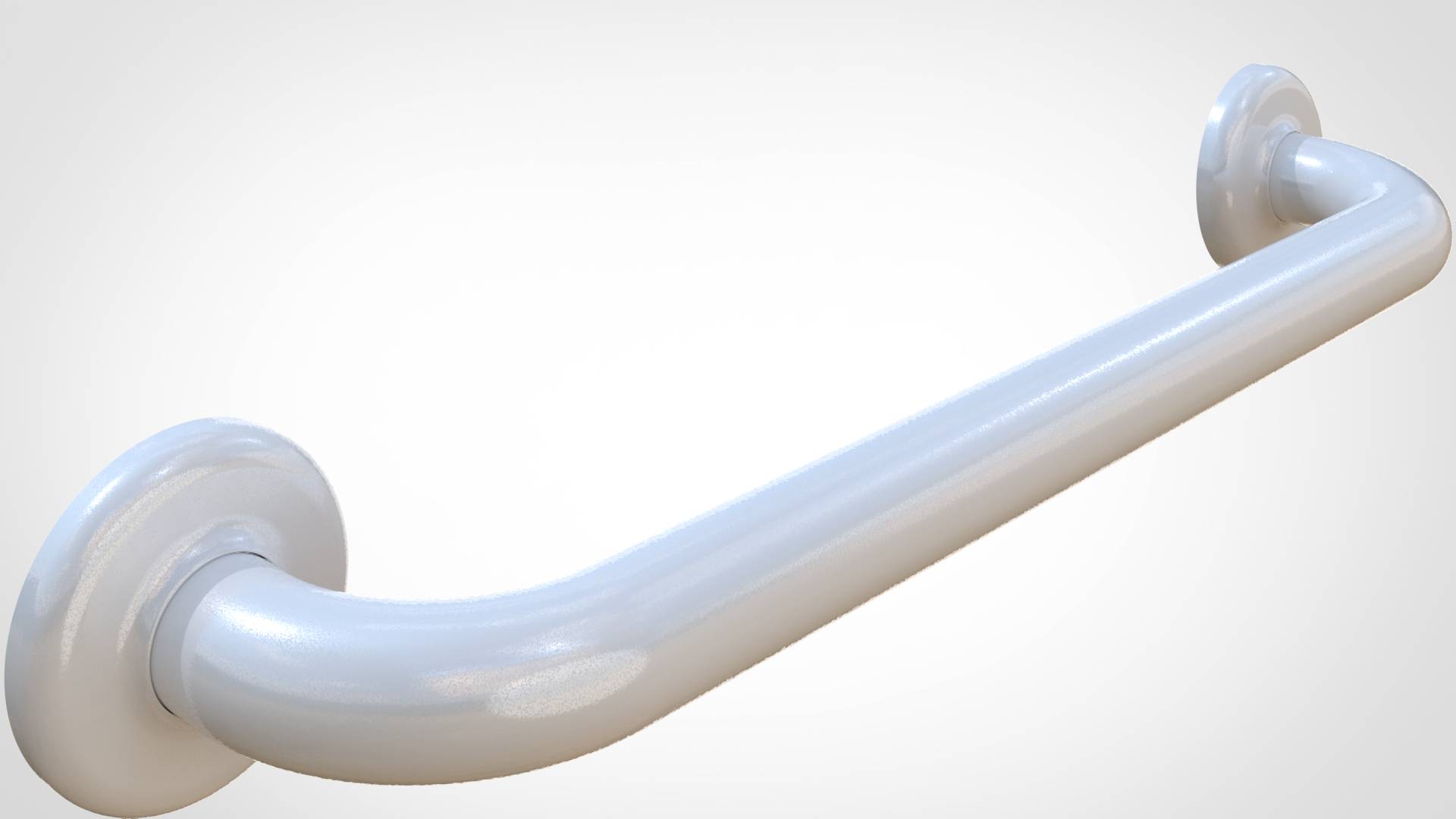

Grab rail, available 300, 450 or 600 mm long.

DF 5806

Hinged support rail, available 650, 750, 800 or 850 mm long, 78 mm high.

DF 6083

Grab rail, 400 mm + 400 mm length, 160° angle.

DF 6098

Grab rail, left hand, 450 x 600 mm (w x h).

DF 6099

Grab rail, right hand, 450 x 600 mm (w x h).

DF 6106

Hinged support rail, available 650, 750, 800 or 850 mm long, 156 mm high.

Length

300 mm

For DF 5781 only.

450 mm

For DF 5781 only.

600 mm

For DF 5781 only.

650 mm

For DF 5806 and DF 6106 only.

750 mm

For DF 5806 and DF 6106 only.

800 mm

For DF 5806 and DF 6106 only.

850 mm

For DF 5806 and DF 6106 only.

Manufacturer's standard

For DF 6083, DF 6098 and DF 6099.

Support

Not required

DF 9911

Height adjustable wall support, for use with DF 5806 and DF 6101, 120 x 460 mm (w x h).

DF 9912

Floor fixed support, for use with DF 5806 and DF 6101, 100 x 100 x 700 mm (d x w x h).

Colour

Anthracite Grey - RAL 7016

Chrome

Melon Yellow - RAL 1028

Metalique

Pale Green - RAL 6021

Pigeon Blue - RAL 5014

Pure White - RAL 9010

Sky Blue - RAL 5015

Traffic Purple - RAL 4006

Traffic Red - RAL 3020

Wine Red - RAL 3005

Yellow Green - RAL 6018

Special order

Insert requirement, bespoke colours are available on request.

Accessories

None

Leg

For DF 5806 and DF 6106 only.

Toilet roll holder

For DF 6106 only.

Standard product features

Material:

Aluminium.

Finish:

Powder coated.

Loadbearing capacity:

100 kg recommended maximum user load (tested up to 175 kg).
