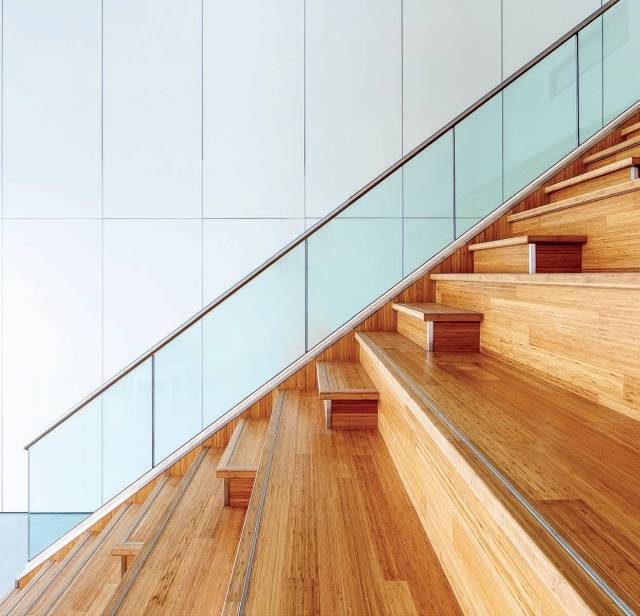

Frameless Glass Balustrade Top and Side Mount Model 6010_6011

Frameless Glass Balustrade Top and Side Mount Model 6010_6011

OnLevel Ltd

Frameless glass top and side mount balustrade system for line loading in accordance with BS 6180:2011 of 0.74 kN.

Jump to:
+44 (0)161 8049500 www.onlevel.com
Application

Suitable in both interior and exterior applications in private, commercial and public areas. Also suitable for:

  • Model, TL-6010: Concealed installations. If used in conjunction with structural connection profiles, application versatility will increase – consult manufacturer for details.
  • Model, TL-6011: Simple installations without screed, onto steel or concrete.

Description

Frameless glass top and side mount balustrade system for line loading in accordance with BS 6180:2011 of more than 0.74 kN.

Features and benefits:

  • Quick and simple mounting.
  • A variety of finishes are available.
  • Suitable for glass thicknesses between 12 and 21.52 mm.
  • Includes drainage holes and extension pin holes.
  • Slimline design which remains almost invisible.
  • Low maintenance.
  • Cost effective.
  • OnLevel Flex-Fit glass adjustment tool included.
  • CE-marked, and manufactured in accordance with BS 6180 and BS EN 1090-1 and 3 (EXC 3).

Applications:

Suitable in both interior and exterior applications in private, commercial and public areas. Also suitable for:

  • Model, TL-6010: Concealed installations. If used in conjunction with structural connection profiles, application versatility will increase – consult manufacturer for details.
  • Model, TL-6011: Simple installations without screed, onto steel or concrete.

General information
Size

1270 mm (maximum height, TL-6010), or 1150 mm (maximum height, TL-6011). Consult manufacturer and insert requirements.

Uniclass 2015
Ss_25_60_05_05 Balustrade and guarding systemsPrimary
CAWS

L30/50 Purpose-made balustrades

L30/55 Proprietary balustrades

L30/550 Purpose-made balustrades

L30/560 Proprietary balustrades

Specification data - Balustrade and guarding systems
Product Reference

Frameless Glass Balustrade Top Mount Model, TL-6010

Frameless Glass Balustrade Side Mount Model, TL-6011

With integrated multifunctional chamber included for enabling larger drilling distances.

Type

See 'Options' below and insert requirements.

Size

1270 mm (maximum height, TL-6010), or 1150 mm (maximum height, TL-6011). Consult manufacturer and insert requirements.

Cover

Required

Not required

Cover cap

Required

For TL-6011 only.

Not required

Glass adjustment

Flex-Fit 1.0 kN

Insert size requirements.

Accessories/ Other requirements

Not required

Blanking plug

For TL-6011 only. 10 required per 2500 mm.

Extension pin

For TL-6011 only.

Fischer fixing anchor FH 12/50

For TL-6010 only. 17 required per 2500 mm.

Fischer fixing anchor FH II 12/15

For TL-6011 only. 10 required per 2500 mm.

Spacer

17 required per 2500 mm for (TL-6010), 10 required per 2500 mm (TL-6011).

Standard product features

Line loading in accordance with BS 6180:2011:

0.74 kN.

Product Options

Type:

Consult manufacturer for appropriate sizes and insert product reference above. All items are one-piece units.

- Cover strip:

Frameless Glass Balustrade Side Mount Model, TL-6011:

With mounting strips. For use with a cover cap.

  • 2500 mm: Available in plain aluminium (10.6011.202.11).
  • 5000 mm: Available in mill finish (10.6011.205.10), plain aluminium (10.6011.205.11), stainless steel effect (10.6011.205.12), and coloured (10.6011.205.13).

- End cap for staircase with cover strip, left:

Frameless Glass Balustrade Side Mount Model, TL-6011:

Available in mill finish (10.6011.411.10), plain aluminium (10.6011.411.11), stainless steel effect (10.6011.411.12) and coloured (10.6011.411.13).

- End cap for staircase with cover strip, right:

Frameless Glass Balustrade Side Mount Model, TL-6011:

Available in mill finish (10.6011.461.10), plain aluminium (10.6011.461.11), stainless steel effect (10.6011.461.12) and coloured (10.6011.461.13).

- End cap for staircase, left/ right:

Can be cut to size.

Frameless Glass Balustrade Top Mount Model, TL-6010:

Available in mill finish (10.6010.491.10), plain aluminium (10.6010.491.11), stainless steel effect (10.6010.491.12) and coloured (10.6010.491.13).

- End cap with cover strip, left:

Frameless Glass Balustrade Side Mount Model, TL-6011:

Available in mill finish (10.6011.410.10), plain aluminium (10.6011.410.11), stainless steel effect (10.6011.410.12) and coloured (10.6011.410.13).

- End cap with cover strip, right:

Available in mill finish (10.6011.460.10), plain aluminium (10.6011.460.11), stainless steel effect (10.6011.460.12) and coloured (10.6011.460.13).

- End cap, left:

Frameless Glass Balustrade Side Mount Model, TL-6011:

Available in mill finish (10.6011.400.10), plain aluminium (10.6011.400.11), stainless steel effect (10.6011.400.12) and coloured (10.6011.400.13).

- End cap, left staircase:

Frameless Glass Balustrade Side Mount Model, TL-6011:

Available in mill finish (10.6011.401.10), plain aluminium (10.6011.401.11), stainless steel effect (10.6011.401.12) and coloured (10.6011.401.13).

- End cap, left/ right:

Frameless Glass Balustrade Top Mount Model, TL-6010:

Available in mill finish (10.6010.490.10), plain aluminium (10.6010.490.11), stainless steel effect (10.6010.490.12) and coloured (10.6010.490.13).

- End cap, right:

Frameless Glass Balustrade Side Mount Model, TL-6011:

Available in mill finish (10.6011.450.10), plain aluminium (10.6011.450.11), stainless steel effect (10.6011.450.12) and coloured (10.6011.450.13).

- End cap, right staircase:

Frameless Glass Balustrade Side Mount Model, TL-6011:

Available in mill finish (10.6011.451.10), plain aluminium (10.6011.451.11), stainless steel effect (10.6011.451.12) and coloured (10.6011.451.13).

- Glass profile:

Frameless Glass Balustrade Top Mount Model, TL-6010:

  • 120 x 50 mm (h x w).
  • 2500 mm (l): Available in plain aluminium (10.6010.002.11).
  • 5000 mm (l): Available in mill finish (10.6010.005.10), plain aluminium (10.6010.005.11), stainless steel effect (10.6010.005.12), and coloured (10.6010.005.13).

Frameless Glass Balustrade Side Mount Model, TL-6011:

  • 140 x 51 mm (h x w).
  • 2500 mm (l): Available in plain aluminium (10.6011.002.11).
  • 5000 mm (l): Available in mill finish (10.6011.005.10), plain aluminium (10.6011.005.11), stainless steel effect (10.6011.005.12), and coloured (10.6011.005.13).

- Inside corner, 90°:

Frameless Glass Balustrade Side Mount Model, TL-6011:

  • Side length is 149 mm (inside), and 200 mm (outside).
  • Available in mill finish (10.6011.300.10), plain aluminium (10.6011.300.11), stainless steel effect (10.6011.300.12) and coloured (10.6011.300.13).

- Inside/ outside corner, 90°:

Frameless Glass Balustrade Top Mount Model, TL-6010:

  • Side length is 150 mm (inside), and 200 mm (outside).
  • Available in mill finish (10.6010.390.10), plain aluminium (10.6010.390.11), stainless steel effect (10.6010.390.12) and coloured (10.6010.390.13).

- Outside corner, 90°:

Frameless Glass Balustrade Side Mount Model, TL-6011:

  • Side length is 149 mm (inside), and 200 mm (outside).
  • Available in mill finish (10.6011.350.10), plain aluminium (10.6011.350.11), stainless steel effect (10.6011.350.12) and coloured (10.6011.350.13).

- Glass adjustment:

Adjustment of up to 34 mm in relation to the vertical axis. Available in 2500, 5000 or 25 000 mm.

Accessories/ Other requirements:

- Blanking plug:

Various colours and diameters are available. Consult manufacturer and insert requirements.

- Fischer fixing anchor FH 12/50:

  • Head diameter: 21.5 mm. 125 mm in length.
  • Interior application: Zinc-plated steel (91.3511.250.81).
  • Exterior application: V4A (91.3511.250.30).

- Fischer fixing anchor FH II 12/15:

  • Interior application: Zinc-plated steel (91.3511.215.81).
  • Exterior application: V4A (91.3511.215.30).

- Spacer:

  • 65 x 18 x 55 mm (l x h x w). Inner drill hole: 14 mm.
  • Available in mill finish (10.6010.500.10 or 10.6011.500.10), plain aluminium (10.6010.500.11 or 10.6011.500.11), stainless steel effect (10.6010.500.12 or 10.6011.500.12), and coloured (10.6010.500.13 or 10.6011.500.13).
