FR90EI - Fire Rated Door
Verified by manufacturer 1 day ago
FR90 Door - EI30
FR90 Door - EI30
A flush rebated leaf and frame arrangement with fixed pane frame options.
Application
- Commercial buildings.
- Industrial facilities.
- Healthcare and education sectors.
- High-security applications.
Description
FR90EI fire-rated door has a flush rebated leaf and frame arrangement with fixed pane frame options. It can be used as an open-out or open-in door in single or double-leaf arrangements.
The door and door frames are extruded from aluminium alloy and comply with the recommendations of BS EN 12020-2:2001 and BS 755-9:2001.
Profiles can be electrostatic powder-coat finished in a range of RAL colours, with the option of bi-colour (different internal and external colours). Other finishes include anodized in satin. Powder-coated wood structure finishes are available on request.
Doors are manufactured according to customer requirements from a range of standard profiles that include an internal gypsum core and are designed to incorporate a range of options; therefore, it is advisable to contact Smart Systems' technical design department early in the design process.
Features and benefits:
- 90 mm installation depth.
- EI30–EI90 fire ratings.
- Single/ double door configurations.
- Mineral wool/ gypsum panel options.
- Multi-point locking systems.
- Threshold/ threshold-free options.
- Full RAL colour range, including wood and stone effects.
General information
Color | Other Guidance for specification option: Full RAL colour range including wood and stone effects. |
Finish | Powder-coated Anodized |
Material | Aluminium |
Shape | Rectangle |
Length | 90 mm Manufacturer guidanceDepth. |
Width | Bespoke Manufacturer guidanceEI30 maximum width 1541 mm. EI60 maximum width 1340 mm. |
Height | Bespoke Manufacturer guidanceEI30 maximum height 2806 mm. EI60 maximum height 2735 mm. |
Warranty description | 25 year |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets |
Specification data - Aluminium doorsets
Classification data | |
Configuration | Double-leaf, single-action. Single-leaf, single-action. |
Doorset size | Manufacturer guidanceInsert requirements or refer to a drawing or schedule.
|
Performance | |
Fire resistance | |
Integrity | 30 minutes. |
Insulation | 30 minutes. |
Acoustic performance | Up to 47 dB. |
Thermal | Manufacturer guidanceConsult manufacturer and insert requirements. Frame: From 2.145 W/m²K. |
Intruder resistance | |
Minimum requirement | Not required. Manufacturer guidanceSystem currently not tested to PAS24. Includes hardware from PAS24 certified systems. |
Frame | |
Material | Aluminium. Manufacturer guidanceDoor and door frames are extruded from aluminium alloy 6060/6063 T5/T6 and comply with the recommendations of BS EN 12020-2:2001/ BS 755-9:2001. |
Threshold | Not required. Required. |
Perimeter seals or inserts | EPDM weatherseal. |
Finish | |
Coating | Powder-coated. Anodized. Manufacturer guidanceProfiles can be electrostatic powder coat finished in a range of RAL colours to APA Qualicoat guidelines with the option of bi-colour, different internal and external colours. Other finishes include anodized in satin with EWAA/ EURAS-Qualanod quality label. Powder-coated woodstructure finishes are available on request. |
Texture | Manufacturer's standard. |
Colour | Manufacturer guidanceFull RAL colour range including wood and stone effects. Consult manufacturer and insert requirements. |
Door leaf | |
Thickness | 90 mm. |
Core | Gypsum. |
Panel details | Not required. Mineral wool filled panels. Gypsum filled panels. Manufacturer guidanceMineral wool or gypsum panel options are available, consult manufacturer for details. |
Material | Aluminium. |
Lippings | Manufacturer's standard. |
Perimeter seals | Weather. |
Glazing | |
Type | Manufacturer's standard. Manufacturer guidanceGlazing conforms to the requirements of BS 6262 and Part N of the Building Regulations for both thickness and type. Beads and gaskets will accommodate up to 60 mm glazing thickness. |
Beading | |
Type | External and internal. |
Material | Extruded aluminium beads and EPDM extruded gaskets. |
Fixing | Snap in. |
Finish | |
Coating | Powder-coated. Anodized. |
Texture | Manufacturer's standard. |
External colour | Manufacturer guidanceFull RAL colour range including wood and stone effects. Consult manufacturer and insert requirements. |
Internal colour | Manufacturer guidanceFull RAL colour range including wood and stone effects. Consult manufacturer and insert requirements. |
Film thickness (minimum) | Manufacturer's standard. |
Hardware | Aluminium knuckle hinges. Aluminium face hinges. One-point locking mechanism. Three-point locking mechanism. Electric door strikes. Panic hardware. |
Perimeter edge/ thermal break | Polyamide thermal break. Guidance for specification option: Thermal breaks are formed with polyamide strips PA 6.6 25 reinforced with glass fibre sections capable of withstanding temperatures up to 200°C for over painting. |
Air permeability | To EN 12207, Class 4. |
Watertightness | To EN 12208, Class A4. |
Resistance to wind load | To EN 12210, Class C1. |
Sustainability data
Material | Aluminium |
Literature

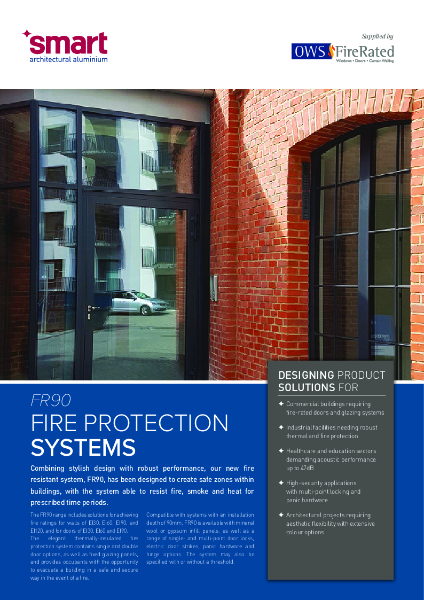

FR90 Fire protection systems
