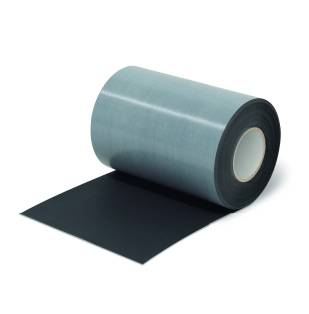

FR Window & Door Sealing Membrane + Black SA (ME020)
Verified by manufacturer 1 day ago
Fire rated self-adhesive perimeter membrane for window and door sealing.
Application
Suitable for use in windows and doorway applications.
Description
illbruck FR Window & Door Sealing Membrane + Black SA (ME020), is a Class B, self-adhesive, permanently UV resistant, high strength polyester, airtight and fully watertight membrane used as a perimeter membrane seal to the external side of glazed units such as windows and doors. It also provides an air and watertight seal over the construction joints.
Features and benefits:
- Self-adhesive for fast and easy application.
- Class B-s1, d0 to EN 13501-1.
- Permanently UV resistant with open jointed cladding systems.
- Water resistant to EN 1928 at a 2 kPa head of water for 24 hours.
- Easy to apply, fold, and manipulate.
- Airtight and can achieve Passiv Haus standards.
- High range of in-service temperature resistance.
- Environmentally friendly EC1+.
- High strength.
General information
Color | Black |
Finish | Unfinished |
Material | Polyester |
Shape | Other |
Length | 25000 mm |
Width | 60 mm 100 mm 150 mm 200 mm 250 mm |
Height | 0.45 mm |
Uniclass | |
CAWS | H92/785 Breather membrane L20/820 Sealant joints P10/65 Breather membrane L10/810 Sealant joints P10/320 Breather membrane L10/75 Sealant joints L20/80 Sealant joints |
SKU Code | ME020 |
Specification data - Vapour-permeable sheets
Classification data | |
Standard | To BS EN 13859-2. |
Class (minimum) | W1. |
Performance criteria | |
Water vapour properties | Water vapour resistance to BS EN ISO 12572, 1 MNs/g. Water vapour transmission to EN ISO 12572, Sd = 0.20 m. Driving rain resistance to EN 1027, >600 Pa. |
Fire performance | Reaction to fire: To BS EN 13501-1, Class B-s1, d0. |
Tensile properties | Tensile strength to BS EN 12311-1, >360 N/50 mm (longitudinal); >240 N/50 mm (transverse). Guidance for specification option: >75% (after ageing). |
Environmental performance requirements | |
Environmental rating | EC1+. |
Material | Polyester. |
Form | Non-woven. |
Weight (minimum) | 270 g/m². |
Thickness (minimum) | 0.45 mm. |
Roll length | 25 m. |
Roll width | 60 mm. 100 mm. 150 mm. 200 mm. 250 mm. 300 mm. 350 mm. |
Dimensional stability | To EN 1107-2, <1%. |
Tear resistance | To EN 12310-1, >160 N (longitudinal); >190 N (transverse). |
Air permeability | To EN 12114, ≤0.1 m³/m².h at 50 Pa. |
UV resistance | To EN 1296/97, 12 months (exposed); permanent (covered). Guidance for specification option: Including open joints maximum 50 mm. |
Elongation | Elongation to BS EN 12311-1, <25% (longitudinal); <25% (transverse). |
Application temperature | +5°C to +30°C. |
Service temperature | -40°C to +100 °C. |
Sustainability data
Material | Polyester |
