Foss Recessed Trim Adjustable Modular Linear Lighting

Compare

Favourite

Foss Recessed Trim Adjustable Modular Linear Lighting

Name: Foss Recessed Trim Adjustable Modular Linear Lighting
Brand: hsLuFgmRUF6ddfs3zMnobv
SKU: oHnAtSUPSjCVsdxV3eERTV

299 Lighting

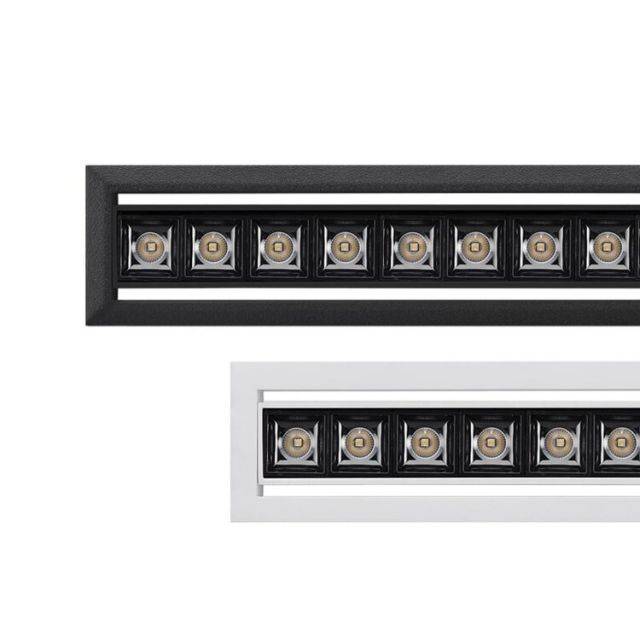

Adjustable recessed mono and multi-optic linear downlight.

Jump to:

+44 (0)117 942 2512 www.299lighting.co.uk

Application

Suitable for residential or commercial interiors including office, hospitality, and retail or as architectural feature lighting.

Description

Adjustable recessed mono and multi-optic linear downlight.

Features and benefits:

Spring clip installation.

The die-cast aluminium body combined with high gloss optics create the innovative anti-glare illumination of UGR <13.

Using one or multiple optics to diffuse the light, a high level of visual comfort is achieved, improving the well-being in workplace.

Available in three beam angles 12°/ 34°/ 48°. Offering a great control of light distribution.

Internal ballasts or drivers are supplied.

Also available as a spotlight (specified separately).

Application:

Suitable for residential or commercial interiors including office, hospitality, and retail or as architectural feature lighting.

General information

Size	45 x 45 mm 73 x 45 mm 149 x 45 mm 282 x 45 mm
Features	The die-cast aluminium body combined with high gloss optics create the innovative anti-glare illumination of UGR <13
Finish	Polyester powder coat
Material	Extruded aluminium profile with LEDs
Shape	Linear module
Uniclass 2015	Pr_70_70_48_71 Recessed luminairesPrimary
CAWS	V90/45 Luminaires V90/510 Luminaires

Specification data - Recessed luminaires Enhanced data

Product Reference	Foss Track Wallwasher - LED
Standard	Directive 2004/108/EC - EMC Directive 2006/95/EC - Low Voltage Regulation 1907/2006 - REACH Directive 2010/30/EC - Labelling Directive 2011/65/EC - RoHS Directive 2012/19/EC - WEEE
Third-party certification	Photometrics
Luminaire description	Traditional, recessed, adjustable, rectangular downlight
Classification	-
Electric shock	Class I
Ingress protection (minimum)	IP20 Rated
Suitability for direct mounting on normally flammable surfaces	Not suitable for direct mounting on normally flammable surfaces
Circumstances of use	Normal use
Rated maximum ambient temperature	25°C
Control gear position	Integral within luminaire
Supply circuit conductor connections	Push terminal Screw terminal
Nominal voltage	230 V
Luminaire power factor	0.98
LED luminaires	-
Initial LED luminaire efficacy (minimum)	105 Lm/ W
Wattage	10 W/ 1050 lm or 20 W/ 2100 lm
Colour temperature	3000K 4000K
Colour rendering index (Ra)	90
Beam angle	12° 34° 48°
Useful life	50 000 hours (L80B20)
Dimming protocol	Dali-dimming Non-dimming As standard.
Integral sensors	Not required CASAMBI
Size	45 x 45 mm 73 x 45 mm 149 x 45 mm 282 x 45 mm
Colour	Black White
Unified glare rating	-
Transverse	<13, meeting the Chartered Institution of Building Services Engineers (CIBSE), Society of Light and Lighting (SLL) and BCO Guide to Lighting Standards
Longitudinal	<13
Driver	-
Frequency	50-60 Hz
Output direction	Direct

Standard product features

Colour:

Available in two standard colours. Custom colours not available.

Features:

The die-cast aluminium body combined with high gloss optics create the innovative anti-glare illumination of UGR <13.

Finish:

Polyester powder coat.

Material:

Extruded aluminium profile with LEDs.

Shape:

Linear module.

Size:

Four sizes available with 5 and 10 modules.

Warranty:

Two-year warranty.

Recycled content:

Aluminium and packaging.

Recyclability:

Frame and packaging.

Country of origin:

UK.

Environmental information

Recyclability	Frame and packaging
Recycled content	Aluminium and packaging

Foss Recessed Trim Adjustable Modular Linear Lighting

Size

Features

Finish

Material

Shape

Uniclass 2015

CAWS

Product Reference

Foss Track Wallwasher - LED

Standard

Directive 2004/108/EC - EMC

Directive 2006/95/EC - Low Voltage

Regulation 1907/2006 - REACH

Directive 2010/30/EC - Labelling

Directive 2011/65/EC - RoHS

Directive 2012/19/EC - WEEE

Third-party certification

Photometrics

Luminaire description

Traditional, recessed, adjustable, rectangular downlight

Classification

Electric shock

Class I

Ingress protection (minimum)

IP20 Rated

Suitability for direct mounting on normally flammable surfaces

Not suitable for direct mounting on normally flammable surfaces

Circumstances of use

Normal use

Rated maximum ambient temperature

25°C

Control gear position

Integral within luminaire

Supply circuit conductor connections

Push terminal

Screw terminal

Nominal voltage

230 V

Luminaire power factor

0.98

LED luminaires

Initial LED luminaire efficacy (minimum)

105 Lm/ W

Wattage

10 W/ 1050 lm or 20 W/ 2100 lm

Colour temperature

3000K

4000K

Colour rendering index (Ra)

90

Beam angle

12°

34°

48°

Useful life

50 000 hours (L80B20)

Dimming protocol

Dali-dimming

Non-dimming

Integral sensors

Not required

CASAMBI

Size

45 x 45 mm

73 x 45 mm

149 x 45 mm

282 x 45 mm

Colour

Black

White

Unified glare rating

Transverse

<13, meeting the Chartered Institution of Building Services Engineers (CIBSE), Society of Light and Lighting (SLL) and BCO Guide to Lighting Standards

Longitudinal

<13

Driver

Frequency

50-60 Hz

Output direction
