Application

Public and commercial toilets

Description

Features and benefits:

  • Manufactured from 12/ 13 mm solid grade laminate.
  • A wear and water resistant solution in a wide range of colours.
  • Headrail with satin anodized aluminium with aerofoil profile.

General information

Color

-

Manufacturer guidance

To be confirmed from WW standard SGL range, subject to depth of partition.

Material

Solid grade laminate (SGL)

Guidance for specification option:

12/ 13 mm

Size

Guidance for specification option:

1950 mm overall height including 150 mm floor clearance. Option to extend floor to ceiling.

Width

1500 mm

1800 mm

Manufacturer guidance

Widths from 1500–1800 mm.

Height

1950 mm

Warranty description

One year

Guidance for specification option:

From practical completion.

Uniclass

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/120 Panel cubicles

Product range

Forté

Specification data - Panel cubicle systems

Panels

12/ 13 mm solid grade laminate.

Guidance for specification option:

A wide range of laminates available, please contact manufacturer for details.

Panel supports

Satin anodized aluminium pedestal legs.

Pilasters

12/ 13 mm solid grade laminate.

Guidance for specification option:

A wide range of laminates available, please contact manufacturer for details.

Doors

12/ 13 mm solid grade laminate.

Guidance for specification option:

A wide range of laminates available, please contact manufacturer for details.

Lippings

Exposed edges machined to a smooth finish with radiused safety corner details to doors and pilasters.

Hardware

Easily operable indicator bolt.

Coat hook.

Channel cleats.

Stainless steel 4 inch butt hinges.

Other requirements

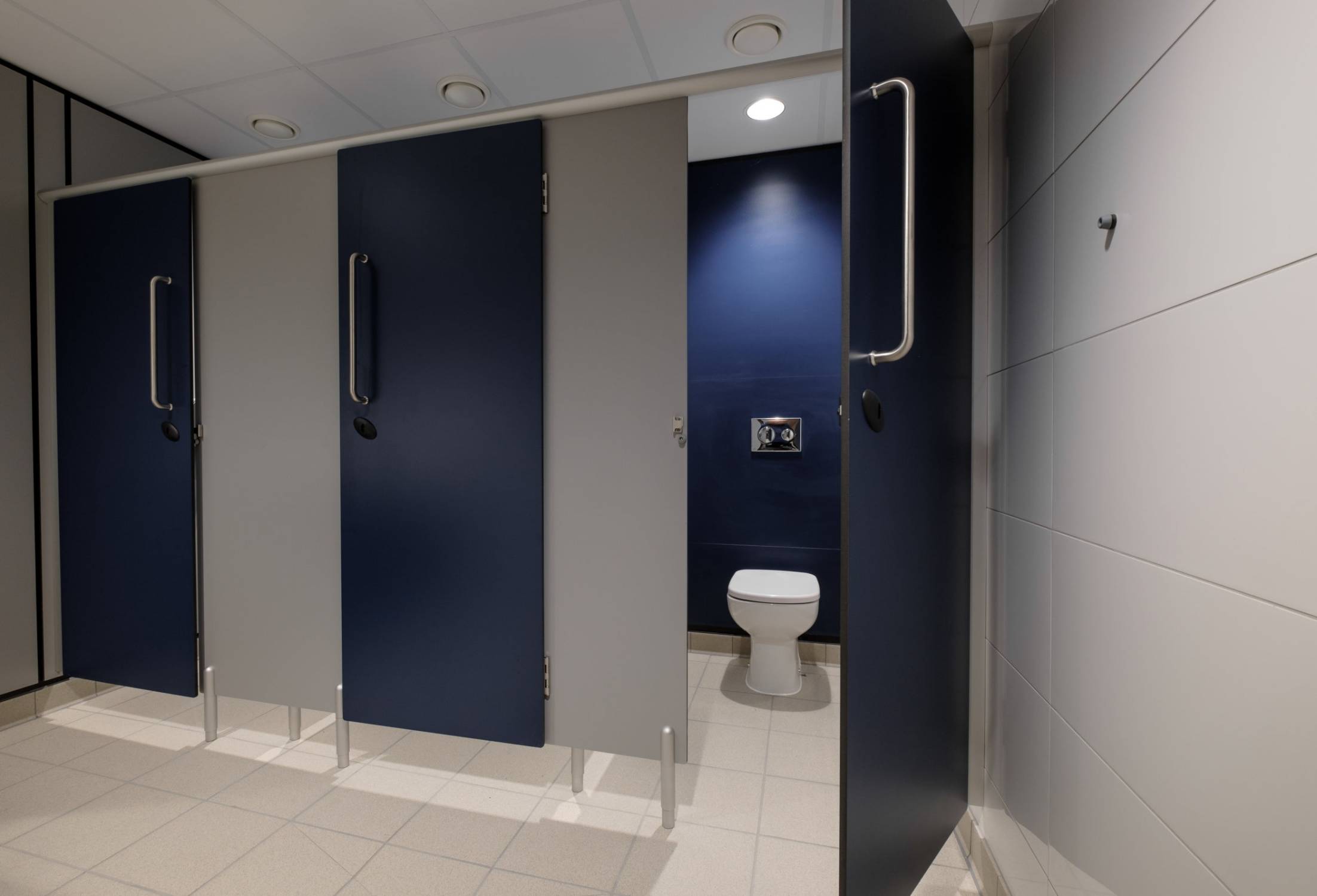

Where indicated on drawings supplied, outward opening doors have been allowed complete with satin polished stainless steel pull handles to the outside face of the doors.

Legs

Tubular and rounded off design manufactured from satin anodized aluminium, fixed to partition panel. Adjustable to suit uneven floor levels.

Colour

-

Manufacturer guidance

To be confirmed from WW standard SGL range, subject to depth of partition.

Sustainability data

Country of material origin

United Kingdom
