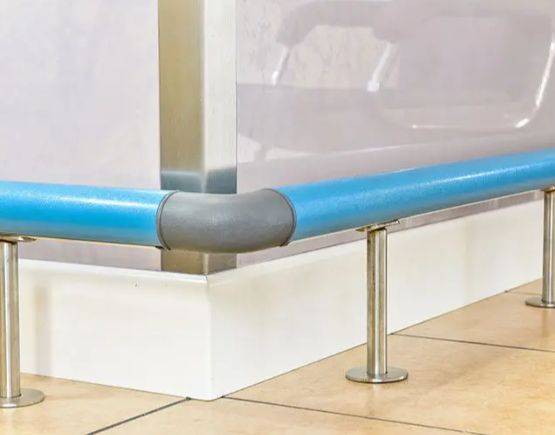

Footrails - Floor Mounted Stainless Steel - Lower Wall Protection
Verified by manufacturer 6 days ago
PVC-U coated
PVC-U coated
Health & Safety Accreditation
Certificate type
CHAS
Certificate type
Constructionline
Certificate type
ISO 9001 Quality Management
Certificate type
Floor-mounted footrail for protection to the lower part of a wall.
Application
Suitable as protection for vulnerable glass walls, screens, freezer/ fridge equipment and deli counters.
Description
Footrails offer optimum protection to the lower part and skirting element of walls whilst being floor mounted.
They are also suitable as protection for vulnerable glass walls, screens, freezer/ fridge equipment and deli counters. Fixed onto brackets which slot into a floor mounted receptacle, allowing the rail to be removed for thorough cleaning.
Available in a choice of either 1.4401 grade stainless steel or PVC-U, the footrail is ideal at stopping heavyweight trolleys, motorized trucks and vehicles colliding with walls and partitions.
General information
Color | Silver White Cream Ivory Grey |
Finish | Polished Micro-textured Guidance for specification option: Stippled. |
Material | PVC-U Guidance for specification option: Extruded PVC-U sleeve. Stainless steel Guidance for specification option: 1.4301 (304) grade stainless steel extruded tube. Aluminium Guidance for specification option: Core. |
Shape | Circle |
Length | 3000 mm |
Width | 48.3 mm Manufacturer guidanceDiameter. |
Height | 150 mm Manufacturer guidanceProjection. |
Uniclass | |
CAWS | N10/184 Wall rails P20/170 Proprietary |
Specification data - Stainless steel protection rails
Impact resistance | Manufacturer's standard. |
Finish | |
Coating | Extruded PVC-U sleeve. |
Colour | White RAL 9016 (LRV: 86).Cream BS 10 B 15 (LRV: 79).Buff RAL 1001 (LRV: 36).Mid Grey BS 00 A 05 (LRV: 37).Dusty Grey RAL 7037 (LRV: 26).Pastel Blue RAL 5024 (LRV: 20).Royal Blue RAL 5017 (LRV: 11).Steel Blue RAL 5011 (LRV: 6).Light Green RAL 6027 (LRV: 43).Opal Green RAL 6004 (LRV: 8).Black BS 00 E 53 (LRV: 4). |
Size | Nominal 50 mm diameter rail. |
Projection | All footrails have an overall projection of 120 mm as standard. |
System accessories | Not required. Alternative floor brackets. External corners. Internal corners. Standard floor brackets. |
Post foundations | Fixing bracket, standard 150 mm-high slotting into 150 mm socket. Guidance for specification option: The standard fixing bracket is 150 mm high with a 50 mm diameter and slots into a 100 mm deep socket. The base is 60 mm diameter. |
Grade | Grade 316 stainless steel extruded tube. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | PVC-U Guidance for specification option: Extruded PVC-U sleeve. Stainless steel Guidance for specification option: 1.4301 (304) grade stainless steel extruded tube. Aluminium Guidance for specification option: Core. |
Third party certifications
Health & Safety Accreditation
Alcumus Safecontractor
CHAS
CHAS accreditation advanced
Constructionline
Constructionline
ISO 9001 Quality Management
NQA ISO 9001
Literature
Yeoman Shield Wall & Door Protection Product Brochure
Case studies
Royal Mail's Flagship Delivery Office at Mount Pleasant London turned to Yeoman Shield when looking for a way to protect their newly refurbished depot from damage caused by trolleys and trucks.
