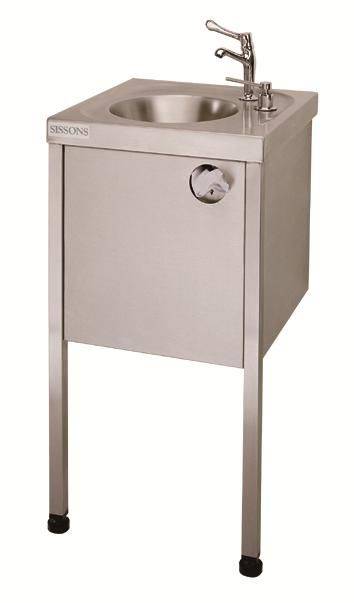

Food handler’s hand washbasin
Description

With front leg supports. Manufactured from 1.2 mm thick, austenitic grade stainless steel and have a satin polish finish throughout. A thermostatic pre-mixer valve is fitted to provide a constant temperature for the water supply. A paper dispensing housing is located behind the hinged front panel (paper not supplied). The bowl is supplied complete with a 32 mm flush grated waste outlet. Two tap holes are provided for fitting the lever operated tap and soap dispensing unit which are both supplied with the wash basin. An earthing lug is fitted to the underside of the bowl. Six fixing holes are provided in the rear returns of the end panels for screwing to the wall (screws and plugs are not supplied).

General information

Size

External: 450 x 450 x 860 mm

Bowl: 273 mm diameter x 120 mm

Uniclass 2015

Pr_40_20_96_96 Wall-hung washbasinsPrimary

CAWS

N13/30 Washbasins

N13/335 Washbasins

Specification data - Wall-hung washbasins

Product Reference

(D20200N) 203.0000.073

Standard product features

Size:

  • External: 450 x 450 x 860 mm.
  • Bowl: 273 mm diameter x 120 mm.
