Focus Ds Corridor acoustic ceiling system - Suspended Ceiling System

Name: Focus Ds Corridor acoustic ceiling system - Suspended Ceiling System
Brand: Saint-Gobain Ecophon
SKU: t2owrLYgBwLB4XqC6Sp3jD

Verified by manufacturer 2 days ago

Saint-Gobain Ecophon

Product certifications:

M1 emission classification
Certificate type
Indoor Air Comfort – Eurofins
Certificate type
Cradle to Cradle Certified
Certificate type
Cradle to Cradle Certified
Certificate type
ISO 14021:2016
Certificate type
European Technical Approvals
Certificate type
Health & Safety Accreditation
Certificate type
EPD
Certificate type

An acoustic suspended ceiling system for corridors.

Jump to:

+44 (0)1256 855250 Website

Application

For applications where a suspended ceiling with a concealed grid is required but individual tiles must be easily demountable.

Description

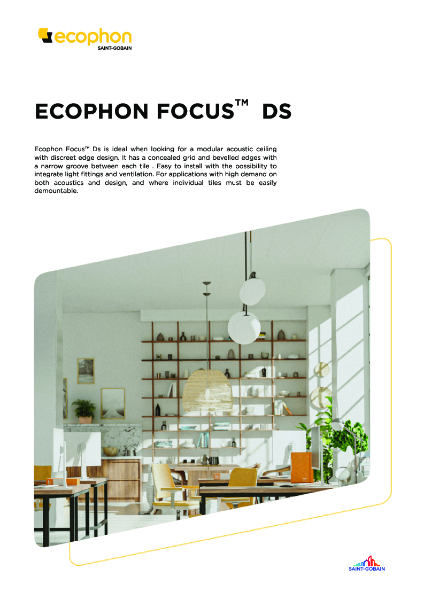

Ecophon Focus™ Ds acoustic ceiling system has a concealed grid and symmetrical bevelled edge with an even appearance. Increases assembly ease and integration of light fittings and ventilation.

Features and benefits:

The tiles are manufactured from high-density glass wool.
The visible surface has an Akutex™ FT coating, and the back of the tile is covered with glass tissue. The edges are painted.
The grid is manufactured from galvanized steel.
The system is patented.

General information

Color	Other Guidance for specification option: Available in 22 Akutex Ft colours and special colours. Clear Beige Black Blue Bronze Brown Copper Cream Gold Green Grey Ivory Orange Pink Purple Red Silver Turquoise White Yellow Show more
Finish	Coated
Material	High-density glass wool
Shape	Rectangle
Length	1600 mm 1800 mm 2000 mm 2400 mm
Width	600 mm
Height	20 mm
Warranty description	Ten year Manufacturer guidance All Ecophon installations can be warranted for ten years.

Uniclass	Ss_30_25_22_51 Modular suspended ceiling systemsPrimary
CAWS	K45/160 Board-suspended ceiling system alterations K45/130 Unit-suspended ceiling system alterations K45/13 Unit suspended ceiling system alterations K45/120 Existing suspended ceiling system K45/12 Existing suspended ceiling system K40/265 Infill units K40/115 Unit/ modular suspended ceiling system K40/105 Suspended ceiling system K40/10 Unit/ modular suspended ceilings

SKU Code	M238

Specification data - Modular suspended ceiling systems

Classification data
Ceiling support	Connect T24 grid.
Support fasteners	Connect Wall bracket. Connect Wall bracket and Connect Adjustable hanger. Guidance for specification option: For 3000–3600 mm spans.
Ceiling units	Focus Ds XL.
Barriers in ceiling void	-
Fire barriers	- Manufacturer guidance Insert requirements or omit.
Acoustic barriers	- Manufacturer guidance Insert requirements or omit.
Plenum barriers	- Manufacturer guidance Insert requirements or omit.
Samples required	- Manufacturer guidance Insert requirements or omit.
System accessories	None. Connect™ Bridging Profile and Clip. Guidance for specification option: For luminaire integration in panels. Connect™ Space Bar.
Execution	- Manufacturer guidance Consult manufacturer for execution requirements.
Size (l x w)	1600 x 600 mm. 1800 x 600 mm. 2000 x 600 mm. 2400 x 600 mm.
Installation	M238 - corridor installation.

Sustainability data

Contains Red List materials	No
Country of material origin	Sweden
Country of product manufacture	Sweden
Material	High-density glass wool
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Certified
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m²) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 4.01
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	57 %
Expected Life	50 year
