Foam Glass Aggregate
Application

Foamed glass aggregate is a sustainable replacement building material in:

  • GlassCrete (limecrete) floors.
  • Floor slabs, providing a complete replacement for conventional hardcore, blinding, oversite concrete and expanded polystyrene construction or precast beam and block and polystyrene insulation flooring.
  • Green roofs and landscaping (lightweight fill material).
  • Slope stabilization.
  • Vaults.
  • Sports turf.
  • Backfilling of pools and garden decoration.

Description

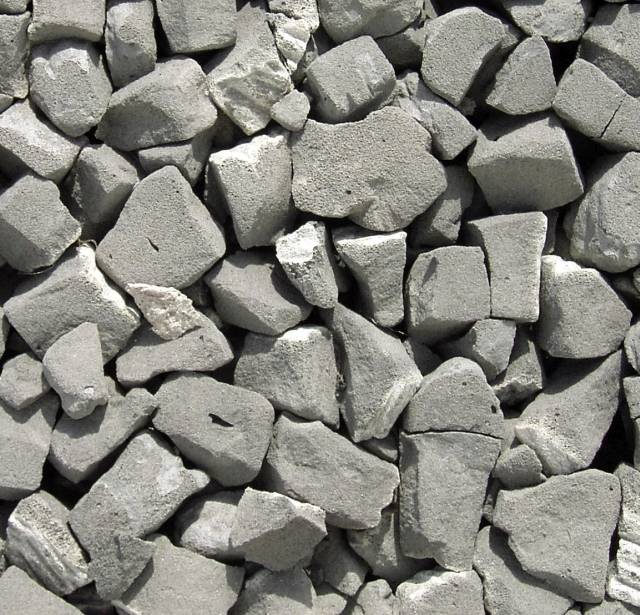

Aerated foam glass insulation aggregate manufactured from 100% recycled glass. The product is used in the same way as coated clay aggregate, but is capable of being used as a load bearing hardcore and also offers better insulation, therefore requiring less depth for similar thermal performance.

Chemically inert and does not present any hazard to health and safety in relation to its installation or use. It is frost, rodent, bacteria and rot resistant, prevents condensation in the building component, it is self-draining, incombustible to Class A1, emits no gas (odour free) and provides an anti-capillary action against rising water. CE marked to EN 13055-2.

Applications:

Foamed glass aggregate is a sustainable replacement building material in:

  • GlassCrete (limecrete) floors.
  • Floor slabs, providing a complete replacement for conventional hardcore, blinding, oversite concrete and expanded polystyrene construction or precast beam and block and polystyrene insulation flooring.
  • Green roofs and landscaping (lightweight fill material).
  • Slope stabilization.
  • Vaults.
  • Sports turf.
  • Backfilling of pools and garden decoration.

General information

Uniclass 2015

Pr_20_31_04_13 Coarse general aggregatesPrimary

CAWS

D41/110 Timber crib walls

D41/120 Precast reinforced concrete crib walls

D41/210 Gabions

D41/215 Trapions

D41/220 Mattresses

D41/230 Bastions

E10/312 Proprietary aggregate

E20/200 Proprietary underslab insulation

M10/290 Floating construction

M10/40 Floating construction

M13/260 Floating construction

M13/40 Floating construction

Q20/215 Coarse graded aggregate for permeable paving

Q21/142 Recycled aggregate

Q23/120 Blinded gravel

Q23/160 Loose gravel

Q23/170 Loose gravel overlay

Q37/350 Drainage layer

Specification data - Coarse general aggregates

Product Reference

Foam Glass Aggregate

Standard product features

Technical characteristics:

  • Granular size: 10–60 mm.
  • Density to DIN EN 1097-3 (dry bulk): 150 kg/m² (approximately).
  • Compressive strength: 10% compression: ≥570 kN/mm². Design value: 275 kN/mm².
  • Thermal conductivity to DIN EN 12939v: Dry: <0.08 W/m·K. Wet: 0.11 W/m·K.
  • Thermal transmittance (U-value): Varies depending on application and composition, however with a stand-alone compacted thickness of 750 mm it can achieve 0.11 W/m²K.
