FM638 & FM639 Butterfly Valve Fully Lugged
Verified by manufacturer 26 days ago
FM639 DN50
FM639 DN50
A fully-lugged butterfly valve.
Application
- Suitable for high pressure applications.
- Suitable for Group 2 liquids as defined by the Pressure Equipment Directive 2014/68/EU.
Description
A fully-lugged butterfly valve.
Features and benefits:
- Robust, ductile Iron valve bodies for long service life.
- Stainless steel disc for improved strength and a wide range of applications.
- Suitable for wide temperature range -10°C to 120°C.
- Extended size range for application requirements.
- Fully lugged for secure installation.
- Rated PN25 for higher pressure applications.
- Lever (FM638) and Gearbox (FM639) options available.
General information
Specification data - Butterfly valves
Standard | To BS EN 1092-2; BS EN 558; BS EN 593: 2009; BS EN 12266-1. |
PN rating | PN25. |
Working conditions | |
Type of fluid | Suitable for Group 2 liquids as defined by the Pressure Equipment Directive 2014/68/EU. |
Maximum working pressure | 25 (BAR). |
Fluid temperature | -10 to 120°C. |
Materials | |
Body | Ductile Iron EN-GJS-400-15. |
Shaft | Stainless Steel 431 ASTM A276 431; Stainless Steel 630 ASTM A564 630. |
Disc | Stainless Steel 304 ASTM A351 CF8. |
Operation | |
Manual | Gear. |
Inlets/outlets diameter | 50 mm. |
Dimensions | (138 + 65) x 43 mm. Manufacturer guidanceRefer to technical datasheet for detailed dimensions. |
Weight | 5 kg. |
Thread size | 4-M16. |
Third-party certification | ISO 5211-2001. |
Angle | 45°. |
Materials | Manufacturer guidanceBody, Gear box (FM639): Ductile iron; Disc, Shaft, Pin: Stainless steel; Short bushing, Long bushing: Aluminium bronze; Seat: EPDM; ‘O’ Ring: NBR; Bolt: Carbon steel; Gear box (FM639): Cast iron; Lever (FM638): Malleable iron. |
Flow capacity | 91 Kv. Manufacturer guidanceFlow coefficient Kv. |
Sustainability data
Material | Cast iron |
Recyclability | Recyclable Guidance for specification option: Recycle locally, consult manufacturer for details. |
Expected Life | 20 year |
Literature

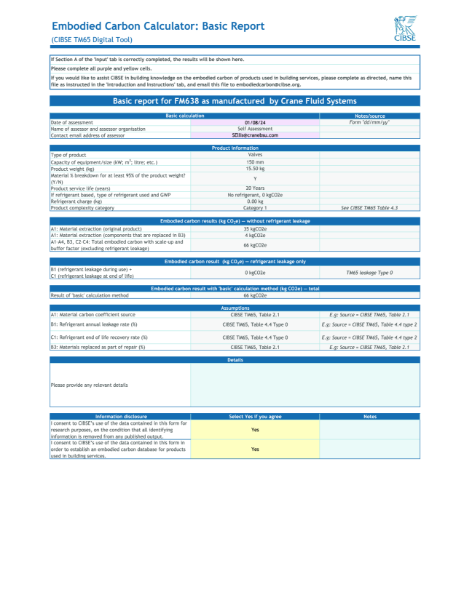

FM638 & FM639 Butterfly Valve Fully Lugged - TM65-CRANE-FM638-DN50
FM638 & FM639 Butterfly Valve Fully Lugged - TM65-CRANE-FM638-DN65
FM638 & FM639 Butterfly Valve Fully Lugged - TM65-CRANE-FM638-DN80
FM638 & FM639 Butterfly Valve Fully Lugged - TM65-CRANE-FM638-DN100
FM638 & FM639 Butterfly Valve Fully Lugged - TM65-CRANE-FM638-DN125
FM638 & FM639 Butterfly Valve Fully Lugged - TM65-CRANE-FM638-DN150

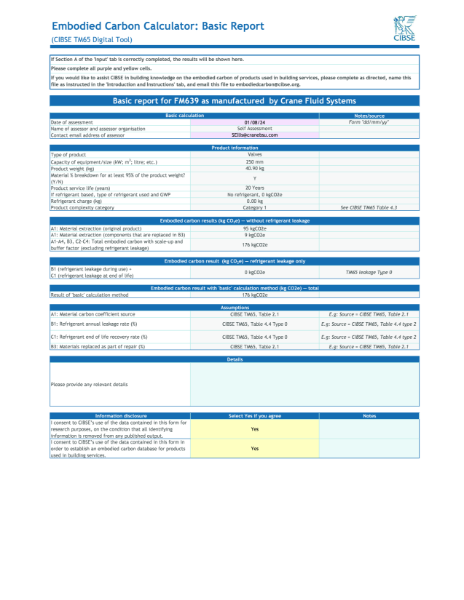

FM638 & FM639 Butterfly Valve Fully Lugged - TM65-CRANE-FM639-DN50
FM638 & FM639 Butterfly Valve Fully Lugged - TM65-CRANE-FM639-DN65
FM638 & FM639 Butterfly Valve Fully Lugged - TM65-CRANE-FM639-DN80
FM638 & FM639 Butterfly Valve Fully Lugged - TM65-CRANE-FM639-DN100
FM638 & FM639 Butterfly Valve Fully Lugged - TM65-CRANE-FM639-DN125
FM638 & FM639 Butterfly Valve Fully Lugged - TM65-CRANE-FM639-DN150
FM638 & FM639 Butterfly Valve Fully Lugged - TM65-CRANE-FM639-DN200
FM638 & FM639 Butterfly Valve Fully Lugged - TM65-CRANE-FM639-DN250
FM638 & FM639 Butterfly Valve Fully Lugged - TM65-CRANE-FM639-DN300
FM638 & FM639 Butterfly Valve Fully Lugged - TM65-CRANE-FM639-DN350
FM638 & FM639 Butterfly Valve Fully Lugged - TM65-CRANE-FM639-DN400
FM638 & FM639 Butterfly Valve Fully Lugged - TM65-CRANE-FM639-DN450
FM638 & FM639 Butterfly Valve Fully Lugged - TM65-CRANE-FM639-DN500
FM638 & FM639 Butterfly Valve Fully Lugged - TM65-CRANE-FM639-DN600
