Flushglaze Multipart Rooflight

Name: Flushglaze Multipart Rooflight
Brand: Glazing Vision Ltd
SKU: qJ4WVdXDDiMcoPjhzyuBtN

Verified by manufacturer 1 day ago

Double glazed ridgeglaze

Glazing Vision Ltd

Product certifications:

BBA Agrément Certificate
Certificate type
Qualicoat approval
Certificate type
Secured By Design
Certificate type

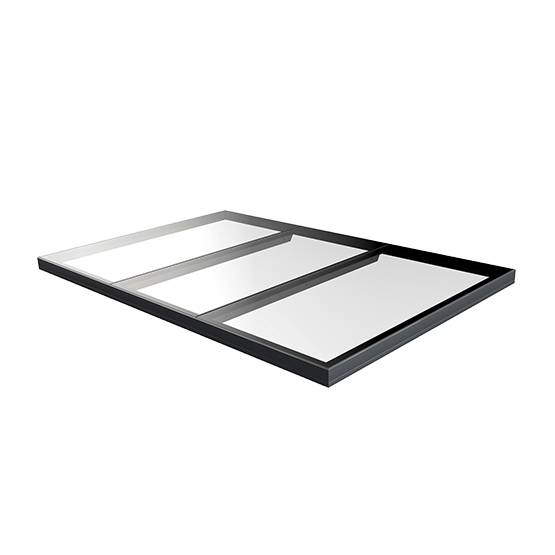

Glazed multi part solo rooflight with aluminium frame for flat roof applications for installation onto builders upstand with four edge support.

Jump to:

BOS

+44 (0)1379 658300 Website

Application

Applicable for flat or pitched roof in residential, commercial or public buildings to increase natural daylight.

Description

The Flushglaze Multi-Part Rooflight is a versatile glazing solution designed to enhance natural daylight, with a number of joining methods; aluminum back-to-back angles, silicone seal or glass fins.

The Multi-Part Rooflight is a versatile glazing solution designed to enhance natural daylight in any setting be it residential, commercial or public.

Features & Benefits:

Choice of joining methods
No external capping
Heat soak tested low-e safety glass as standard

Optional Extras:

Easy Clean Coating

Kerb Top Trim

Wall Abutments

Special Colour(s)

Glass Specifications

Accreditations & Certifications:

Glass Inspected To The Hadamar Standard.
BSI ISO 9001 and ISO 14001.
BBA Approved
Loss Prevention Certification Board Certified
The Rooflight Association Member
Qualicoat Approved Applicator.

General information

Color	Grey Guidance for specification option: Standard, RAL 7015 slate grey. Other Guidance for specification option: RAL, special order.
Finish	Powder-coated Guidance for specification option: Qualicoat standard.
Material	Aluminium Glass
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Ten year Guidance for specification option: If installed by Glazing vision Ltd Two year Guidance for specification option: If installed by alternate company

Uniclass	Pr_30_59_72_31 Framed rooflightsPrimary
CAWS	L10/45 Rooflights L10/460 Rooflights

Specification data - Framed rooflights

Classification data
Form	Modular.
Size	As drawing. As schedule.
Frame	-
Material	Aluminium. Guidance for specification option: Extruded aluminium profiles, grade 6063 T6. Polyester powder coated, with concealed fixings (except circular variants).
Finish	-
Coating	Polyester powder coating. Guidance for specification option: To the Qualicoat Standard.
Colour	RAL 7015, slate grey. Guidance for specification option: Standard. RAL, special order. Guidance for specification option: Consult manufacturer and insert requirements.
Glazing or infill	-
Type	Insulating glass units.
Construction	Double glazed ridgeglaze. Manufacturer guidance Minimum glass specification (may change subject to size/ application).
Colour	Clear.
Integral kerb	Guidance for specification option: Consult manufacturer.
Operation	-
Type	Fixed.
Accessories	Not required. Kerb cover extrusion. Guidance for specification option: To mask the structure of the kerb top from external visibility and provide a plaster stop bead. Enduroshield easy clean glass treatment.
Execution	Installation of framed rooflights.
Type	Round. Guidance for specification option: Not available for Ridgeglaze or Eaves Flushglaze. Square. Special order. Guidance for specification option: Insert requirement.
Height	Guidance for specification option: Insert requirement, 150 mm minimum. Manufacturer guidance Kerb height.
Thickness	Guidance for specification option: Insert requirement, 75 mm minimum. Manufacturer guidance Kerb thickness.
Seals	Silicone, poly-butyl and EPDM rubber seals.
Security	Secured by Design tested to LPS2081 Issue 1:2015. Guidance for specification option: Secure and Secure+ Flushglaze approved.
Glass	Solo. Modular with silicone seals at the join. Modular with aluminium back to back angles at the join. Modular with glass fins at the join. Wall abutted (maximum three sides). Bespoke shapes and sizes available. Manufacturer guidance Flushglaze configurations.
Treatment	Enduroshield Easy Clean Treatment. Guidance for specification option: Gives a non-stick surface making the glass easier to clean and keep clean, stay clean for longer and resist staining and discoloration. Privacy glass. Guidance for specification option: Sand blasting or acid etched glass is available either in 100% coverage or patterns to your specification. Non slip. Guidance for specification option: Anti slip frit patterns available for walk on specification glass in standard ‘dot matrix’ design or patterns to your specification. Kerb top trim. Guidance for specification option: Hides the upstand and internal finishes such as plasterboard and insulation when viewed through the glass from above. Manufacturer guidance Glass treatment.
Outer	6 mm clear toughened heat soak tested. Manufacturer guidance Glazing.
Spacer	16 mm black silicone sealed argon filled cavity with warm edge spacer bar. Manufacturer guidance Glazing.
CenterCoreSpacing	Not applicable. Manufacturer guidance Glazing.
Inner	8.8/ 9.5 mm clear soft low E laminated. Manufacturer guidance Glazing.
