Flush Integrated Dado Rail

Verified by manufacturer 4 months ago

MIDDAS Third party certifications:
  • UKAS

    UKAS

    Certificate type

Flush integrated 3-compartment dado rail provides a ledge-free channel for routing small power, data and process services, and can be supplied with flush cover plates and service penetrations.

Jump to:
+44 (0)1743 294141 Website

Application

For routing small power, data and process services in M100 and M200 internal partitions within a commercial or industrial environment. Particularly suitable for any application requiring flush aesthetics including offices and medical facilities.

Description

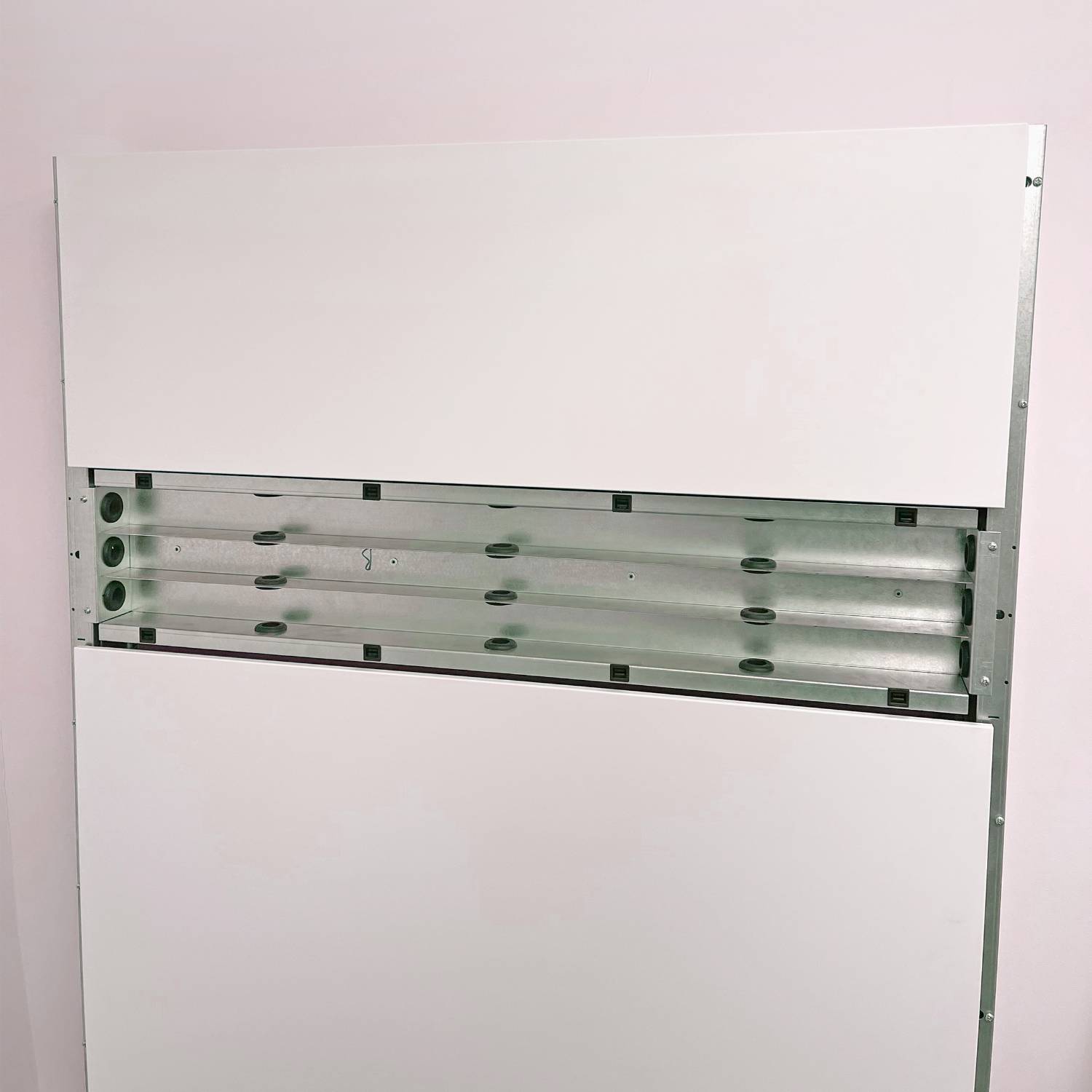

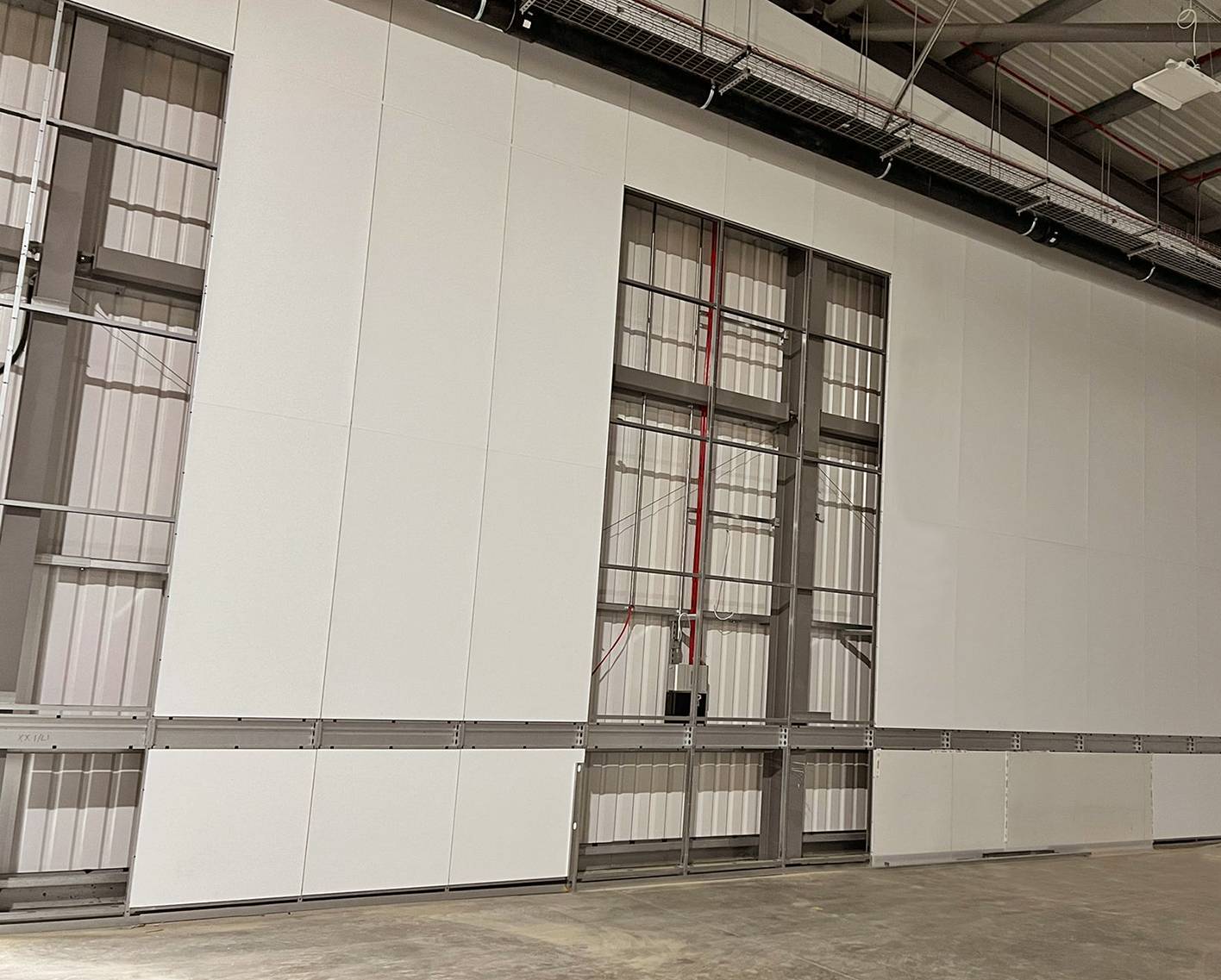

MIDDAS flush integrated three-compartment dado rail provides a flush, ledge-free channel for routing small power, data and process services (e.g., gasses). It is supplied with flush cover plates with factory-formed cut outs for service outlets.


The assembly consists of a galvanized pressed metal back box with a pressed metal front plate in food-safe PVC or an optional powder-coated finish.


The Integrated Dado Rail has been fully fire tested and offers a 60-minute rating within the M100 FR60 partition system, fitted back-to-back in each bi-panel face (staggered).  The design allows the MIDDAS M100 partitions to be removed with the dado in place, ensuring full flexibility throughout the life of a facility.


Features and benefits:

  • Flush integration with M100 or M200 wall panel surface.
  • Three-compartment as standard, with special configurations on request.
  • Designed for small power, data and process gasses.
  • Horizontal and vertical configurations.

General information

Color

White

Other

Yellow

Beige

Black

Show more

Finish

Coated

Powder-coated

Veneered

Galvanized

Laminated

Material

Steel

Shape

Rectangle

Width

1000 mm

Height

200 mm

Bespoke

Warranty description

One year

Uniclass

Pr_65_70_11_96 Wall and ceiling-mounted cable trunking and ductingPrimary

CAWS

V90/350 Cable trunking and cable ducting for wall and ceiling mounting

V90/350 Cable trunking and cable ducting for wall and ceiling mounting

Specification data - Wall and ceiling-mounted cable trunking and ducting

Installation position

Flush in the wall.

Access method

With tools.

Easy alignment and push fit cover panels. Once in place, cover panels can be removed with proprietary single/double suction lifter.

Sizes

200 mm height.

1000 mm maximum width modules with sizes to suit panel modulation.

Bespoke.

Bespoke sizing available on request. Consult manufacturer and insert requirements.

Compartments

Three.

Accessories and fittings

-

Types

Not required.

Factory-formed service plate outlets.

Rubber grommets.

Dado compartments can be fitted with optional rubber grommets at top and sides.

Execution

Consult manufacturer for execution requirements.

-

Colour/ Finish

120 μm PVC pre-coat in MIDDAS white.

Polyester powder-coated in contrasting colour.

Optional, for Part M compliance. Insert requirements.

Fire resistance

Not required.

To BS 476-22, EI 60.

The Integrated Dado Rail has been fully fire tested and offers a 60-minute rating within the M100 FR60 partition system, fitted back-to-back in each bi-panel face (staggered).

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

99%

Recycled content

50 %

Third party certifications

UKAS

UKAS

MIDDAS M100 Solid Wall offset back to back Trunking Fire Test Certificate 60mins Integrity / 60mins Insulation EI60. To BS 476: Parts 22: 1987
