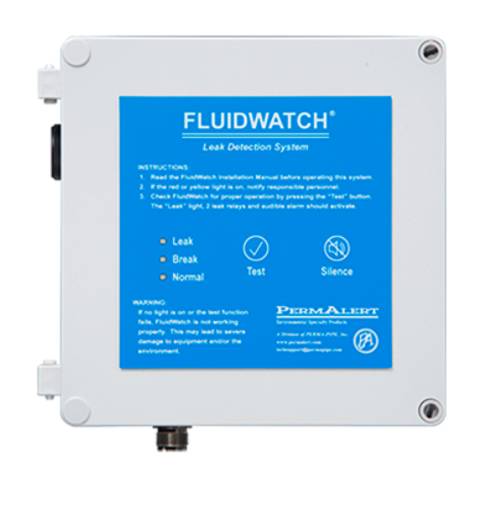

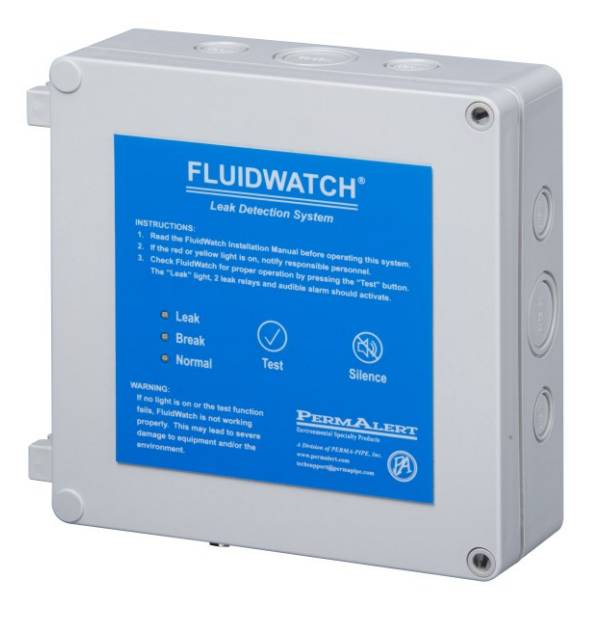

FluidWatch®

Application

Monitors small areas for water leaks. Typical applications include unmanned equipment rooms, small raised floor areas and small tanks.

Description

Leak detection system engineered to monitor small areas for water leaks.


Features and benefits:


  • 24/7 continuous monitoring.
  • Cable sensor system.
  • Relay output-capable.
  • Fast response time with sensing water-based liquids in seconds.
  • Adjustable sensitivity from several inches to several feet.
  • Ruggedized sensing cable and not susceptible to dust /dirt contamination.
  • Custom sensing cable lengths available upon request.
  • LED indicators for power, leak and fault conditions with built-in audible alarm.

General information

Color

Grey/ blue.

Features

Leak detection system for monitoring small areas for water leaks; 24/7 continuous monitoring; Cable sensor system; Relay output-capable; Fast response time.

Shape

Square.

Size

183 x 183 x 64 mm.

WarrantyDescription

Consult manufacturer

Uniclass 2015

Pr_75_50_18_47 Liquid leak detection control panelsPrimary

Specification data - Liquid leak detection control panels Enhanced data

Nominal voltage

110–240 V a.c. or 24 V d.c.

110–240 V a.c.: 50/60 Hz, 0.3 A/50 VA.

24 V d.c.: 1 A/ 24 VA.

Nominal frequency

50/ 60 Hz.

Number of zones

One.

Controls

-

Display type

Manufacturer's standard.

Display the following information

LED indicators for power, leak and fault conditions.

Audible indication

Built-in audible alarm.

Outputs

Manufacturer's standard.

Communications

Four SPDT relays.

SPDT relays: 10 A/ 250 V a.c.

Product Reference

FW25-50

Length: 15 m (50 ft.).

FW25-75

Length: 23 m (75 ft.).

FW25-100

Length: 30 m (100 ft.).

Accessories

None.

FW25-SPE customizable cable length

Maximum: 38 m.

Weight

0.8 kg.

Ingress protection (IP) rating

IP52

Indoor only.

Operating temperature range

-18°C to 50°C.

RelativeHumidity

95% maximum at 50°C.
