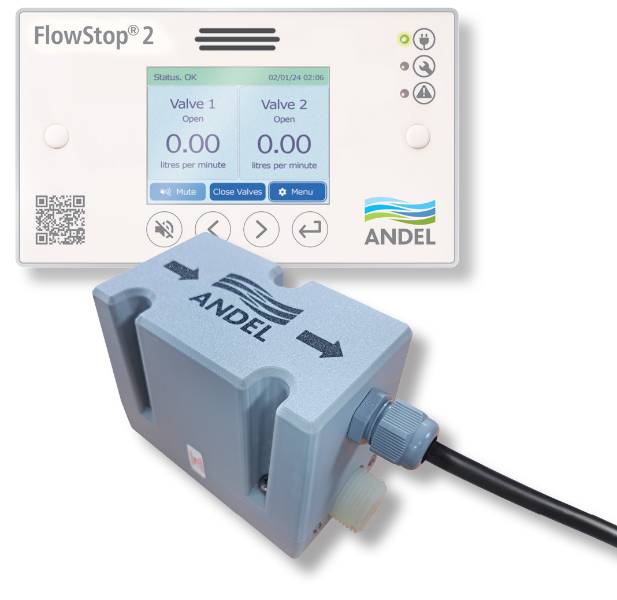

FlowStop® 2
Verified by manufacturer 25 days ago
Domestic flow based leak detection and water supply monitoring system. FlowStop isolates mains water supply and alarms when unusual water use is detected.
Application
Particularly suitable for applications in:
- Multi-occupancy residential developments.
- Individual residential properties.
- Student accommodations.
- Private landlords.
- Social landlords.
- Hotels.
- Offices.
- Vacant properties.
Description
WRAS Approved Andel FlowStop® detects abnormal water flow or the risk of freezing pipes, automatically shutting off the water supply, avoiding the risk of water damage.
The system comprises a discreet and stylish control unit and a valve unit (integrated latching solenoid valve and flow rate sensor) which actively monitors the water supply to a property. The system is user friendly for the resident and each control unit can monitor up to two valve units.
Features and benefits:
- Highly cost-effective.
- Low maintenance.
- Easy to install, easy set-up.
- Monitors up to two water supplies.
- Low-temperature protection (user adjustable).
- Continuous flow protection (user adjustable).
- Excess flow rate protection (user adjustable).
- Non-use protection (user adjustable).
- Override control,
- Discreet surface-mounted control unit.
- Option to add leak detection sensor.
- Optional connection to onward BMS and GSM for property owners/agents and absent occupants.
- WRAS approved for standard domestic cold-water supply.
- 10-year warranty on control unit.
General information
Color | White Blue |
Material | Acrylonitrile butadiene styrene (ABS) Plastic |
Shape | Rectangle |
Length | 8 mm 70 mm Manufacturer guidanceDepth. |
Width | 149 mm 144 mm 115.5 mm |
Height | 88 mm 91 mm |
Warranty description | Ten year Guidance for specification option: Control unit warranty. Warranty is subject to control unit being used and maintained in accordance with the manufacturer's recommendations and user guidelines. Consult manufacturer for more details. |
Uniclass |
Specification data - Water leak detection and alarm systems
Control panel | Liquid leak detection control panels Guidance for specification option:
|
Isolating valve | WRAS approved polyamide 66 reinforced with 30% glass fibre (PA66-GF30) valve body and Polyethylene Terephthalate Glycol (PETG) valve enclosure with integrated latching solenoid valve and flow rate sensor. Guidance for specification option:
|
Alarm indication | Electronic sounder and LED visual indicator. |
System accessories | Not required. Leak detection sensor. Connection to onward BMS and GSM for property owners/ agents and absent occupants. |
Dimensions | Control unit: 149 x 88 x 8 mm. Guidance for specification option: Control unit: Minimum 45 mm depth double gang back box, 58 mm deep if installed in 47 mm patress box. Valve unit: 114 x 91 x 70 (including threaded fittings). 115.5 x 91 x 70 (excluding fittings). Manufacturer guidanceWidth x height x depth. |
Materials | Control unit: moulded acrylonitrile butadiene styrene (ABS). |
Channels | Two Manufacturer guidanceNumber of flow/ valve channels. |
Power supply | 110–240 V.a.c. Manufacturer guidanceControl unit mains supply. |
Output | 2 x volt-free relay contact rated 30 V at 1 A per input. Manufacturer guidanceControl unit output. |
Input | Manufacturer guidanceHandles 2 inputs from 2–40 l/minute, controlling up to two FlowStop® valve units. |
Pressure | 10 bar (maximum working pressure). |
Working temperature | 4–60℃ (maximum). |
Sustainability data
Material | Acrylonitrile butadiene styrene (ABS) Plastic |
Similar products from Andel Ltd

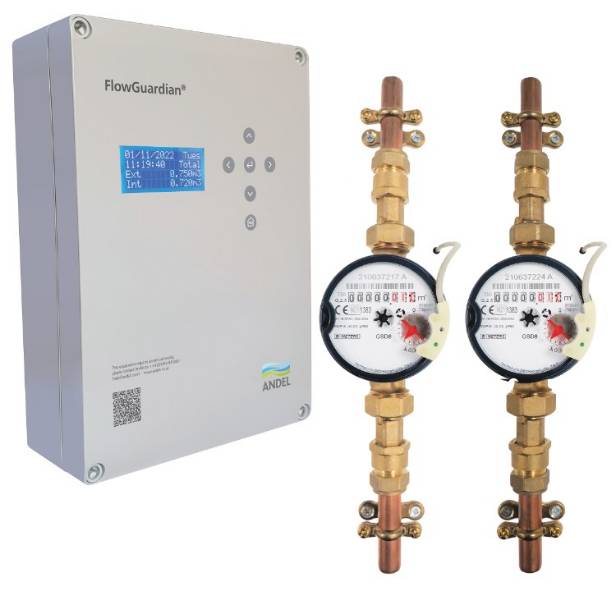

FlowGuardian® - Water Leak Detection
