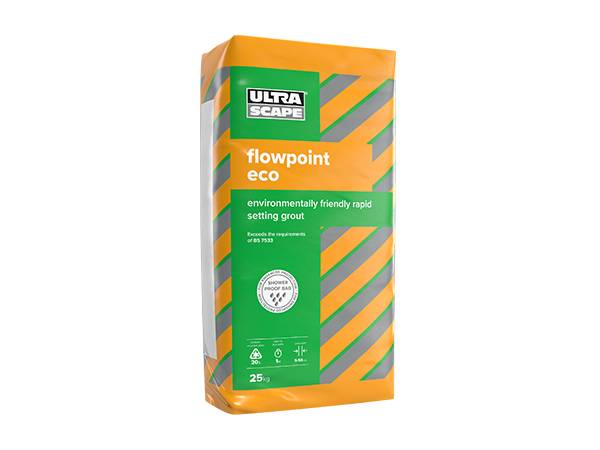

Flowpoint Eco: Rapid Set Flowable Grout

Name: Flowpoint Eco: Rapid Set Flowable Grout
Brand: Instarmac Group plc
SKU: 9nqBphWgwRmCqiFgCR8Ypu

Verified by manufacturer 1 month ago

Instarmac Group plc

Third party certifications:

EPD
Certificate type

Rapid set flowable grout

Jump to:

+44 (0)1827 254400 Website

Application

For all pavements where a rigid or bound void-free joint is required.
The product is suitable for application in town centre pedestrian schemes, pathways and carriageways, and can be used with natural stone, concrete flags and clay paviours.

Description

UltraScape Flowpoint ECO is a fully pre-mixed dry-pack which only requires the addition of water on-site. It can fill joints from 5–50 mm wide with a minimum target depth of 20 mm, up to 200 mm in one application. This highly fluid grout achieves a final compressive strength of 49.6 N/mm² (results achieved using 4.25 litres of water per 25 kg bag), and will reach initial set in 30 minutes, will accept light foot traffic after one hour, and vehicular traffic after four hours (dependent upon temperature).

Features and benefits:

Contains recycled glass - reduces virgin aggregate use.
Open to foot traffic in one hour.
Open to vehicular traffic in four hours.
Rapid setting.
Exceptional bond strength.
Shrinkage compensated.
Mixes quickly on-site with water.
Initial set after 15 minutes at 20°C.
Economical to use.
Conforms to BS 7533.
Ideal for large-scale projects.
Part of the UltraScape streetscape system, which guarantees compatibility and split liability.

General information

Color	Grey Guidance for specification option: Natural grey & charcoal.
Material	Cement Guidance for specification option: UltraScape Flowpoint ECO is a fully pre-mixed dry-pack which only requires the addition of water on-site. Containy 20% recycled glass.
Shape	Formless
Length	Bespoke
Width	Bespoke
Height	Bespoke

Uniclass	Pr_20_31_53_60 Paving jointing mortarsPrimary
CAWS	Q25/31 Concrete flag paving systems Q24/112 Conventional concrete block paving with bound base Q24/122 Conventional clay paver paving with bound base Q24/132 Natural stone sett paving with bound base Q25/125 Concrete flag paving overlay system Q25/110 Natural stone slab paving system Q25/140 Natural stone sett paving system Q25/145 Natural stone sett overlay paving system Q25/115 Natural stone slab paving overlay system Q25/130 Rigid brick paving system Q25/120 Concrete flag paving system Q25/155 Concrete sett paving overlay system Q25/160 Natural stone cobble paving system Q25/150 Concrete sett paving system Q25/135 Rigid brick paving overlay system Q25/165 Natural stone cobble overlay paving system Q25/440 Ready-mixed mortar Q25/26 Natural stone slab paving systems

Specification data - Paving jointing mortars

Standard	In accordance with BS 7533.
Delivery condition	Bagged. Guidance for specification option: 25 kg bag.
Compressive strength (minimum)	10 N/mm². Guidance for specification option: At 2 hours.

Compressive strength – 1 day	14 N/mm².
Compressive strength – 7 days	25 N/mm².
Compressive strength – 28 days	49.6 N/mm².
Flexural strength	7.1 N/mm². Guidance for specification option: At 28 days. 1 day- 4 N/mm². 7 days - 4.5 N/mm².
TensileStrength	3.91 N/mm². Guidance for specification option: At 28 days. 1 day: 1.69 N/mm². 7 days: 2.65 N/mm².
Bond strength	> 1.5 N/mm².
Shrinkage	0.06%.
Workability	5–15 minutes. Guidance for specification option: Depending on temperatures - test carried out at 20°C. Cool temperatures retard, warm temperatures accelerate product performance. As with all raw materials, colour variation may occur. Please note that this does not affect the consistency or characteristics of the enclosed product.
Elasticity	19200 N/mm².
Setting time	30 minutes. Guidance for specification option: Depending on temperatures - test carried out at 20°C. Cool temperatures retard, warm temperatures accelerate product performance. As with all raw materials, colour variation may occur. Please note that this does not affect the consistency or characteristics of the enclosed product.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Cement Guidance for specification option: UltraScape Flowpoint ECO is a fully pre-mixed dry-pack which only requires the addition of water on-site. Containy 20% recycled glass.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	20 % Guidance for specification option: Contains 20% recycled glass - reduces virgin aggregate use.
