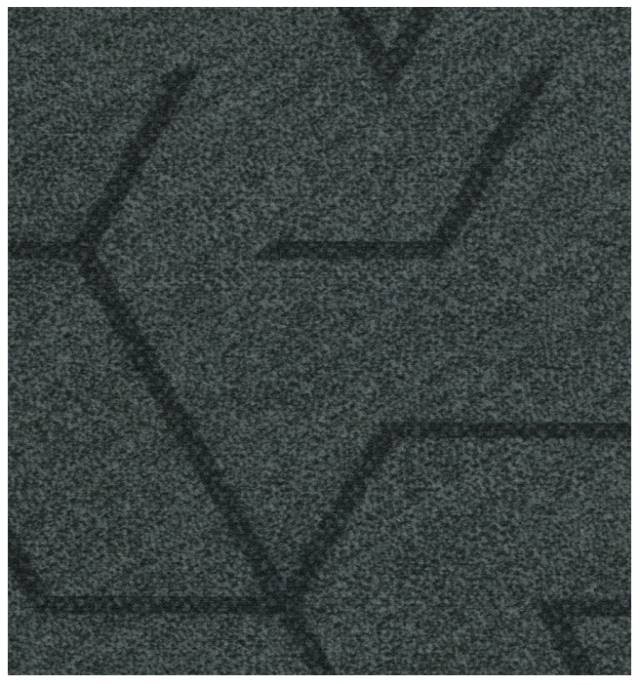

Flotex Planks Triad
Verified by manufacturer 1 month ago
QA Certificate
Certificate type
HPDC Certification
Certificate type
EPD
Certificate type
Certificate of Conformity
Certificate type
Electrostatically flocked carpet planks.
Application
Internal use, all busy commercial and public sector locations.
Description
Electrostatically flocked carpet planks.
Features and benefits:
- This pattern offers you the creative freedom to mix and match, combining colours and installation methods easily.
- All colourways in the Triad collection feature a superior appearance rating.
- Unique embossed version available to add more texture and tactility.
- The unique construction of Flotex allows it to release soiling like no other textile flooring.
- The smooth, straight fibres of Flotex do not trap particles of soil, allowing them to be removed with standard cleaning appliances.
- Nylon 6.6 pile with a resilient waterproof backing.
Adhesive:
For use with 542 Eurofix Tack Plus, or Eurocol 640 Eurostar Special for permanent fixture.
Method of laying:
Half-drop, herringbone and weave installations.
General information
Color | Blue Grey Green Yellow Red Manufacturer guidanceAvailable in 16 colour options. |
Finish | Other Guidance for specification option: Flocked pile carpet plank. |
Material | Nylon Guidance for specification option: 100% Nylon flocked pile. PVC Guidance for specification option: With PVC backing. |
Shape | Rectangle |
Length | 1000 mm |
Width | 250 mm |
Height | 5 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | M50/130 Carpet tiling M50/15 Carpet tiling |
Product range |
Specification data - Pile carpet tiles
Style | Flocked pile. |
Material | Nylon. |
Classification | |
Standard | To BS EN 1307. |
Third-party certification | Allergy UK approved. |
Level of use class | Class 33.Guidance for specification option: Heavy contract. |
Recycled content | 49%. |
Size | 1000 x 250 mm. |
Colour and pattern | Not required.121001 Emboss zinc.131001 Red.131002 Blue.131003 Green.131004 Amber.131005 Platinum.131006 Silver.131007 Steel.131008 Shadow.131010 Taupe.131011 Red line.131012 Blue line.131013 Green line.131014 Amber line.131015 Stone.131017 Anthracite. |
Total thickness to ISO1765 | 5 mm. |
Total weight (to ISO 8543) | 4.8 kg/m². |
Dimensional stability to ISO 2551 / EN 986 | < 0.1%. |
Light fastness to EN-ISO 105-B02 | ≥5. |
Slip resistance to UKSRG pendulum test | Dry- Very low slip risk; Wet- low slip risk. |
Impact sound to EN-ISO 717-2 | ΔLw = ≥19 dB. |
Sound absorption to ISO 354 | 0.1. |
Water impermeability to EN 1307 annex G | Pass. |
Reaction to fire to EN 13501 | Bfl-s1. |
Slip resistance (to EN 13893) | μ ≥0.30. |
Body voltage to ISO 6356 | < 2 kV. |
Thermal resistance to EN 12524 | 0.06 m² K/W. |
Adhesive | Not required. Eurocol 542 Eurofix Tack Plus very low emission tackifier release system. |
Method of laying | Half drop Herringbone Weave |
Edging | Not required. As per 740. |
Skirtings | Not required. As per 770. |
Stair nosings | Not required. As per 750. |
Sustainability data
Contains Red List materials | Yes Guidance for specification option: PVC. |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Nylon Guidance for specification option: 100% Nylon flocked pile. PVC Guidance for specification option: With PVC backing. |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 10.80 kg CO₂ eq/m² |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 62 % |
