Flotex Integrity² Tile - Carpet Tile

Verified by manufacturer 3 months ago

Forbo Flooring Systems Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

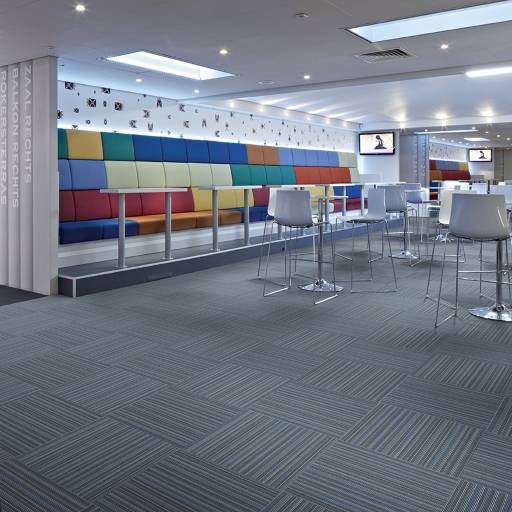

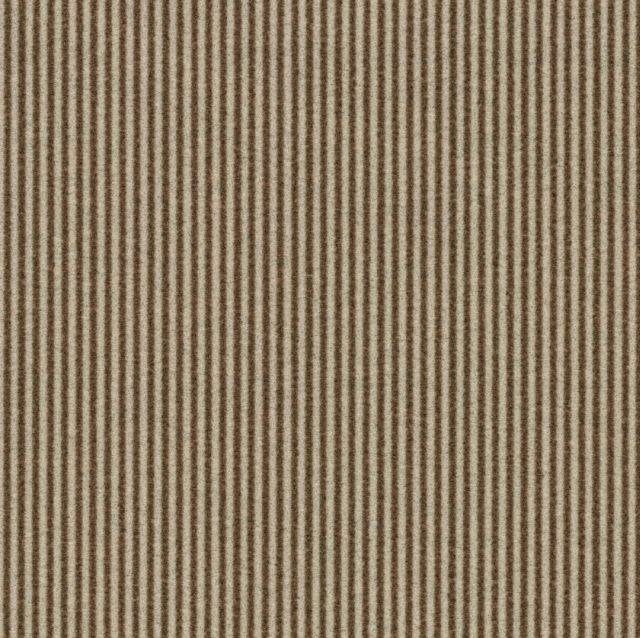

A subtle, sophisticated linear design which should be installed in a tessellated direction, Flotex Integrity2 offers 12 muted colours with a stylish design.

Jump to:
+44 (0)800 093 5258 Website

Application

Internal use, all busy commercial and public sector locations.

Description

An electrostatically flocked carpet tile manufactured to EN 1307 from 100% nylon 6.6 pile with a resilient waterproof backing.


Features and benefits:

  • Nylon 6.6 pile with a resilient waterproof backing.
  • Integrity2 offers both muted colours and a stylish design.
  • Create understated flooring designs using tessellation.
  • Subtle, sophisticated linear effect.


Adhesive:

  • 542 Eurofix Tack Plus – very low VOC emission PVC tackifier release system.
  • Eurocol 640 Eurostar Special – a superior acrylic dispersion, low VOC-emitting adhesive with a high initial grab – specify where a permanent bond is required.


Method of laying:

Can be laid quarter turn.

General information

Color

Range of colours available.

Beige

Brown

Grey

Blue

Finish

Flocked

Flocked carpet tile.

Material

Nylon

100% Nylon flocked pile.

PVC

With PVC backing.

Shape

Square

Length

500 mm

Width

500 mm

WarrantyDescription

Ten year

Uniclass

Pr_35_57_11_62 Pile carpet tilesPrimary

CAWS

M50/130 Carpet tiling

M50/15 Carpet tiling

M50/170 Carpeting

M50/25 Carpeting

Product range

Flotex Flocked Floor Coverings

Specification data - Pile carpet tiles

Style

Flocked.

Material

100% Nylon flocked pile with PVC backing.

Classification

-

Standard

To BS EN 1307.

Third-party certification

Allergy UK approved.

Level of use class

Class 33.

Heavy contract.

Recycled content

49%.

Colour and pattern

Not required.

t350001 grey,

t350002 steel.

t350003 charcoal.

t350004 navy.

t350006 marine.

t350009 taupe.

t350011 leaf.

t350012 granite.

Total thickness to ISO1765

5 mm.

Total weight (to ISO 8543)

4.8 kg/m².

Dimensional stability to ISO 2551 / EN 986

< 0.1%.

Light fastness to EN-ISO 105-B02

≥6.

Slip resistance to UKSRG pendulum test

Dry- Very low slip risk; Wet- low slip risk.

Impact sound to EN-ISO 717-2

ΔLw = ≥19 dB.

Sound absorption to ISO 354

0.1.

Water impermeability to EN 1307 annex G

Pass.

Reaction to fire to EN 13501

Bfl-s1.

Slip resistance (to EN 13893)

μ ≥0.30.

Body voltage to ISO 6356

< 2 kV.

Thermal resistance to EN 12667

0.04 m2 K/ W.

Adhesive

Not required.

542 Eurofix Tack Plus.

Eurocol 640 Eurostar Special.

Edging

Not required.

As per 740.

Skirtings

Not required.

As per 770.

Stair nosings

Not required.

As per 750.

Environmental information

Contains Red List materials

Yes

PVC.

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

18.2 kg CO₂ eq/m²

Recyclability

100%

Recycled content

49 %

BIM objects

Platform Compatible Version
Revit

Revit 2017

1

Third party certifications

QA Certificate

QA Certificate

British Allergy Foundation: Seal of Approval for Flotex

Literature

Forbo Flotex LRV and DSDC Accreditation Overview

Forbo Flotex LRV and DSDC Accreditation Overview

Forbo Flotex for Gyms Whitepaper

Forbo Flotex for Gyms Whitepaper

Forbo Product Portfolio 2022

Forbo Product Portfolio 2022
