Floor Standing WC

Description

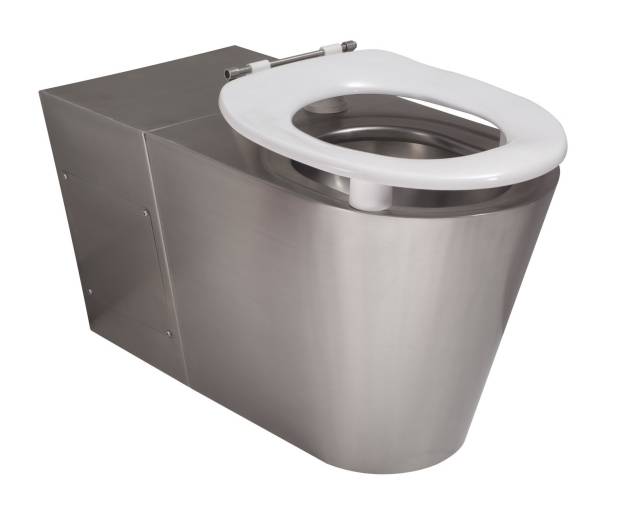

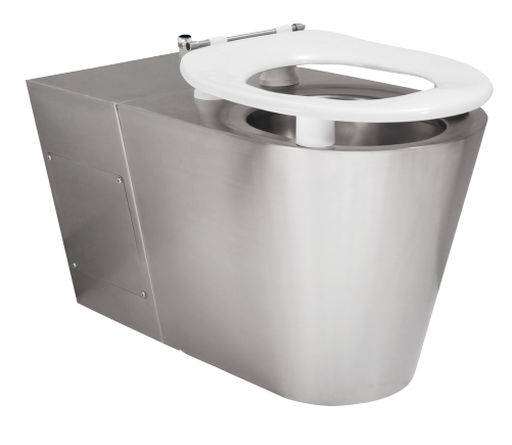

Floor standing disabled persons WC pan, manufactured from grade 1.4301 (304) stainless steel - satin polish finish, material thickness of 1.5 mm for the pan and shroud with a stainless steel P trap 102 mm o/d, supplied complete with Multikwik® connector. A flush bend and 90° plastic bend are provided for the cistern downpipe connection. Rear mounting plate with four stainless steel bolts supplied, for mounting onto duct wall. The front of the WC is fixed to the floor using a joggle strip. Pipe fixing is achieved by using the side access panel provided. The WC is supplied with a disabled person’s white plastic seat. WC supplied with hole for downpipe. WC without hole can be supplied on request.

General information

Finish

satin finished

Material

1.4301 Chrome Nickel steel V2A

WarrantyDescription

5 years

Uniclass 2015

Pr_40_20_93_94 WC pansPrimary

CAWS

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

Specification data - WC pans

Product Reference

(G21743N) 205.0000.017

For surface mounted cistern.

(G21743NT) 205.0000.018

For duct fitted cistern.

Installation frame

Not required

(AQFX0007) 211.0000.001

Installation frame for disabled WC with cistern.

Flushing plate

(AQUA557) 209.0000.012

Single flush.

Standard product features

Size:

360 x 750 x 400 mm.

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2015

1

1.3
Download now from NBS National BIM Library
