FLOOR and more® power YP 44 ST - Dry Hollow Floor System

Name: FLOOR and more® power YP 44 ST - Dry Hollow Floor System
Brand: Lindner Group
SKU: iEz5ZyonfoTVCpuUYmk8bn

Verified by manufacturer 4 days ago

Lindner Group

Product certifications:

Cradle to Cradle Certified
Certificate type
FIS Acoustic Verification Scheme
Certificate type
EPD
Certificate type

Dry hollow floor system FLOOR and more® power developed especially for heavy-duty areas.

Jump to:

020 8246 6236 Website

Application

Special panel composition.
Reinforced hollow floor pedestals.
No reinforcement profiles necessary.
Driveable with heavy motorised lifting equipment.

Description

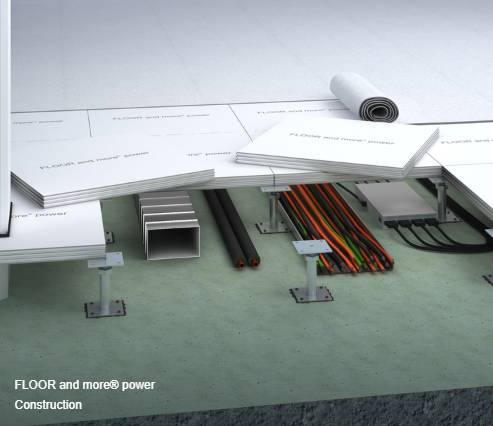

The dry hollow floor system FLOOR and more® power was developed especially for heavy-duty areas. The hollow floor panels type power consist of fibre- reinforced calcium sulphate with optimized panel mixture and a steel sheet on the lower side.

The gluing of the FLOOR and more® panels is made with a special tongue and grooving at the edges of the panels which are forming a closed load bearing layer. The substructure consists of height-adjustable zinc-coated steel pedestals from Lindner's own production which form the necessary cavity for installations.

Features and benefits:

Special panel composition.
Reinforced hollow floor pedestals.
No reinforcement profiles necessary.
Driveable with heavy motorized lifting equipment.

General information

Color	White
Finish	Other
Material	Calcium sulphate
Shape	Square
Length	600 mm
Width	600 mm
Height	44.5 mm
Warranty description	25 year Manufacturer guidance up to 25 years, subject to confirmation

Uniclass	Ss_30_20_70_37 Hollow floor systemsPrimary
CAWS	K41/130 Raised access floor K41/130 Proprietary raised access floor

SKU Code	FLOOR and more® power YP 44 ST

Specification data - Hollow floor systems

Classification data
System performance	To BS EN 13213.
Subfloor preparation	Guidance for specification option: Indication: The subfloor has to be dry, level, solid as well as free of cracks, crates or chemical substances (grease, oil). The overall drying has to be insofar as that no considerable shrinking has to be expected anymore. The subfloor has to be sufficiently resistant to abrasion. Any floated up layers of fine mortar or loosely adherent parts must be removed before installation. The manufacturer recommends sealing the subfloor with a sealing or a similar material with air-conducting floor systems. Please see the respective documents of the manufacturer for information on the processing. Safety data sheet has to be considered. Manufacturer guidance Insert requirements or omit. See System accessories for related options.
Support structure type	Height-adjustable zinc-coated steel pedestals. Guidance for specification option: Standard pedestal height 30–2000 mm. Pedestal grid 600 x 600 mm.
Pedestal fixings	Manufacturer's standard.
Hollow floor surface	FLOOR and more® power YP 44 ST x P/B. Guidance for specification option: Weight 83 kg/m². Panel thickness 44.5 mm.
Barriers in floor void	-
Fire barriers	- Manufacturer guidance Insert requirements or omit.
Acoustic barriers	- Manufacturer guidance Insert requirements or omit.
Plenum barriers	- Manufacturer guidance Insert requirements or omit.
Samples required	Product samples on request. Guidance for specification option: Samples available within the UK, consult manufacturer for details.
System accessories	Pedestal glue. Wall connection tape / Perimeter insulation tape FLOOR and more®. Hollow floor pedestals. Installation glue. Locking glue. Subfloor sealant. Edge sealant. Other. Guidance for specification option: Consult manufacturer for options and insert requirements. None.
Weighted sound reduction index, Rw	To ISO 10140-2, 62 dB Rw.
Load	To EN 13213, Class 6.
Breaking load	Point load 25 x 25 mm: To EN 13213, 20 kN (40 kN). Point load 50 x 50 mm: To EN 13213, 24 kN (48 kN).
Reaction to fire	To EN 13501-1, A1 (non-combustible). Manufacturer guidance Reaction to fire performance of the carrier panel.
Fire performance	To DIN 4102-2, F30.

Sustainability data

Contains Red List materials	No
Country of material origin	Germany
Country of product manufacture	Germany
Manufacturing plant location	94424 Arnstorf, Germany
Material	Calcium sulphate
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Certified
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/unit) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 1.32
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	100 %
Expected Life	Lifetime
