FLOOR and more® G 40 x L / D - Hollow Floor with T&G Panels

Verified by manufacturer 5 days ago

Lindner Group Third party certifications:
  • EPD

    EPD

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • EnMS ISO 50001

    EnMS ISO 50001

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

Calcium sulphate hollow floor with tongued and grooved panels glued together.

Jump to:
BOS
020 8246 6333 Website

Application

  • Shops.
  • Museums, exhibitions, libraries.
  • Hotels and living rooms.
  • Industrial and working rooms.
  • Warehouses.

Description

Calcium sulphate hollow floor with tongued and grooved panels glued together.


System comprises:

  • Panel: Highly compressed calcium sulphate panel, edge connection via tongue and groove, glued.

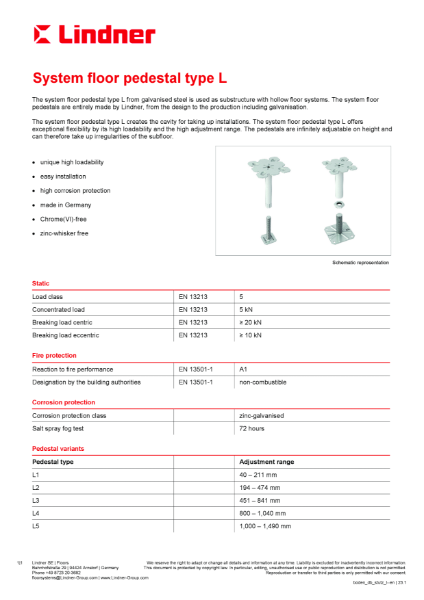

  • Heavy-duty pedestal: Precisely height adjustable, manufactured from galvanized steel, precision threaded rod.
  • Gluing: Placing of pedestal base in adhesive, panel glued to pedestal head.
  • Wall connection: Pre-compressed foam tape, as sound barrier and to absorb horizontal movements.
  • Earthquake safety: International Building Code (IBC) available in A–F.
  • Environmental product declaration according to ISO 14021.


Suitable floor coverings:

  • Linoleum, rubber, PVC.
  • Tufting, velour, needlefelt.
  • Parquet.
  • Ceramic, natural and artificial stone.

General information

Color

White

Finish

Other

Material

Calcium sulphate

Shape

Square

Length

600 mm

Width

600 mm

Height

40 mm

Warranty description

25 year

Uniclass

Ss_30_20_70_70 Raised access floor systemsPrimary

CAWS

K41/130 Raised access floor

K41/130 Raised access floor

Product range

Hollow Floors

Specification data - Raised access floor systems

Subfloor preparation

Guidance for specification option:

Insert requirements or omit.

Support structure type

Height-adjustable zinc-coated steel pedestals.

Guidance for specification option:

  • Heavy-duty access floor pedestals, 600 mm spacing.
  • Pedestal height: 40–2000 mm.
  • Pedestal grid: 600 x 600 mm.
  • Finished floor heights available: 40–840 mm.

Pedestal fixings

Pedestal glue.

Guidance for specification option:

  • Gluing: Placing of pedestal base in adhesive, panel glued to pedestal head.
  • Consult manufacturer for options and insert requirements to suit substrate.

Raised access floor surface

FLOOR and more® G 40 x L / D raised access floor panels, 600 x 600 x 40 mm, glued.

Guidance for specification option:

  • Weight: approx. 55 kg/m².
  • Panel thickness: 40 mm.
  • Gluing: Placing of pedestal base in adhesive, panel glued to pedestal head.

Barriers in floor void

-

Fire barriers

Guidance for specification option:

Insert requirements or omit.

Acoustic barriers

Guidance for specification option:

Insert requirements or omit.

Plenum barriers

Guidance for specification option:

Insert requirements or omit.

System accessories

Guidance for specification option:

Consult manufacturer for options and insert requirements, or omit.

Integral accessories

Pre-stressed foam tape wall connections.

Guidance for specification option:

To act as a sound barrier and to absorb horizontal movements.

Weighted sound reduction index, Rw

64 dB.

Load

To EN 13213, Class 5.

Breaking load

To EN 13213, 5 (5 kN).

Reaction to fire

To BS EN 13501-1, A1 (non-combustible).

Manufacturer guidance

Reaction to fire performance of the carrier panel.

Fire performance

To DIN 4102-2 (acc. to AbP), F30.
To EN 13501-2 (acc. to classification report), REI30, REI60.

Manufacturer guidance

Fire resistance performance of the system.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Recyclability

yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %
