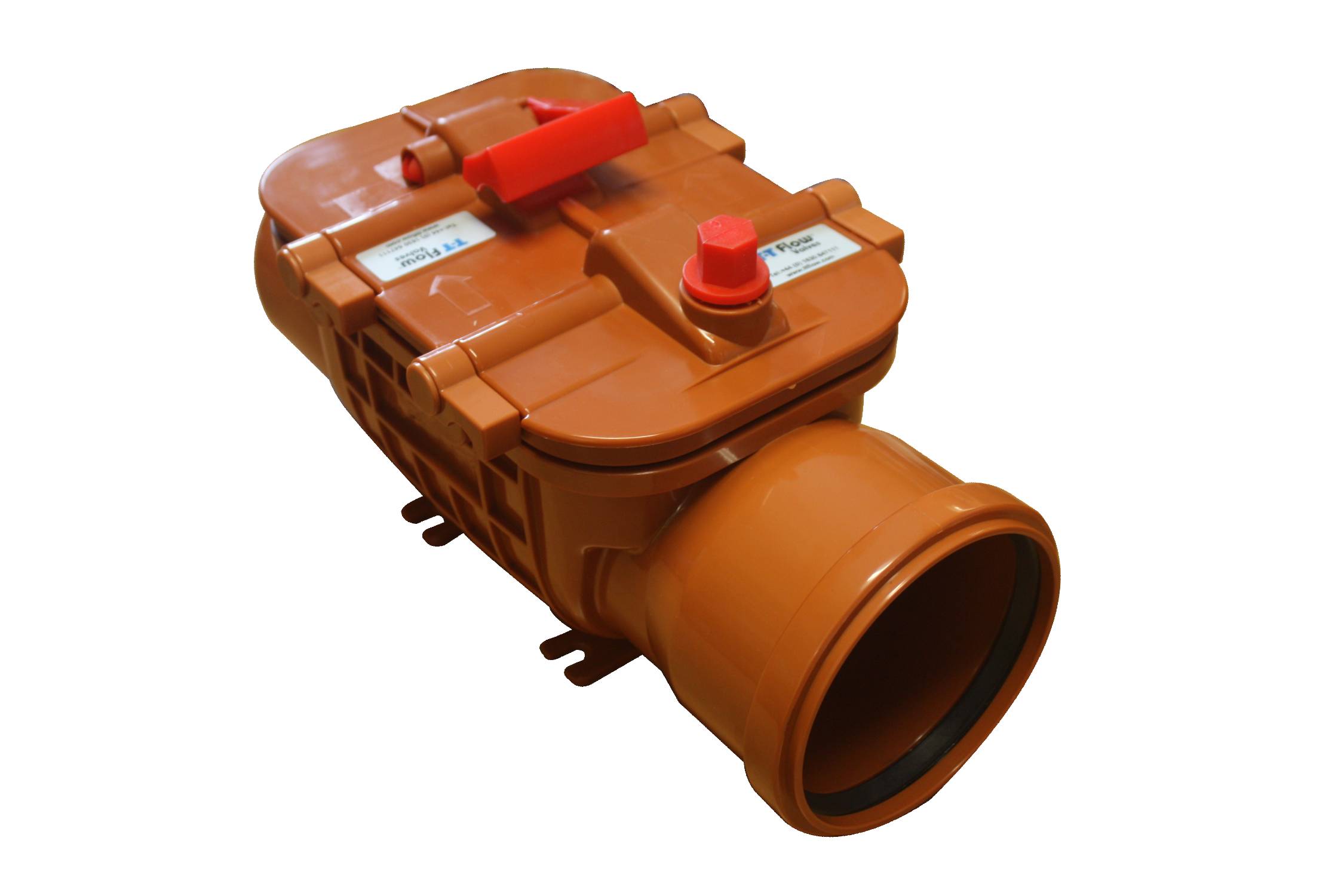

Floaway® Valve, Double

Application

Back flow prevention valve for use within both domestic and commercial applications to prevent reverse flow of sewage and wastewater from the drainage network. Applications include:

  • Low lying areas susceptible to flooding;
  • Protection from undersized sewers at high flow rates;
  • Pumping stations;
  • Rodent ingress reduction.

Description

Anti-flood valves providing an efficient solution to preventing the damaging effects of backflow.


Backflow occurs when the drainage system becomes overwhelmed by storm water during a flood event and anti-flood valve is used to stop reverse flow of sewage and wastewater from the drainage network.


Features and benefits:

  • European standard EN 13564-1:2002.
  • Conforms to Building Regulation Part H1 Section 2.8 - 2.12.
  • Double-reinforced flap (one lockable).
  • Lightweight and robust injection-moulded acrylonitrile butadiene styrene (ABS) body.
  • Impact resistant.
  • Stainless steel internal flap.
  • Large inspection cover.
  • Easy installation.
  • Range of sizes, DN 110–315.


Also available in a single flap version (specified separately).

General information

Color

Orange

RAL 2003.

Material

ABS

Size

355 x 188.8 x 168.4 mm

Uniclass 2015

Pr_65_54_24_04 Anti-flood valvesPrimary

CAWS

R12/355 Antiflood valves

Specification data - Anti-flood valves Enhanced data

Standard

To EN 13564-1:2002.

Form

For building into inspection chamber or manhole.

Material

ABS.

Body: ABS.

Flaps: ABS/ stainless steel EN 10088 1.4401.

Gasket: Nitrile.

Connections

To DIN 19534.

DN 110.

Overall length: 355 mm; overall height: 188.8 mm.

Weight: 1.2 kg.

Consult manufacturer's literature for further details.
