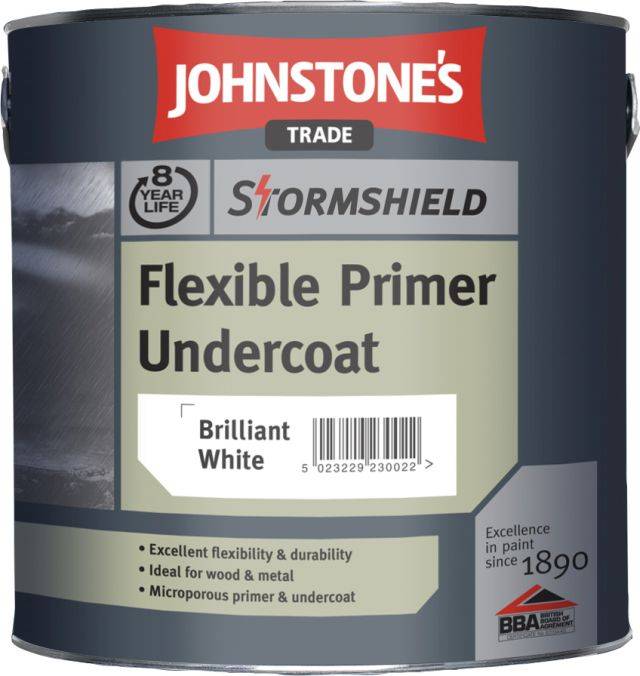

Flexible Primer Undercoat (Stormshield)
Verified by manufacturer 4 months ago
BBA Agrément Certificate
Certificate type
Microporous, primer and undercoat.
Application
Exterior woodwork and suitably primed metal surfaces.
Description
Stormshield Flexible Primer Undercoat is a dual purpose product – flexible primer and undercoat combined; providing longer lasting protection for exterior woodwork. It retains its flexibility longer than traditional undercoats and is designed specifically for use in conjunction with Johnstone’s Stormshield Flexible Gloss and Satin.
Achieves an eight year life expectancy when applied in accordance with a project specific Johnstone’s Technical Specification and BS 6150, 2006 Code of Practice for Painting Buildings.
Microporous and retains flexibility longer than traditional undercoats thereby increasing durability.
Features and benefits:
- Eight years life.
- Retains flexibility.
- Solvent Based.
General information
Color | Guidance for specification option: 16,000 colours. Refer to PPG Voice of Colour palette |
Finish | Matt |
Material | Solvent-based |
Warranty description | Guidance for specification option: Eight years life if installed to manufacturers guidance to BS 6150, 2006 Code of Practice for Painting Buildings. |
Uniclass | |
CAWS | M60/12 Gloss paint M60/130 Gloss paint |
Specification data - Primer-undercoats
Product Reference | Johnstone's Trade Flexible Primer Undercoat (Stormshield). |
Colour | Refer to the PPG Voice of Colour palette. |
Type | Solvent based. |
Coverage | 16–18 m²/L, depending on the nature and porosity of the surface being painted. |
Drying time | Tough dry in 4-6 hours. Recoatable after 16–24 hours. |
Film thickness | Dry: 53 μm. Wet: 85 μm. |
Volume solids | 63%. |
VOC content | High (25-50%). |
Application method | Brush or roller. |
Third-party certification | BBA Agrément Certificate 97/3440. |
Capacity | 1 L. 2.5 L. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
BBA Agrément Certificate
Johnstone's Trade Flexible Exterior Gloss System 97/3440.
Literature
Johnstone's Voice of Colour - Colour Card
