Flat Roof Window Type C

Verified by manufacturer 2 months ago

DXC-C P2: Anti-burglary double glazed U= 1.2 W/m²K

Fakro GB Ltd Variant:

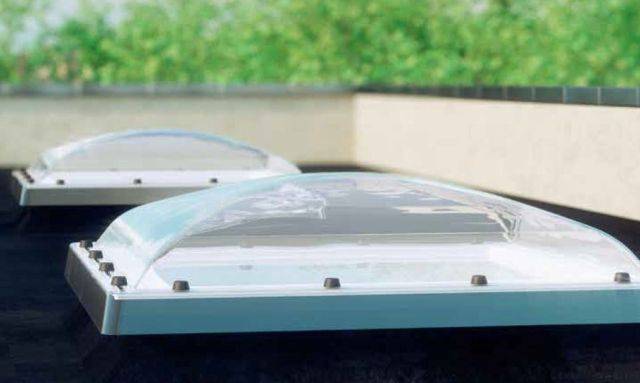

Flat roof window with dome.

Jump to:
+44 (0)1283 554755 Website

Application

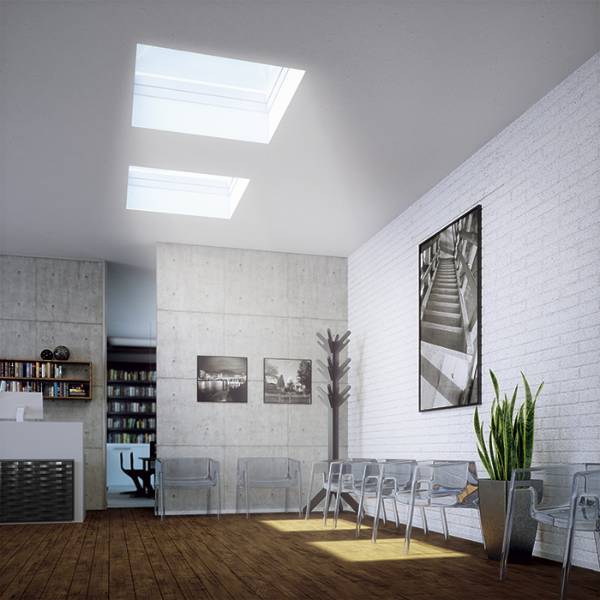

Applicable for buildings in residential and commercial sector. Suitable for roof pitches between 2-15°.

Description

Fakro type C flat roof window is equipped with a double glazed unit with laminated internal glass which is anti-burglary P2A class as standard. Should the pane crack, shards of glass do not pose a danger but remain on the laminate film.


P2 glazing units have an innovative and patent-pending dome installation systems which increase the anti-burglary resistance. The dome is made of durable polycarbonate. It is characterized by high resistance to impacts and adverse weather conditions such as rain or hail. Special coatings on the outer and inner surface of the dome protect it against UV radiation.


The structure of the window enables installation of internal as well as external accessories. A patent-pending system of profiles enables the installation of the awning blind under the dome of the flat roof window, thus protecting the blind against damage as a result of strong winds etc.


Features and benefits:

  • Glazing unit.
  • Polycarbonate dome.
  • Frame manufactured from multi-chamber PVC profiles.
  • High resistance against acids.
  • Very low moisture absorption.
  • Profiles are filled inside with insulating material, improving the energy saving parameters of the product.
  • The specially profiled covering material under the frame drip cap facilitates the finishing of the window connection with the roofing material.

General information

Color

White

Finish

Powder-coated

Material

Polyvinyl chloride (PVC)

Glass

Shape

Rectangle

Square

Size

600 x 600 mm

600 x 900 mm

700 x 700 mm

800 x 800 mm

900 x 900 mm

Show more

Warranty description

Ten year

Guidance for specification option:

For windows.


20 year

Guidance for specification option:

For glazing.

Uniclass

Pr_30_59_98_92 Unplasticized polyvinyl chloride (PVC-U) window unitsPrimary

CAWS

L10/45 Rooflights

L10/460 Rooflights

Specification data - Unplasticized polyvinyl chloride (PVC-U) window units

Dimensions and configurations

600 x 600 mm.

Guidance for specification option:

  • 0.23.
  • 01K.

600 x 900 mm.

Guidance for specification option:

  • 0.37.
  • 02K.

700 x 700 mm.

Guidance for specification option:

  • 0.33.
  • 03K.

800 x 800 mm.

Guidance for specification option:

  • 0.46.
  • 04K.

900 x 900 mm.

Guidance for specification option:

  • 0.6.
  • 05K.

900 x 1200 mm.

Guidance for specification option:

  • 0.83.
  • 06K.

1000 x 1000 mm.

Guidance for specification option:

  • 0.77.
  • 07K.

1000 x 1500 mm.

Guidance for specification option:

  • 1.21.
  • 10K.

1200 x 1200 mm.

Guidance for specification option:

  • 1.16.
  • 08K.

1200 x 2200 mm.

Guidance for specification option:

  • 2.23.
  • 11K.

1400 x 1400 mm.

Guidance for specification option:

  • 1.63.
  • 09K.

Manufacturer guidance

  • Effective glazed area [m²]:
  • Size symbol:

Product performance

-

Thermal

-

Whole window U-value

1.2 W/m²K.

Frame

-

Colour and texture

White (RAL 9010).

Manufacturer guidance

Internal window frame colour:

Glazing or infill

-

Standard

To EN 12567-2.

Hardware

Not required.

ZSD universal telescopic rod.

Guidance for specification option:

The ZSD universal telescopic rod is available for opening and closing flat roof windows and blinds.

Operation

-

Type

DEC.

Guidance for specification option:

Electrically opened.

DMC.

Guidance for specification option:

Manually opened.

DXC.

Guidance for specification option:

Non-opening.

Fixing features

Not required.

XRD mounting base.

Guidance for specification option:

Can be mounted on an additional XRD base with a height of 150 mm, which raises the window and allows its installation in green or living roofs.

Glazing units

Anti-burglary double glazed.

Window code

DXC-C P2.

Internal accessories

Not required.

AJP.

Guidance for specification option:

Venetian blind.

Insert RAL colour reference code.

AJP-Z Wave.

Guidance for specification option:

Venetian blind with electronic operation.

Insert RAL colour reference code.

APS.

Guidance for specification option:

Pleated blind.

ARF.

Guidance for specification option:

Blackout blind.

Insert RAL colour reference code.

Show more

External accessories

Not required.

ARZ-H.

Guidance for specification option:

External roller shutter with manual operation.

Insert RAL colour reference code.

ARZ Solar.

Guidance for specification option:

External roller shutter with electronic operation from solar charged battery.

Insert RAL colour reference code.

ARZ-Z Wave.

Guidance for specification option:

External roller shutter with electronic operation.

Insert RAL colour reference code.
